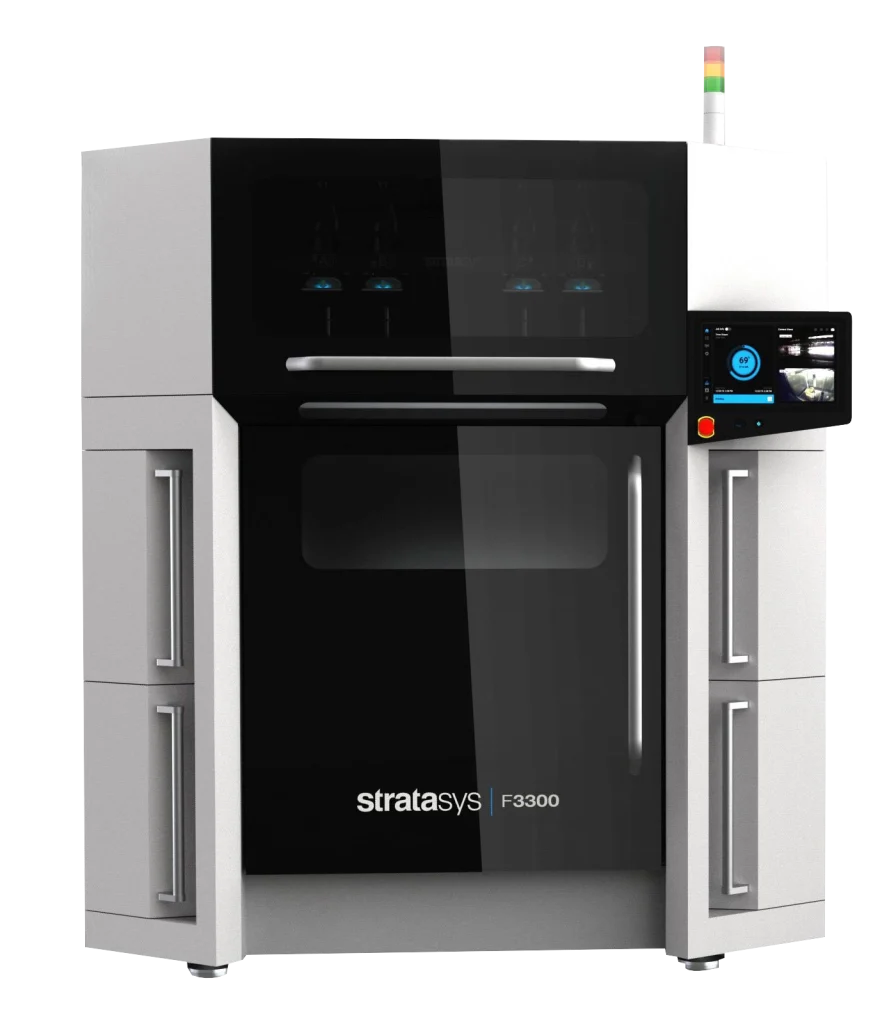

Industrial FDM 3D Printer
Minimal labor, lower cost, faster throughput.
Lower your production costs and print in half the time compared to legacy fused deposition 3D printers.
The Stratasys F3300™ embodies advanced FDM® technology to minimize labor and maximize economics.
Stratasys F3300 3D Printer Features
Large Build Size
Faster Print Speeds
amount of time. Factored against the printer’s amortized cost, the more parts you print per unit of time, the lower their cost.
4 FDM Production Materials
The Stratasys F900 can print ASA, PC (Polycarbonate), FDM® Nylon 12CF, and ULTEM™ 9085 resin
High Part Yield
Larger Material Spools
4100 cc (250 ci) material spools reduce reloading frequency, saving critical time in a production environment.
Multi-resolution 3D Printing
Multiple extruders allow printing with small and large-width bead thicknesses on the same print job. Thick beads provide faster buildup where aesthetics are not critical, while smaller bead widths are used in areas that require a finer surface finish.
Multiple Extruders and Automatic Tool Changer
Integrated Material Dryers
Eliminate poor quality and failed parts because of material moisture. Onboard dryers that combine dry air and temperature keep materials at the proper humidity levels to maintain optimal mechanical properties. This includes the ability to set a drying prescription that the onboard dryer will execute to establish the proper material desiccation.
Reduced Labor
The F3300 incorporates features like autocalibration that eliminate or reduce the labor required to operate the printer. This takes cost out of your operation, lowering your cost to produce parts.
Stratasys F3300 Benefits
Easy-to-use operation
State-of-the-art technology doesn’t have to come with a steep learning curve. Besides embodying the latest FDM technology advancements, the F3300 includes intentional features that make it simple and straightforward to operate.
At a time when skilled labor is increasingly scarce, the F3300 is purposely designed to allow virtually anyone to use it with minimal instruction.
Double your throughput
The F3300 employs new technology that provides a step change in print speed compared to other FDM printers. These advancements let you print at rates up to twice what current high-production FDM systems are capable of.
This ultimately means you can produce 1.5X to 2X the number of parts in a given timespan, depending on part geometry.
Materials available for the Stratasys F3300
ASA
ASA 3D printing material is ideal for parts that are going to be used outdoors. The printed parts are consistently high-quality, with exceptional UV stability.
FDM Nylon 12
FDM Nylon 12 material is ideal for repetitive snap fits, high fatigue resistance, strong chemical resistance and press (friction) fit inserts.
PC (Polycarbonate)
PC 3D printing material offers accuracy, durability and stability, creating strong parts that withstand functional testing.
ULTEM 9085
ULTEM 9085 resin is a flame-retardant high-performance thermoplastic for digital manufacturing and rapid prototyping.
Stratasys F3300 Specifications
| Feature | Specification |
|---|---|
| Model Material | ASA, PC (Polycarbonate), FDM® Nylon 12CF, ULTEM™ 9085 resin |
| Accuracy | +/- .067 mm or +/- .0015 mm per mm, whichever is greater (+/- .0026 in. or +/-.0015 in. per in., whichever is greater). Z part accuracy includes an additional tolerance of -0.000/+ slice height. |
| Build Envelope (XxYxZ) | 600 x 600 x 800 mm (23.6 x 23.6 x 31.5 in.) |
| Machine Dimensions | 203.2 x 162.6 x 236.2 cm (80 x 64 x 93 in.) |
| Machine Weight | 1360 kg (3000 lbs.) |
Industries
Stratasys 3D Printers are used in a wide variety of industry applications
Reverse Engineering
- Product design
- Customization
- 3D documentation
Industrial design and manufacturing
- Reverse engineering
- Quality control
- Rapid prototyping
- Aerospace
Medical and Life Sciences
- Orthopedics
- Prosthetics
- Plastic surgery
- Custom wheelchairs
Science and education
- Research
- Training
- Online museums
Art and design
- Heritage preservation
- Architecture
- CGI
- Fashion

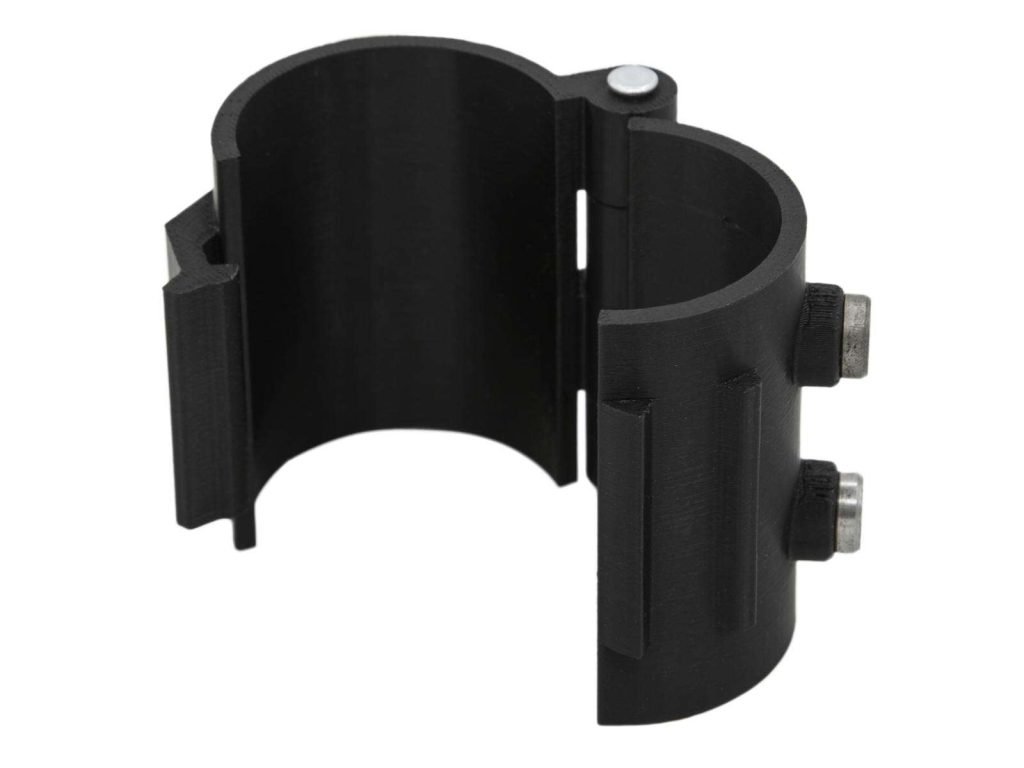

Example Parts
Example Fused Deposition Modeling (FDM) prototypes and production parts in a wide range of materials and colors. Pick on the images below to enlarge:
Fused Deposition Modeling (FDM) Technology
Advantages of parts built with a Stratasys FDM Machine
Tough long-lasting parts
High-performance thermoplastics combined with precision extrusion processes let us build strong, long-lasting and dimensionally stable parts;
TriMech production grade FDM solutions provide clients with the best accuracy, repeatability, and material selection of any 3D printing technology.
Used commonly in aerospace, automotive and transportation, manufacturing, and more, this process is helping clients do more, do it better, and do it for less.
Meet production demands
TriMech FDM production systems are as versatile and durable as the parts they produce.
With the largest full-convection build envelopes and material capacities in their class, we can provide longer, uninterrupted build times, bigger parts and higher quantities than other additive manufacturing service providers.
In combination with our material portfolio, we are challenging the limits of what can be done with FDM technology.
Gain new possibilities
TriMech’s FDM specialists will help to streamline your business processes from design through manufacturing, eliminating the need for physical inventories and moving beyond the limitations of traditional manufacturing, whilst offering unparalleled efficiency, design freedom, and production agility.
Leverage the best solution on the market without the capital expense of in-house equipment: we deliver a tailored service, combining 20+ years of experience with industry-leading FDM technologies. Regardless of industry, we’ll help optimize timelines, costs, and approach.
