ZEISS METROTOM 1

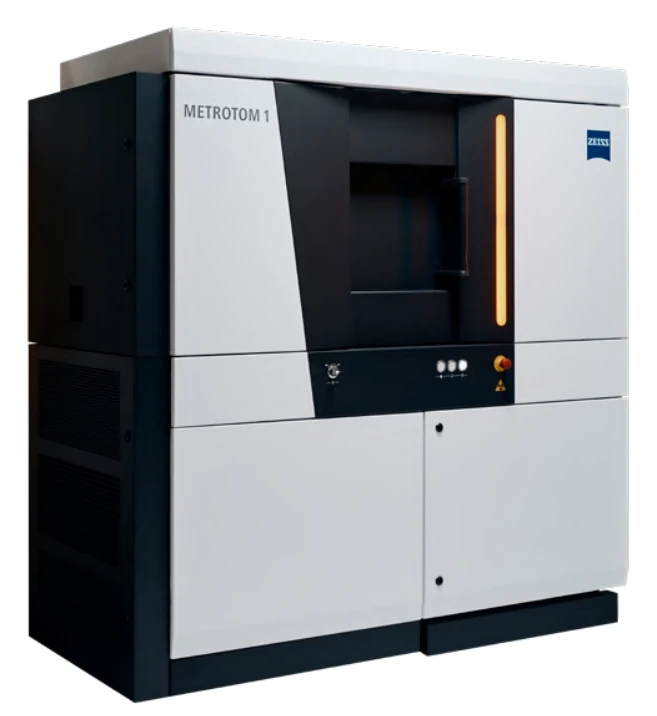

The ZEISS METROTOM 1 is designed to capture precise 3D data without the need for part preparation. Utilizing advanced computed tomography (CT) technology, it allows you to scan parts non-destructively and explore their internal features.
With the ability to measure, analyse, and inspect hidden defects and internal structures, the METROTOM 1, in combination with ZEISS Inspect software, takes your quality control process to a whole new level of simplicity and efficiency. Perfect for product design, 3D print defect detection, medical devices, tool and mould making.
A compact and easy-to-operate system to x-ray your parts
The simple-to-operate system enables various users to start the measuring process and capture precise data. Characterized by its compact dimensions, METROTOM 1 fits easily into your space. Get started with your inhouse measurements and inspections in just one step by pushing the button. To keep your maintenance low, the smart and compact solution comes with a closed x-ray tube.
The ZEISS METROTOM 1 CT scanner includes:
- Calibration object – For a recalibration of the system anytime – no on-site service required.
- Active temperature control – To make sure system and part are always at the same stable temperature.
- Continuous scan mode – A continuous rotation of the part will improve measurement times significantly.
- Operation station – The package contains a powerful PC for system operation, reconstruction and inspection.
- A measuring volume of 165 x 140 mm – which can be fine tuned to optimize scanning times.
- ZEISS Inspect – A continuous software from measurement to inspection reports.
- 2.5k detector developed by ZEISS – ZEISS METROTOM 1 comes with a 2.5k x 2.5k detector.
- 160 kV X-ray source – For measurements of plastic parts and light weight metals.
- Temperature controlled cabinet – Fully protected and secure air conditioning.
- 360 Degree Automatic Rotation Table – 5kg part capacity
Multiple part scanning

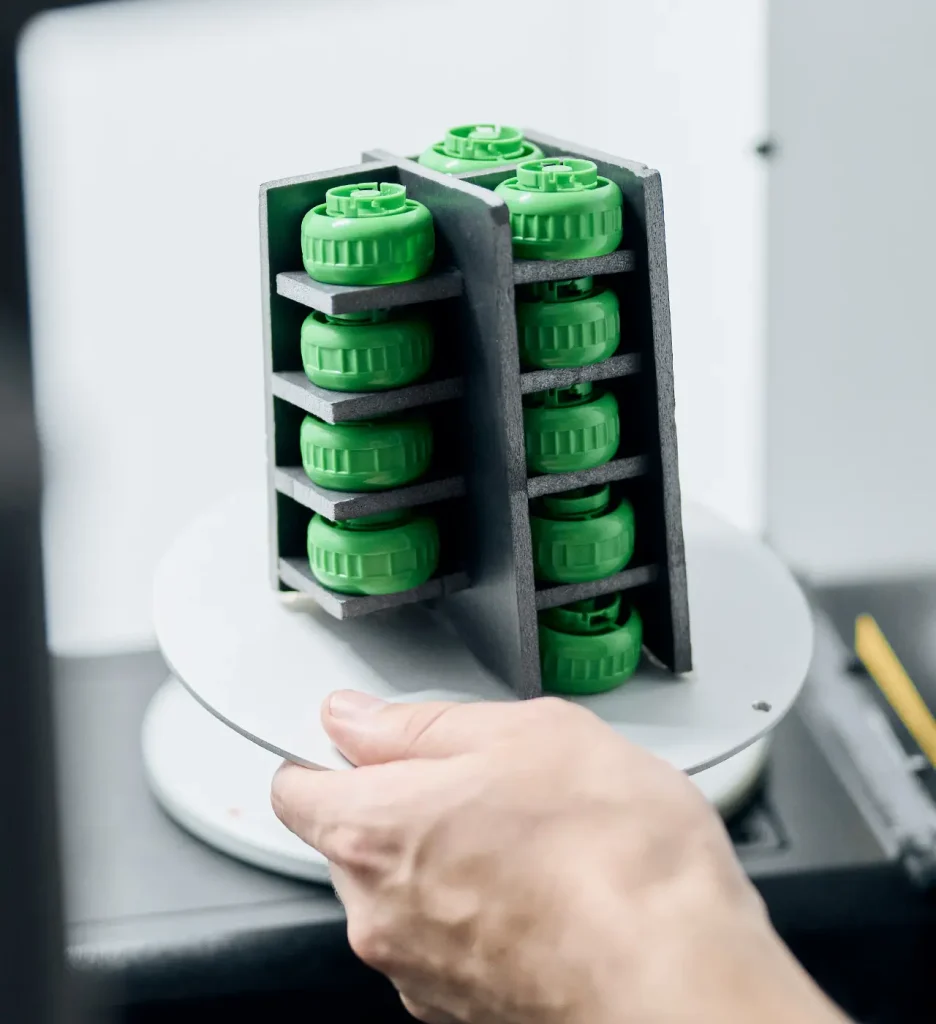

Measuring multiple parts at the same time is one of the most efficient features of METROTOM 1. The formula is simple: high quantities with optimum use of the measuring volume. The result: faster scanning time per part without compromising on quality. ZEISS INSPECT automatically separates and evaluates the individual parts so that results are quickly available as a report.
Check internal structures and defects

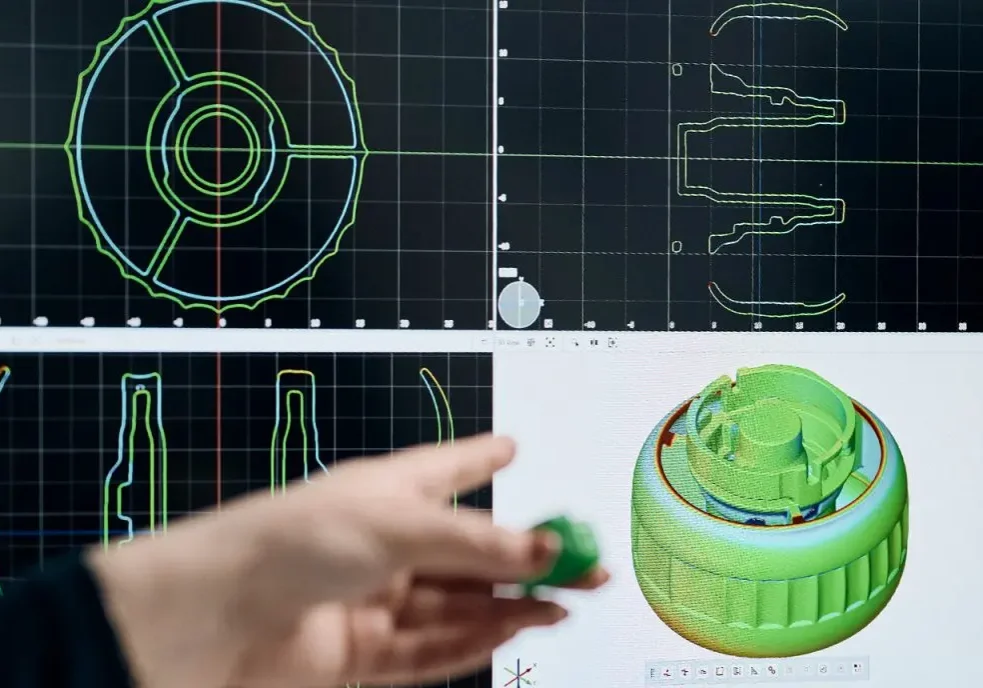

The METROTOM 1 with ZEISS INSPECT guides you step-by-step through the measurement process. With volume visualization and inspection of your scan data, you can discover all dimensions of your parts, even the hidden ones. By scanning all internal and external structures, parts can be easily reversed.
Easy and efficient. With just one scan. METROTOM 1 supports you with:
- 3D scanning of small to medium components
- Accurate measurement
- Quality inspection and assurance
- Deep analysis of rejects
- Checking components against their CAD
ZEISS METROTOM 1 3D Scanner Benefits
ZEISS METROTOM 1 is your fast way forward: Capture precise 3D data without any part preparation. Powered with computed tomography technology, you can scan parts non-destructively and look inside. Measure, analyze and inspect hidden defects and inner structures. In combination with the software ZEISS INSPECT, it reaches a new dimension to simplify your quality control
A compact and easy-to-operate system to capture the data for your tasks
The simple-to-operate system enables various users to start the measuring process and capture precise data. Characterized by its compact dimensions, METROTOM 1 fits easily into your space. Get started with your inhouse measurements and inspections in just one step by pushing the button. To keep your maintenance low, the smart and compact solution comes with a closed x-ray tube.
Capture 3D data without part preparation

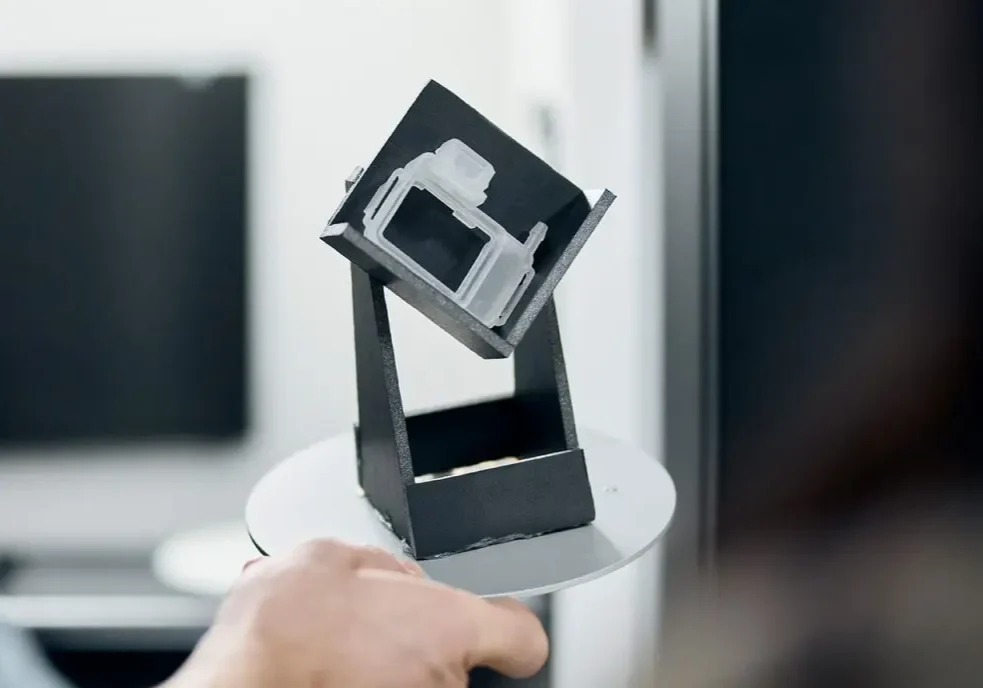

With METROTOM 1 you can inspect internal structures and defects using non-destructive scanning. No part preparation is needed before starting the measurement process. While you scan the next part, you can inspect or reverse engineer the previous one.
A smart all-in-one concept
Voltage, power, exposure time and number of steps are some of the important measurement parameters for computed tomography (CT).
Operated with ZEISS INSPECT, ZEISS METROTOM 1 comes with an automated parameter determination for these values. The software provides you with optimal starting values to reduce the complexity of setting up your scan. METROTOM 1 relies on simple operation, fast acquisition, and intuitive evaluation functions. An all-in-one concept you can rely on.
Active temperature balancing for precise results
METROTOM 1 is developed for many conditions. In addition to its robust design, it is also protected against internal temperature fluctuations. The active cooling system keeps your system running: It ensures the exact same temperature inside and outside of the system to prevent any thermal expansion of your parts. METROTOM 1 is a stable, heavy-duty system filled with cutting-edge technology.
- Nominal-actual CAD-to-part comparison
- Dimensional measurements
- Section inspection at any depth of the part
- Analyse wall thickness distribution
- Functional dimensioning for first article
- Ensure correct first part by scanning multiple samples produced with different parameters
- Reducing the number of iterations in your process
- Monitor production process with fast inspection of multiple parts
- Actual capture following tool approval
- Warpage compensation of component
- Examine even high demanding products like transparent objects and soft polymers
- Functional and error analysis of assemblies
- Non-destructive material defect analysis e.g. blowholes, pores or cracks
- Reverse engineering of existing parts or part geometries
- Validate engineered designs
ZEISS Metrotom 1 Specifications
| Feature | Specification |
|---|---|
| X-ray source | 160 kV |
| X-ray detector (pixels) | 2.5 k (2,500 x 2,500) |
| Measuring volume | 165 x 140 mm |
| Metrology specification (MPE SD) | 5 µm +L/100 |
| Dimensions | 1750 mm (W) x 1820 mm (H) x 870 mm (D) |
| Weight | 2100 kg |
| Software | ZEISS INSPECT |
| Voxelsize | down to 32,6 µm |
ZEISS Inspect Software
Revolutionary 3D scanning and data processing software
The scanner operates with ZEISS Inspect, the well-established standard in 3D metrology. Powerful mesh editing functions make it an ideal tool for 3D printing and reverse engineering.
What’s more, you can effortlessly handle simple and complex tasks throughout your inspection process. A software to simplify and speed up your workflow.
Recommended Laptop Hardware - Dell Pro Max 18 Plus
- Processor: Intel® Core™ Ultra 9 285HX 24 core, Turbo Boost up to 5.5GHz (55W)
- Chassis: 18″ QHD+ 2560×1600, 120Hz, 500nits, 100% DCI-P3 screen, 8MP IR Camera
- Operating System: Windows 11 Professional 64-bit
- Memory: 64GB: 2x32GB, DDR5, 6400 MT/s, CSoDIMM RAM
- Graphics Card: NVIDIA RTX PRO 4000 Blackwell 16GB GDDR7 Graphics
- Storage: 2TB Performance SSD Gen5, SED Ready
- Support: 3 years of Dell ProSupport and next business day on-site service
Latest 3D Scanning Resources
Meet the Experts: How TriMech Helps Engineers Solve Real-World Reverse Engineering Challenges
What is Reverse Engineering? Learn everything you need to know about the scan to CAD workflow in this webinar.
Accelerating Race Ready Engineering Through Digital Twins and Advanced Manufacturing
How Capone Motorsports cut design cycles in half and unlocked new performance potential.
How Sam Hunt Racing Gained Time, Control, and Performance Through In‑House Metrology
A young and punchy NASCAR team builds engineering independence and protects on‑track performance with TriMech and ZEISS.
TriMech’s Additive Solutions Director Discusses Protecting and Maximizing ROI for Clients Who Purchase 3D Printers
Kelly Judson has spent his entire career connecting people to the right technology. Today, as Additive Solutions Director for TriMech, his team supports clients before…
How 3D Scanning Drives Sam Hunt Racing Performance to New Heights
As Sam Hunt Racing prepares for the 2026 season, they’re adding a 3D scanning department to help crew chiefs, engineers, and mechanics better understand each…
Science in the Shop Leads to Better Performance on the Racetrack
Urethane casting project illustrates a variety of TriMech technologies, services, and skills Tim Amato is a Cast Urethane Technician at TriMech’s Advanced Manufacturing location in Connecticut. He’s…
Industries we work with
TriMech Advanced Manufacturing is used in a wide variety of industries
Architectural Design & Construction
- Model making
- Urban planning
- Concepts
High Tech & Consumer Products
- Aesthetic and function testing
- Concepts and prototypes
- Sales and marketing models
Dental, Medical & Life Sciences
- Anatomical models
- Medical devices
- Orthopedics
- Prosthetics
- Surgical planning models
Industrial Products, Mold Tool & Die
- Jigs, fixtures, and assembly tooling
- Injection molding
- Silicone molding
- Sand and investment casting
- Thermoforming
More 3D Scanners
Artec Jet
Capture every detail at speed with Artec Jet, an autonomous LiDAR scanner that uses AI and SLAM-based positioning to map complex infrastructure in record time.
ZEISS ScanPort
Revolutionizing 3-Axis Automation for Flawless Data Capture – Precision at Your Fingertips
Artec Point

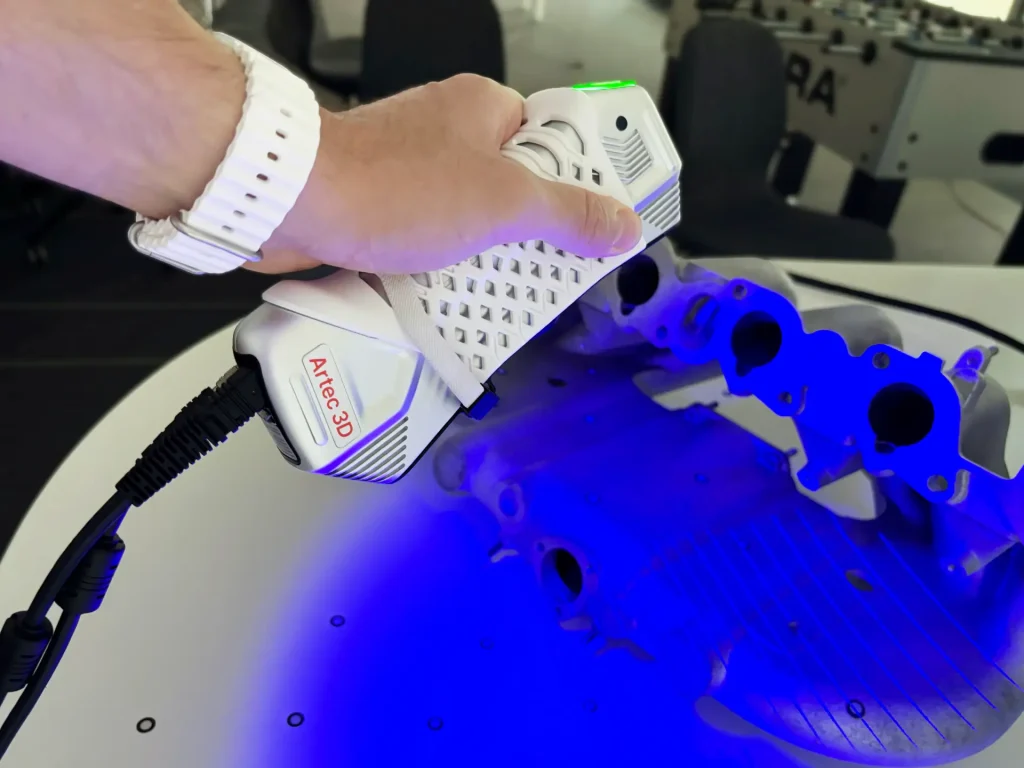

The Artec Point is a target-based 3D laser scanner that puts ISO-certified, metrology-grade 3D scanning in the palm of your hand.
