Bio-compatible (MED610)

PolyJet Transparent Material

MED610 is a transparent, bio-compatible PolyJet™ material medically approved for bodily contact.

The material is designed for both medical and dental applications and is approved for permanent skin contact (more than 30 days) and limited mucosal membrane contact (up to 24 hours).

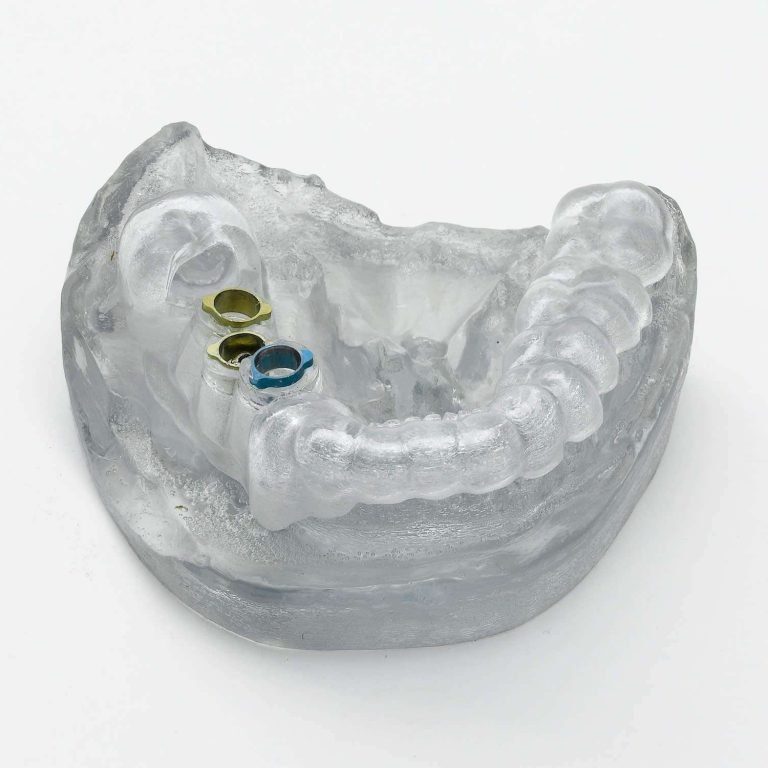

Bio-compatible MED610 dental model

Bio-compatible (MED610) Material Profile

Learn more about the benefits of rubber-like PolyJet 3D printed parts

See how Stratasys is empowering doctors, researchers and medical manufacturers to get products into clinical use faster, develop better therapies and to personalize care better than ever before with 3D printing solutions.

Watch the video to learn about the different applications for 3D printers in the medical industry.

Bio-compatible MED610 Material

Main Uses

Bio-compatible MED625FLX, MED610 and MED620 are ideal for medical and dental applications requiring precise visualization and patient contact. The materials are suitable for over 30 days skin contact and up to 24 hours mucosal membrane contact.

Bio-compatible (MED610) Material Applications

Medical uses

Dental Surgical Guides

Prototyping for medical and dental products

General Prototyping

Bio-compatible (MED610) Material Specification

Properties and testing results for the 3D printing material

TestStandard
CytotoxicityEN ISO 10993-5:2009
IrritationEN ISO 10993-10:2013
Delayed-type hypersensitivityEN ISO 10993-10:2013
GenotoxicityEN ISO 10993-3:2014
Chemical characterizationEN ISO 10993-18:2009
USP Plastic Class VIUSP 34 <88>
PropertyStandard / ProcedureValue
Tensile StrengthD-638-0350 – 65 MPa (7,252 – 9,427 psi)
Elongation at BreakD-638-0510 – 25%
Modulus of ElasticityD-638-042,000 – 3,000 MPa (290.1 – 435.1 ksi)
Flexural StrengthD-790-0375 – 110 MPa (10,878 – 15,954 psi)
Flexural ModulusD-790-042,200 – 3,200 MPa (319.1 – 464.1 ksi)
HDT @ 0.45 MPaD-648-0645 – 50 °C (113 – 122 °F)
HDT @ 1.82 MPaD-648-0745 – 50 J/m (113 – 122 °F)
Izod Notched ImpactD-256-0620 – 30 (0.37 – 0.56 ft-lb/in)
Water AbsorptionD-570-98 24HR1.1 – 1.5%
Tg DMA E52 – 54 °C (126 – 130 °F)
Shore HardnessScale D83 – 86 D
Rockwell Hardness ScaleScale M73 – 76 M
Polymerized DensityASTM D7921.17 – 1.18 (g/cm3) (0.676 – 0.682 oz/in3)
BiocompatibilityprEN ISO 10993-1:2017Skin contact – permanent (>30 days)
Mucous membrane – short term (up to 24 hrs)
Sterilization MethodsGamma sterilization using a dose of 25–50 kGy
Steam sterilization for four (4) minutes at 132 °C (270 °F) with fractionated pre-vacuum
Support Removal TypeWaterJet or soluble

Advantages of PolyJet Technology

Advantages of parts built with a Stratasys PolyJet Machine

Realistic Parts

Stratasys PolyJet 3D Printers are based on proven technology, which creates precise prototypes that set  the standard for finished-product realism.

Their fine resolution makes complex shapes, intricate details  and smooth surfaces possible.

Precise Models

PolyJet 3D Printing works by jetting layers of liquid photopolymer onto a build tray and instantly curing them with UV light.

The fine layers build up to create a precise 3D model or prototype. Models are ready to handle right out of the 3D printer, with no post-curing needed.

Better ideas, easier sell

PolyJet 3D printed models improve communication and collaboration because they produce amazingly  accurate representations of your ideas that you can share with your team and your clients for a faster, more confident buy-in.
