FDM Nylon CF10 (Carbon Fiber)

Production-grade Thermoplastic

FDM® Nylon-CF10 is a strong carbon fiber-filled material that is stiff and chemically resistant. Available on the Stratasys F190™CR and F370®CR 3D printers.

Typical applications include Metal forming dies, Press brakes, End effectors, Soft jaws, Alignment and assembly fixtures, Clamping tools, and Drill guides.

FDM® Nylon-CF10 is a composite material combining a blended nylon polymer with 10% chopped carbon fiber (by weight), enhancing the material’s strength and rigidity.







FDM Nylon CF10 press brake

Example FDM Nylon CF10 Parts

We can produce fixtures, soft jaws, and component parts with composite 3D printing in a fraction of the time and cost it takes to machine a metal equivalent.

FDM Nylon CF10 (Carbon Fiber) Material Profile

Learn more about the benefits of FDM printed parts

Supplement your fixture and part fabrication with FDM composite 3D printing to gain speed, throughput, and cost benefits.

Make workholding fixtures, soft jaws, and component parts with composite 3D printing in a fraction of the time and cost it takes to machine a metal equivalent.

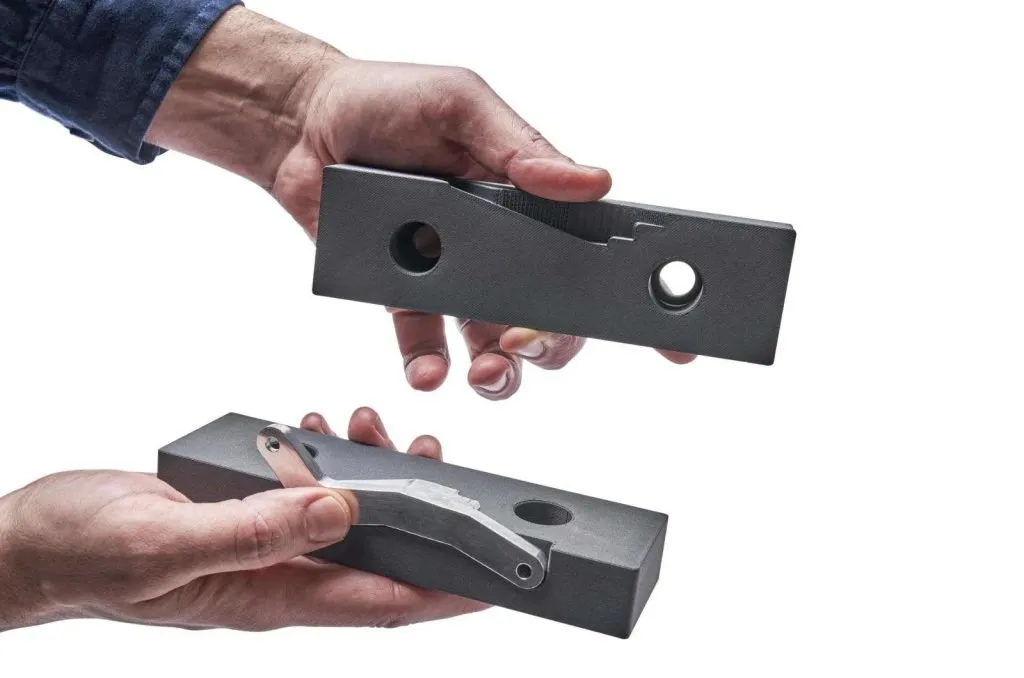

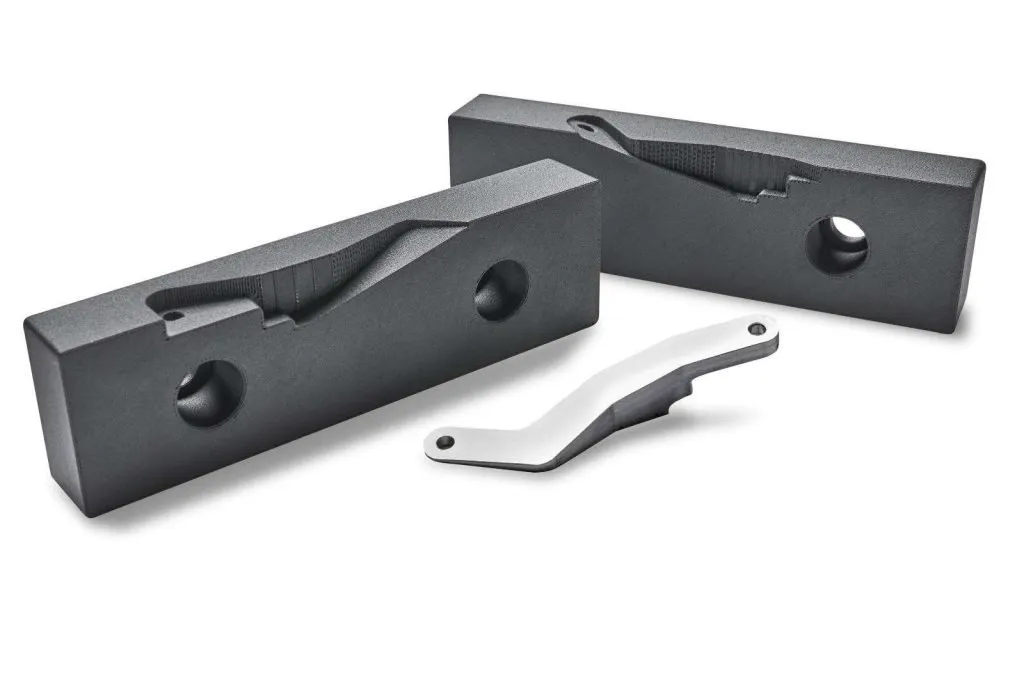

FDM Nylon CF10 Soft Jaw

Main Uses

The ability to replace machined jigs and fixtures quickly. Upgraded, lightweight, convenient designs made possible by FDM Nylon-CF10’s high strength-to-weight ratio.

FDM Nylon CF10 (Carbon Fiber) Material Applications

Lightweight tooling

Alignment and assembly fixtures

Production parts

Press brakes, end effectors, soft jaws

Jigs and fixtures

FDM Nylon CF10 (Carbon Fiber) Material Specification

Properties and testing results for the 3D printing material

PropertyTest MethodXYXZ/ZX
HDT @ 66 psiASTM D648 Method B58 °C (136 °F))77 °C (171 °F)
HDT @ 264 psiASTM D648
Method B
52 °C (126 °F)62 °C (144 °F)
TgASTM D7426
Inflection Point
109 °C
CTE (XY)ASTM E831 (RT to 60 °C)94 μm/[m*°C]79 μm/[m*°C]
CTE (Z)ASTM E831 (RT to 60 °C)180 μm/[m*°C]148 μm/[m*°C]
Volume ResistanceASTM D2571.88E+15 Ohms-cm4.25E+13 Ohms-cm
Specific GravityASTM D257@23 °C1.1411

Fused Deposition Modeling (FDM) Service

Advantages of parts built with a Stratasys FDM 3D Printer

Tough long-lasting parts

FDM technology works with engineering-grade thermoplastics to build strong, long-lasting and dimensionally stable parts with the best accuracy and repeatability of any 3D printing technology.

FDM parts are tough enough to be used as advanced conceptual models, functional prototypes, manufacturing tools and production parts.

Meet production demands

Our FDM production machines are as versatile and durable as the parts they produce.

With the largest build envelopes and material capacities in their class, we can provide longer, uninterrupted build times, bigger parts and higher quantities than other additive manufacturing service providers.

Gain new possibilities

TriMech's FDM 3D printing service will help to streamline your business processes from design through manufacturing, reducing costs and eliminating traditional barriers along the way.

Industries we work with are able to cut lead times and costs, we help clients to deliver better products and get to market faster.

Industries we work with

TriMech services are used in a wide variety of industries

Architecture 3D Printing

Architecture & Construction

  • Model making
  • Urban planning
  • Concepts
Consumer Product 3D printing

High Tech & Consumer Products

  • Aesthetic and function testing
  • Concepts and prototypes
  • Sales and marketing models
Industrial design 3D printing

Industrial Design & Manufacturing

  • Aerospace
  • Automotive
  • Defense
  • Industrial equipment
  • Marine and offshore
  • Oil and gas
Medical 3D printing

Dental, Medical & Life Sciences

  • Anatomical models
  • Medical devices
  • Orthopedics
  • Prosthetics
  • Surgical planning models
Mold tool die 3D printing

Industrial Products, Mold Tool & Die

  • Jigs, fixtures, and assembly tooling
  • Injection molding
  • Silicone molding
  • Sand and investment casting
  • Thermoforming

Interested in FDM Nylon CF10 (Carbon Fiber)?

Call 888.392.0957 or Upload Your Part
