LOCTITE 3D 3955 FST by Henkel

P3 Photopolymer

High performance Halogen-free flame retardant UL94-V0 high modulus photopolymer resin. Printable at 60 °C.

LOCTITE® 3D 3955 FST by Henkel is a high-performance, high-modulus product with excellent flexural and tensile physical properties and outstanding flame retardance. Suitable for aerospace and transportation components that require flame resistance, high HDT or chemical resistance. Ideal applications include HVAC components, clips and plugs for control systems, connectors, clamps, ducts, brackets.

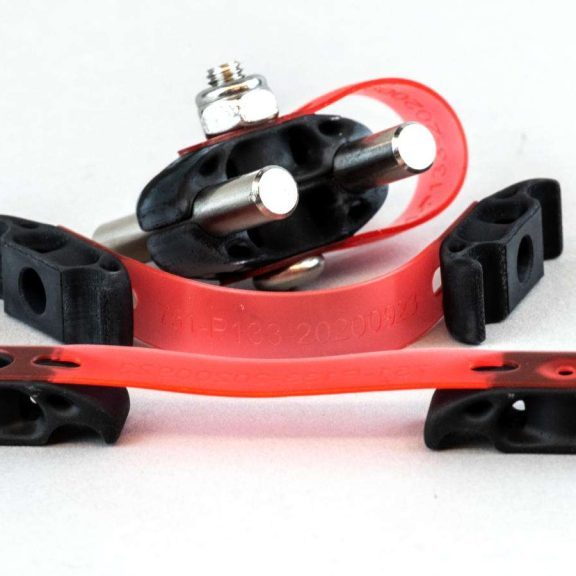

LOCTITE® 3D 3955 FST by Henkel

LOCTITE 3D 3955 FST by Henkel Material Profile

Learn more about the benefits of Stratasys Origin One P3 printed parts

A powerful combination of production-grade technology and performance materials.

A transformative 3D printer enabling mass production of end-use parts in a diverse range of high-performance materials. Achieve industry-leading accuracy, consistency, detail and throughput with the P3™ Programmable Photopolymerization technology.

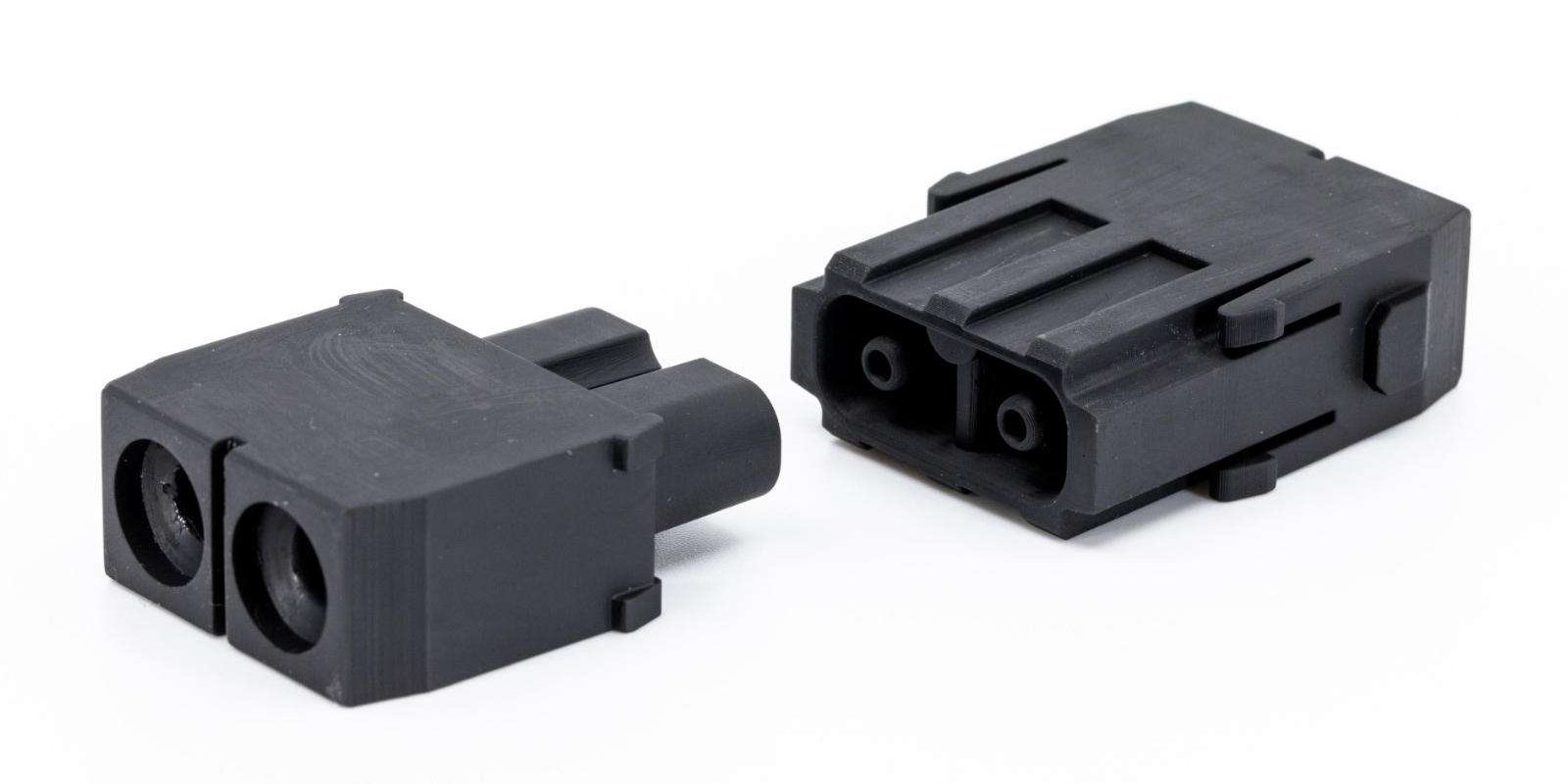

LOCTITE 3D 3955 Connectors

Main Uses

Ideal applications include HVAC components, clips and plugs for control systems, connectors, clamps, ducts, brackets.

Material Features and Applications

Extremely high HDT (285°C) delivers negligible deformation in harsh environments

Printable at 65°C (149°F)

Passes flammability 2×10 second vertical burn and FST (AITM2-0002, AITM2-0007, AITM3-0005)

Halogen-free

Color: Black

LOCTITE 3D 3955 FST by Henkel Material Specification

Properties and testing results for the Origin P3 Photopolymer

Material NameDescriptionTensile StrengthElongation at BreakTensile ModulusHDTNotched Izod ImpactHardnessColorsConsider Replacing
3955Very high temperature, high stiffness FST67 MPa2.10%3556 MPa 300° C23 J/m84 DBlack Ultem, phenolic, PBT, aluminum
403High strength, stiffness, and Good HDT72 MPa10%2572 MPa80° C27 J/m81 DBlackNylon 6/6
3843Versatile, Good all-around engineering polymer53 MPa43%1806 MPa60° C53 J/m74 DBlack, Clear, WhiteABS, delrin, polypropylene
Dura56Durable, impact-resistant, exceptional surface finish, Low cost per kg44 MPa78%1595 MPa52° C56 J/m72 DBlackABS, delrin, polypropylene
3172Moderately flexible, ductile, great impact strength39 MPa105%1494 MPa51° C73 J/m72 DCyan, GreyImpact modified polypropylene, nylon 6, HDPE
IND405Clear, moderately flexible, ductile, great impact strength52 MPa127%1378 MPa53° C 72 J/m79 DClearImpact modified polypropylene, nylon 6, HDPE
ST45Versatile, Good all-around engineering polymer53 MPa21%2000 MPa63° C20 J/m81 DBlack, ClearABS, delrin
QG 500Uniquely flexible engineering material with great impact strength20 MPa42%465 MPa62° C (Tg)70 J/m76 DClearLDPE
402TPU-like elastomer with Good tear strength and elongation at break5.5 MPa230%42 MPaN/AN/A75-90 ABlack70-90 A TPU, flexible foam
MED412Moderately flexible, ductile, great impact strength37 MPa110%1305 MPa39° C50 J/m78 DClear Medical-grade polypropylene
MED413Versatile engineering medical grade material46 MPa51%1673 MPa68° C59 J/m79 DClear, WhiteMedical-grade ABS
Material NameTemperature ResistanceFlameChemical ResistanceUV stabilityDielectric strengthLow water absorptionStrengthStiffnessToughnessBiocompatibility testingPrint speedMaterial cost
3955StrongStrongRefer to data sheetGoodStrongStrongStrongLowStrong$$$
403StrongGoodStrongStrongStrongLowGood$$
3843GoodRefer to data sheetGoodStrongGoodGoodGoodGoodCyto, irritationGood$$
Dura56LowGoodLowGoodGoodStrongGood$
3172LowGoodGoodGoodGoodStrongCyto, irritationGood$$
IND405LowGoodGoodGoodGoodStrongCyto, irritationGood$$
ST45GoodGoodGoodStrongGoodStrongLowCyto, irritation, sensitizationStrong$
QG 500GoodGoodStrongLowLowStrongStrong$$
402N/ARefer to data sheetGoodLowLowLowN/AIrritationLow$$
MED412LowGoodStrongGoodGoodGoodCyto, irritation, sensitizationGood$$$
MED413GoodGoodLowGoodGoodStrongCyto, irritation, sensitizationGood$$$

Programmable PhotoPolymerization P3™

Advantages of parts built with a Stratasys Origin One P3 Machine

Injection Molding Quality

Programmable PhotoPolymerization P3™ technology, an evolution of digital light processing (DLP) is ushering in a new era in 3D printing: the mass production of functional end-use parts.

P3 software precisely orchestrates light, temperature, pull forces and pneumatics to optimize prints for the best possible results.

With P3, injection molding part quality can be achieved, and a surface finish with incredible accuracy. P3 has a diverse and continuously growing range of high-performance materials.

End-use Part Production

P3 is a combination of several tightly controlled, programmable steps in the printing process. P3 extends DLP printing’s capabilities and supports the next generation of production applications made with photopolymers.

This powerful combination of production-grade technology and performance materials unlocks functional end-use applications in 3D printing with competitive throughput and part cost.

Strong Parts, Fast

P3 orchestrated print process, coupled with advanced light control, maximizes green strength and production speed.

Consistent part quality for parts with large or tiny features with exceptionally smooth surfaces every time.

P3 is built from the ground up, to enable the next generation of photopolymers to withstand the harshest conditions.
