VeroClear and VeroUltraClear

Rigid Transparency

VeroClear™ and VeroUltraClear™ are transparent PolyJet™ digital materials offering exceptional clarity combined with strength, stiffness and impact resistance.

VeroClearn and VeroUltraClear simulate PMMA (polymethyl methacrylate), commonly known as acrylic, achieving 86% light transmission through a 6 mm thick sample.

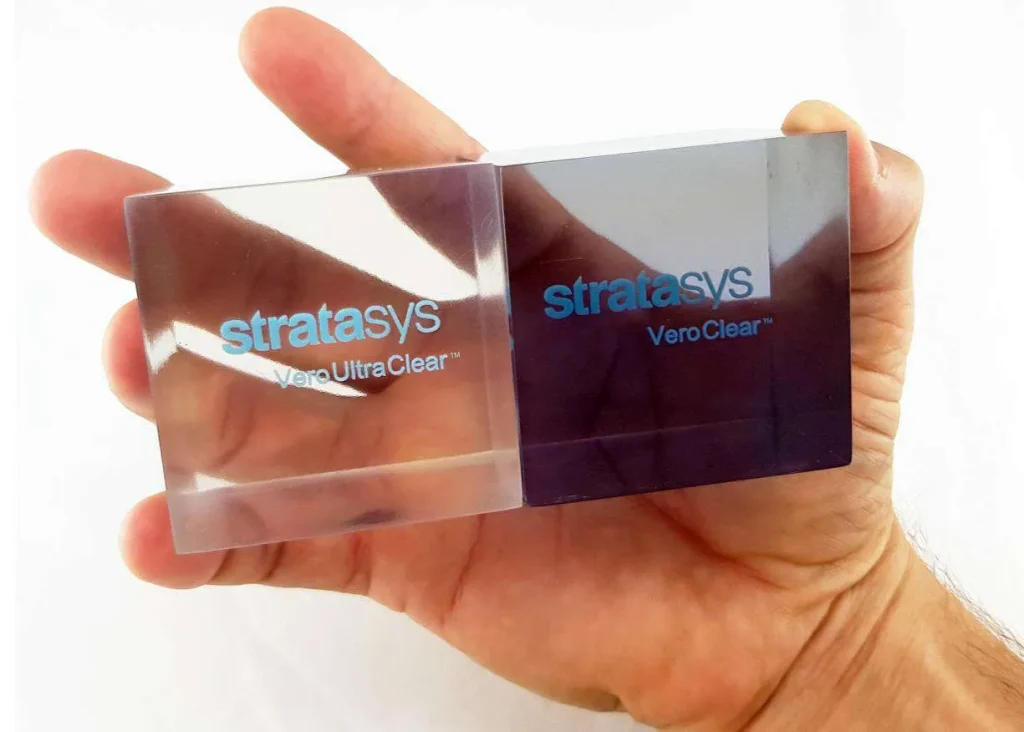

VeroUltraClear has a higher level of clarity and transparency and a lower yellow index than standard VeroClear™. Thermal properties are similar but mechanical properties are somewhat lower than VeroClear.





VeroUltraClear Orb

Example VeroClear and UltraClear Parts

Example transparent 3D printed parts created with Stratasys PolyJet 3D printers, click to enlarge images:

VeroClear and VeroUltraClear Material Profile

Learn more about the benefits of PolyJet printed parts

PolyJet is a powerful 3D printing technology that produces smooth, accurate parts, prototypes and tooling.

With microscopic layer resolution and accuracy down to 0.1 mm, it can produce thin walls and complex geometries using the widest range of materials available with any technology.

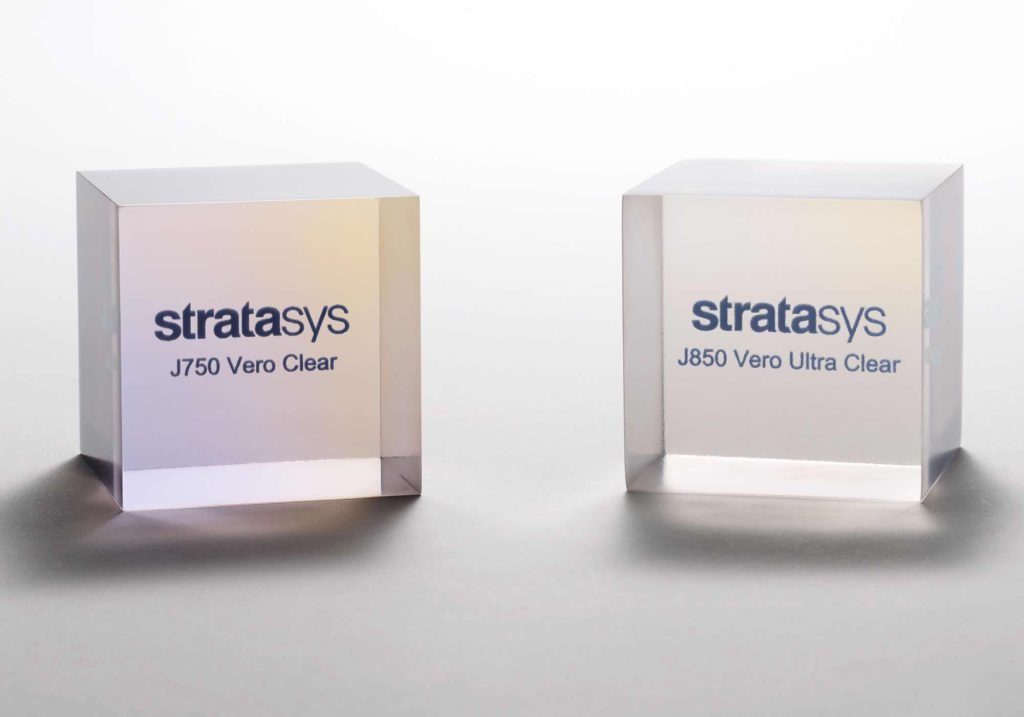

VeroUltraClear Cubes

Main Uses

Typical applications include concept models and prototypes for eyewear, lighting components, and the replication of glass and clear polymers. Other uses include modeling clear tubes and housings for pumps and gearboxes to view fluid flow and internal mechanisms.

VeroClear and VeroUltraClear Material Applications

Fluid flow models

View internal mechanisms

Eyewear and consumer goods

Medical applications

VeroClear and VeroUltraClear Material Specification

Properties and testing results for the 3D printing material

VeroClear Mechanical PropertyASTMUNITSMETRICUNITSIMPERIAL
Tensile StrengthD-638-03MPa50-65psi7250-9450
Elongation at BreakD-638-05%10-25%10-25
Modulus of ElasticityD-638-04MPa2000-3000psi290,000-435,000
Flexural StrengthD-790-03MPa75-110psi11000-16000
Flexural ModulusD-790-04MPa2200-3200psi320,000-465,000
HDT, °C @ 0.45MPaD-648-06°C45-50°F113-122
HDT, °C @ 1.82MPaD-648-07°C45-50°F113-122
Izod Notched ImpactD-256-06J/m20-30ft lb/inch0.375-0.562
Water AbsorptionD-570-98 24hr%1.1-1.5%1.1-1.5
TgDMA, E»°C52-54°F126-129
Shore Hardness (D)Scale DScale D83-86Scale D83-86
Rockwell HardnessScale MScale M73-76Scale M73-76
Polymerized DensityASTM D792g/cm31.18-1.19
Ash ContentUSP281%0.02-0.06%0.02-0.06
VeroUltraClear Mechanical PropertyASTMValue
Tensile StrengthD-638-0339 – 43 MPa (5,650 – 6,240 psi)
Elongation at BreakD-638-0520 – 35%
Modulus of ElasticityD-638-041,400 – 2,100 MPa (203,000 – 304,600 psi)
Flexural StrengthD-790-0358 – 72 MPa (8,400 – 10,400 psi)
Flexural ModulusD-790-041,900 – 2,300 MPa (275,000 – 333,000 psi)
HDT, °C @ 0.45 MPa Before PhotobleachingD-648-0647 – 49 °C (117 – 120 °F)
HDT, °C @ 0.45 MPa After PhotobleachingD-648-0648 – 52 °C (118 – 126 °F)
Izod Notched ImpactD-256-0620 – 30 J/m (0.375 – 0.562 ft-lb/in.)
Water AbsorptionD-570-9824hr 1.25 – 1.40%
TgDMA, E»52 – 54 °C (125.6 – 129.2 °F)
Shore HardnessScale D80 – 85
Rockwell HardnessScale M70 – 75
Polymerized DensityASTM D7921.18 – 1.19 g/cm3
Ash ContentUSP 2810.02 – 0.06%

Advantages of PolyJet Technology

Advantages of parts built with a Stratasys PolyJet Machine

Realistic Parts

Stratasys PolyJet 3D Printers are based on proven technology, which creates precise prototypes that set  the standard for finished-product realism.

Their fine resolution makes complex shapes, intricate details  and smooth surfaces possible.

Precise Models

PolyJet 3D Printing works by jetting layers of liquid photopolymer onto a build tray and instantly curing them with UV light.

The fine layers build up to create a precise 3D model or prototype. Models are ready to handle right out of the 3D printer, with no post-curing needed.

Better ideas, easier sell

PolyJet 3D printed models improve communication and collaboration because they produce amazingly  accurate representations of your ideas that you can share with your team and your clients for a faster, more confident buy-in.

Industries we work with

TriMech services are used in a wide variety of industries

Architecture 3D Printing

Architecture & Construction

  • Model making
  • Urban planning
  • Concepts
Consumer Product 3D printing

High Tech & Consumer Products

  • Aesthetic and function testing
  • Concepts and prototypes
  • Sales and marketing models
Industrial design 3D printing

Industrial Design & Manufacturing

  • Aerospace
  • Automotive
  • Defense
  • Industrial equipment
  • Marine and offshore
  • Oil and gas
Medical 3D printing

Dental, Medical & Life Sciences

  • Anatomical models
  • Medical devices
  • Orthopedics
  • Prosthetics
  • Surgical planning models
Mold tool die 3D printing

Industrial Products, Mold Tool & Die

  • Jigs, fixtures, and assembly tooling
  • Injection molding
  • Silicone molding
  • Sand and investment casting
  • Thermoforming
