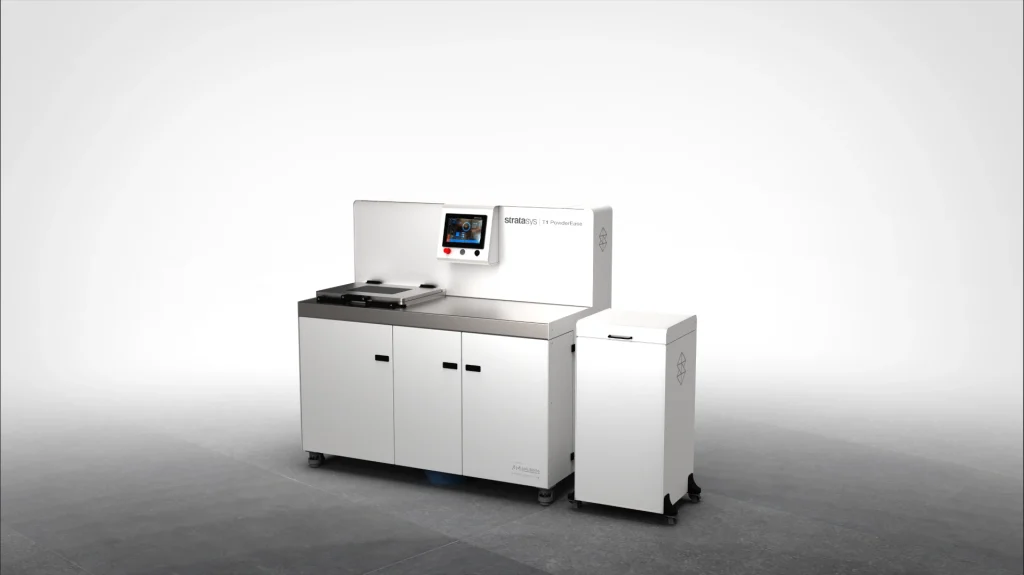

Optimize Your Workflow with PowderEase™ T1
PowderEase™ T1 automates powder breakout, sieving, and dosing Compatible with the Stratasys H350 powder bed printer.
This advanced system streamlines SAF workflows by automating key post-processing steps including powder removal, material recovery, and automated dosing to minimize manual intervention and improve operational efficiency.
Designed for high-volume environments, it reduces manual labor, enhances powder reuse, and supports multiple Stratasys H350 printers. Allowing you to boost project efficiency, cleanliness, and consistency across your production.
SAF™ PowderEase™ T1 Features
Stratasys PowderEase™ T1 Benefits
Time Savings from Automated Powder Management

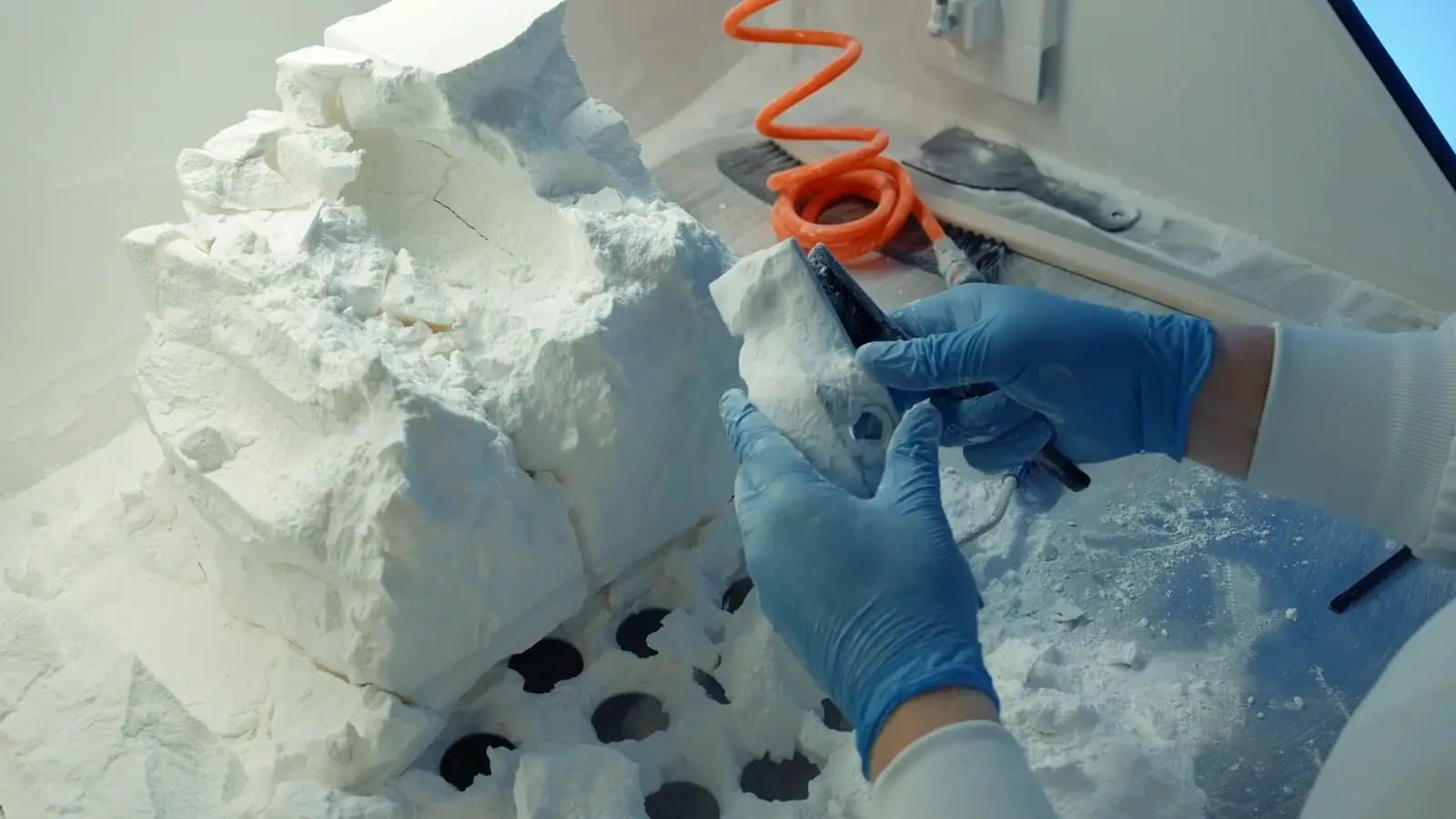

PowderEase™ T1 automates the slowest steps in your SAF workflow – removing powder, sieving powder and accurately dosing powder. Steps that are automated for you eliminate the manual processes allowing you to save about 50 minutes per cycle and maximize your printer uptime.
High-Capacity, Automated Curing
The CrossLink comes pre-programmed with the ideal thermal profile for each validated material. Its oversized interior chamber can also accommodate two full Stratasys Origin One builds, allowing you to cure more parts at once.
Just One System Makes Scaling Easy

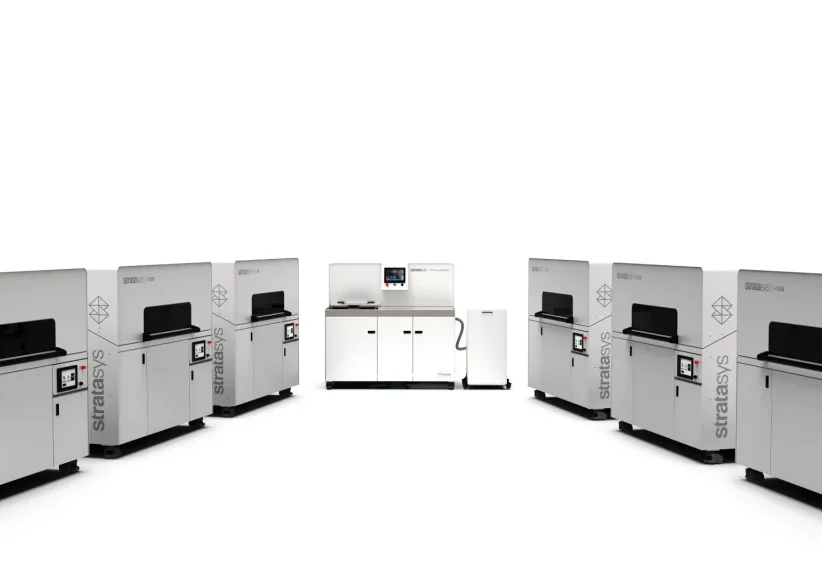

This system is made for high-volume production, and one T1 can service as many as six H350 printers. Which helps bring less bottlenecks, less clutter from equipment, and you having a much easier pathway for scaling your SAF ecosystem.
Compatible Materials
Stratasys PowderEase™ T1 for Stratasys H350
Stratasys H350
The SAF™ powered Stratasys H350 3D printer gives you control of your production and costs. Grow your business through volume production with consistent end-use functional parts.
Built for high-volume, short-run production, the Stratasys H350 3D printer gives you control of your materials, workflow, production and costs while delivering consistency and accuracy print after print.
Stratasys PowderEase™ T1 Specifications
| Category | Specification |
|---|---|
| Technology | Automated Powder Breakout, Sieving, Dosing, and Barrel-Loading |
| Platform Size | 500 x 400 mm (19.68 x 15.75 in.) |
| Dimensions (W x D x H) | 950 x 1675 x 1625 mm (37.40 x 65.95 x 63.98 in.) |
| Weight | 750 kg (1653 lbs.) |
| Space Requirement (W x D) | 2640 x 2200 mm (103.94 x 86.61 in.) |
| Power Requirements | 240 VAC, 1PH; 50 Hz |
| Power Consumption | 2 kW (2.72 hp) |
| Compressed Air | 6–10 bar (87–145 psi), min. flow rate: 1500 l/min (396 gal/min) |
| Noise Emission | < 80 dB (A) |
| Screen Sizes | Ø 300 mm (Ø 11.81 in.), Mesh width: 250 µm (9.8425 mil) |
| Dosing System | Automated dosing system for powder |
| Loading Capacity | Supports 2 full builds without refilling |
| Operating Temp. Range | 15–30 °C (59–86 °F) |
| Operating Humidity | 30–70% RH |
| Extraction Rate | 150 m³/h (88 CFM) |
| Compatible Materials | PA12, PA11, PP |
| Certifications | ISO 8573-1 Class 2:4:2, REACH, RoHS, WEEE, Modern Slavery Act, Conflict Minerals |
Industries we work with
TriMech Advanced Manufacturing is used in a wide variety of industries
Architectural Design & Construction
- Model making
- Urban planning
- Concepts
High Tech & Consumer Products
- Aesthetic and function testing
- Concepts and prototypes
- Sales and marketing models
Dental, Medical & Life Sciences
- Anatomical models
- Medical devices
- Orthopedics
- Prosthetics
- Surgical planning models
Industrial Products, Mold Tool & Die
- Jigs, fixtures, and assembly tooling
- Injection molding
- Silicone molding
- Sand and investment casting
- Thermoforming
More Post Processing Solutions
AMT PostPro DP/SB Studio Depowdering/Blasting System
The AMT PostPro DP/SB Studio is a compact depowdering & blasting system designed for smaller part sizes and studio operating environments
ORYX scaWaterjet
A water jetting spray booth capable of coarse and fine support material removal during 3D printing post processing.

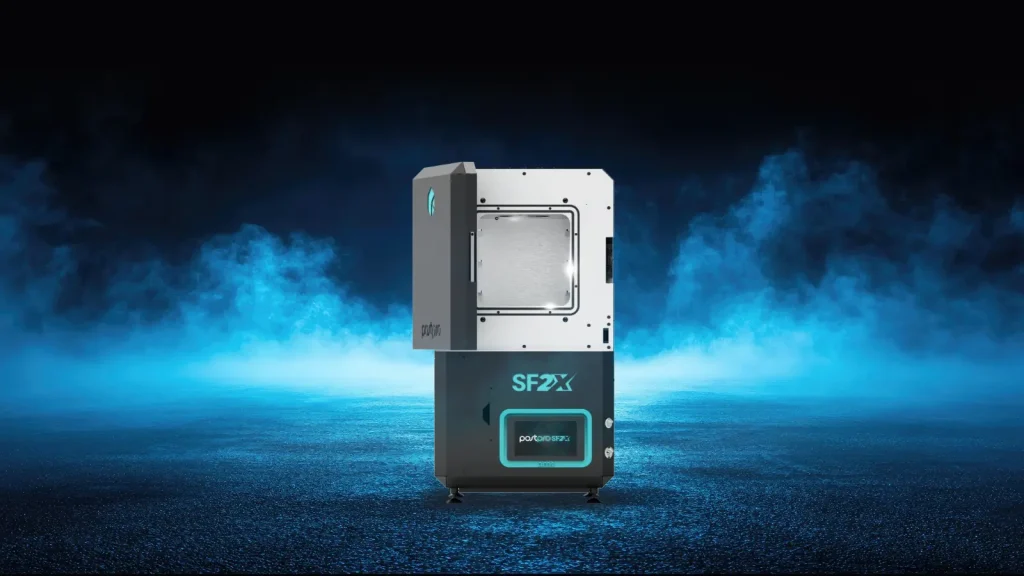

AMT PostPro SF2X Vapor Smoothing System
