Surface Finishing solution for PolyJet models
In-house post-processing for Stratasys J3, J5, and J7/J8 series 3D printers
The Stratasys ProLight post-cures 3D printed parts with a combination of heat and light to improve physical properties, including mechanical function, translucency, and appearance.
The 450 nm LED source from the curing unit can heat the chamber up to 80 °C, ensuring for optimal photobleaching and curing of your PolyJet 3D-printed parts.
Stratasys Prolight UV Cure Box Features
Stratasys Prolight UV Cure Box Benefits
Increasing Material Potential
The Stratasys UV Cure Box helps materials such as ToughONE and True Dent unlock their enhanced toughness, flexibility and thermal resistance, elevating the 3D printing resin to a perfect option for durability. Making it perfect for applications with automotive, consumer goods, electronics, packaging, and dental appliances.
Precise Curing
With multi-directional 450 nm LEDs, a heated chamber and a rotating turntable, the ProLight Cure Box ensures even, consistent exposure delivering uniform mechanical properties and visual quality across every part surface.
Compatible Materials
ToughONE
ToughONE™ is a very strong PolyJet material with several unique features. With an excellent combination of strength for functional tests and precision for visual appeal.
Vero Family
The Vero materials are available in single or full color, producing parts quickly & economically with excellent fine feature detail.
TrueDent
TrueDent is an FDA cleared class II resin designed to produce TrueDent dentures and other dental appliances on the J5 DentaJet platform.

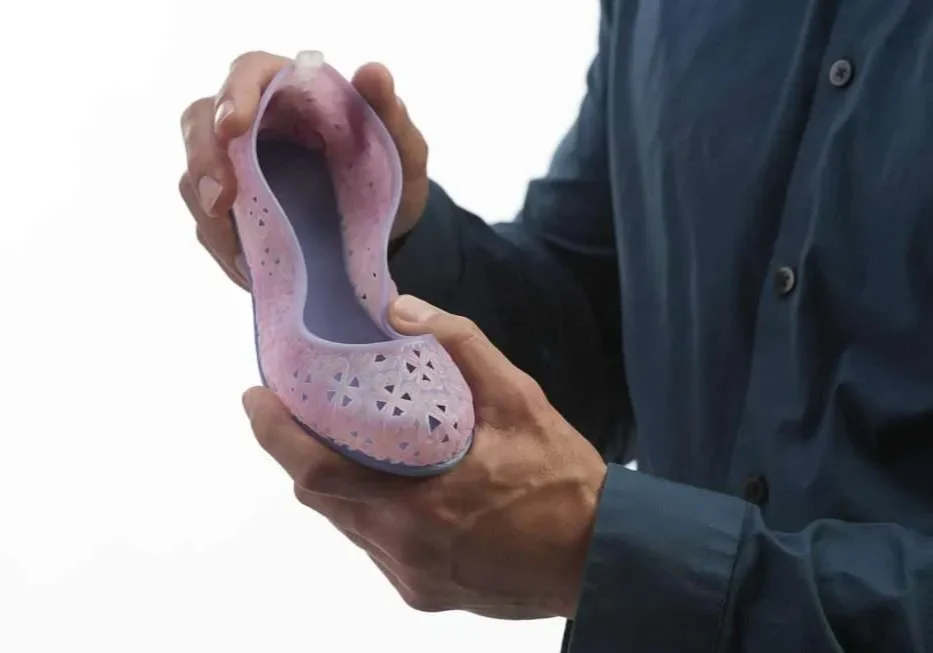

Agilus30™
Stratasys Agilus30™ is a PolyJet™ rubber-like 3D printing material with superior tear resistance & withstanding repeated flexing and bending.
Stratasys Prolight UV Cure Box Specifications
| Parameter | Specification |
|---|---|
| Light Source | 45 multi-directional 450 nm LEDs |
| LED Output | 36 W |
| Maximum Post-Cure Temperature | 176 °F (80 °C) |
| Curing Volume | Cylinder – 15.6 in. (39.5 cm) diameter x 12.6 in. (32 cm) height |
| Turntable Diameter | 15.6 in. (39.5 cm) |
| Product Dimensions | 27.2 x 21.3 x 17.5 in. (69 x 54 x 44.5 cm) |
| Product Weight | 53 lb (24 kg) |
| Minimum Dimensions for Access | 35.5 x 33.5 x 21.7 in. (90 x 85 x 55 cm) |
| Unit Control | Interactive touchscreen |
| Alerts | Touchscreen alerts |
| Connectivity | Wi-Fi (2.4 GHz), Ethernet (100 Mbit), USB 2.0 |
| Wi-Fi Protocol | IEEE 802.11 b/g/n, WPA/WPA2 security |
| Shipping Size & Weight | 33.4 x 23.3 x 21.7 in. (84.8 x 59.2 x 55.2 cm), 70 lb (32 kg) |
| Power Requirements (NA) | 110–120 VAC, 50–60 Hz, 15 A max |
| Power Requirements (EU) | 220–240 VAC, 50–60 Hz, 8 A max |
| Ambient Temperature Range | 64–82 °F (18–28 °C) |
| Relative Humidity | 30–70% (non-condensing) |
| Item Codes | OBJ-09960 (230V) / OBJ-09970 (110V) |
Industries we work with
TriMech Advanced Manufacturing is used in a wide variety of industries
Architectural Design & Construction
- Model making
- Urban planning
- Concepts
High Tech & Consumer Products
- Aesthetic and function testing
- Concepts and prototypes
- Sales and marketing models
Dental, Medical & Life Sciences
- Anatomical models
- Medical devices
- Orthopedics
- Prosthetics
- Surgical planning models
Industrial Products, Mold Tool & Die
- Jigs, fixtures, and assembly tooling
- Injection molding
- Silicone molding
- Sand and investment casting
- Thermoforming
More Post Processing Solutions

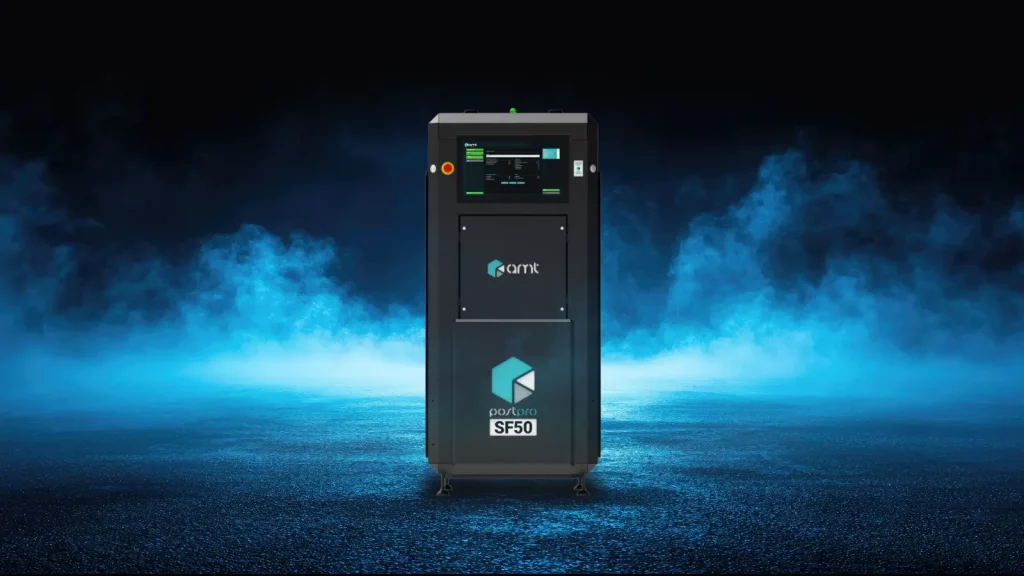

AMT PostPro SF50 Vapor Smoothing System
The AMT PostPro SF50 is a compact patented chemical vapor smoothing solution for post-processing thermoplastic polymer 3D printed parts, ideal for low to medium part...
Formlabs Fuse Sift
Recycle powder, extract and clean your parts all within a dust-free easy to use system.

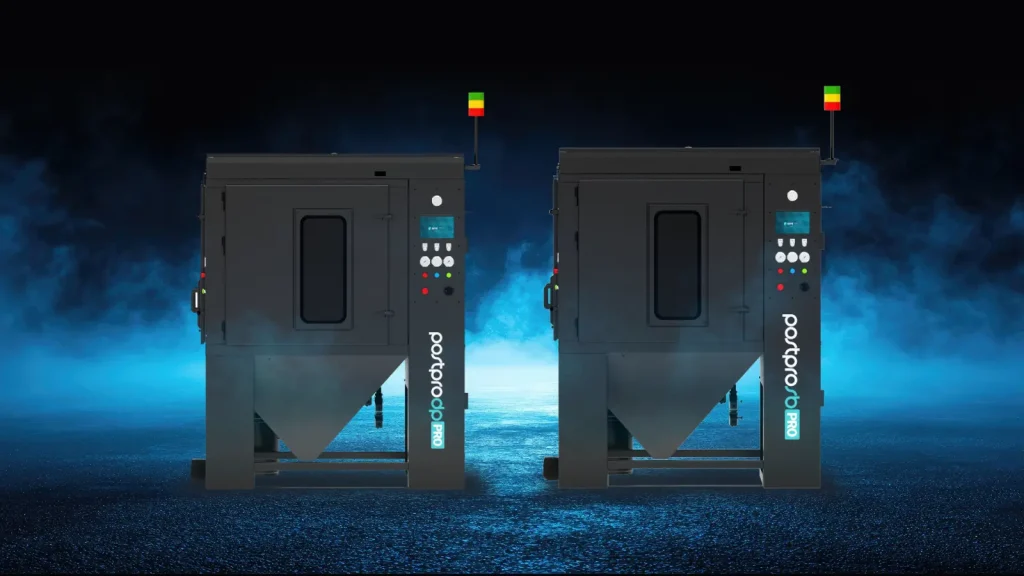

AMT PostPro DP/SB PRO Depowdering/Blasting System
