Vero Rigid Opaque and Vero Vivid

Vivid Color Material

PolyJet Vero Materials are rigid opaque photopolymers provide excellent detail visualization and can be blended with other photopolymers to vary hardness, flexibility, translucency or heat resistance.

These multi-purpose materials are most widely used for sales and marketing visual models, engineering prototypes, product assemblies and RTV molding patterns.

Rigid Opaque materials are good material choices for light functional testing, patterns, prototypes and models.

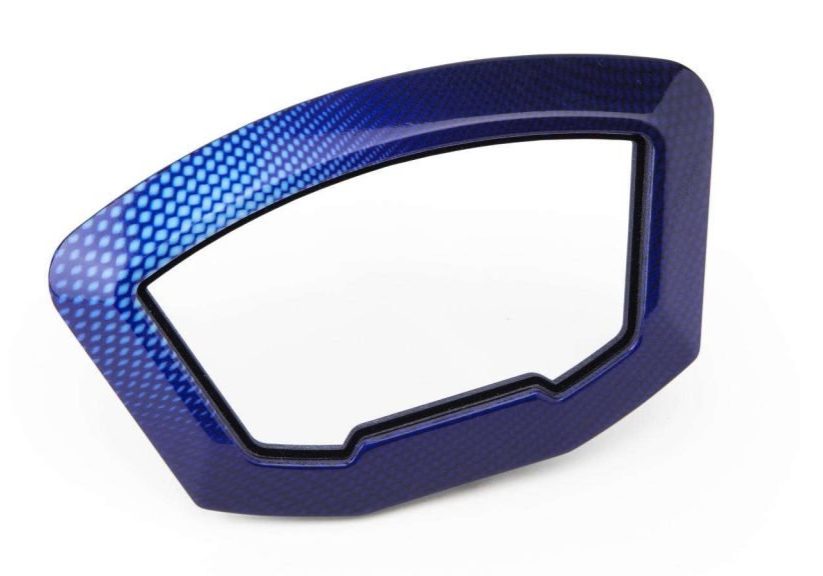

Vero opaque part

Vero Rigid Opaque and Vero Vivid Material Profile

Learn more about the benefits of PolyJet printed parts

PolyJet is a powerful 3D printing technology that produces smooth, accurate parts, prototypes and tooling.

With microscopic layer resolution and accuracy down to 0.1 mm, it can produce thin walls and complex geometries using the widest range of materials available with any technology.

Vero multicolor 3D printed part

Main Uses

PolyJet Vero Materials are rigid opaque photopolymers that provide excellent detail visualization and can be blended with other photopolymers to vary hardness, flexibility, translucency or heat resistance.

Vero Rigid Opaque and Vero Vivid Material Applications

Moving components or assemblies

Functional Prototyping

Jigs & Fixtures

Tooling

Vero Rigid Opaque and Vero Vivid Material Specification

Properties and testing results for the 3D printing material

Vero PureWhite, VeroBlackPlus, VeroCyan, VeroCyanV, VeroGray, VeroMagenta, VeroMagentaV, VeroWhitePlus, VeroYellow, VeroYellowV
PropertyASTMValue
Tensile StrengthD-638-0350 – 65 MPa (7,250 – 9,450 psi)
Elongation at BreakD-638-0510 – 25%
Modulus of ElasticityD-638-042,000 – 3,000 MPa (290,000 – 435,000 psi)
Flexural StrengthD-790-0375 – 110 MPa (11,000 – 16,000 psi)
Flexural ModulusD-790-042,200 – 3,200 MPa (320,000 – 465,000 psi)
HDT, °C @ 0.45MPaD-648-0645 – 50 °C (113 – 122 °F)
HDT, °C @ 1.82MPaD-648-0745 – 50 °C (113 – 122 °F)
Izod Notched ImpactD-256-0620 – 30 J/m (0.375 – 0.562 ft-lb/inch)
Water AbsorptionD-570-9824hr 1.1 – 1.5%
TgDMA, E»52 – 54 °C (126 – 129 °F)
Shore HardnessScale D83 – 86 (Scale D)
Rockwell HardnessScale D73 – 76 (Scale M)
Polymerized DensityScale M1.17 – 1.18 g/cm3
Ash Content (VeroGray, VeroWhitePlus)USP2810.23 – 0.26%
Ash Content (VeroBlackPlus)USP2810.01 – 0.02%
VeroBlue
PropertyASTMValue
Tensile StrengthD-638-0350 – 60 MPa (7,250 – 8,700 psi)
Elongation at BreakD-638-0515 – 25%
Modulus of ElasticityD-638-042,000 – 3,000 MPa (290,000 – 435,000 psi)
Flexural StrengthD-790-0360 – 70 MPa (8,700 – 10,200 psi)
Flexural Modulus D-790-04 1,900 – 2,500 MPa (265,000 – 365,000 psi)
HDT, °C @ 0.45MPaD-648-0645 – 50 °C  (113 – 122 °F)
HDT, °C @ 1.82MPaD-648-0745 – 50 °C (113 – 122 °F)
Izod Notched ImpactD-256-0620 – 30 J/m (0.375 – 0.562 ft-lb/inch)
Water AbsorptionD-570-98 24hr1.5 – 2.2%
TgDMA, E»48 – 50 °C (118 – 122 °F)
Shore Hardness (D)Scale D83 – 86 (Scale D)
Rockwell HardnessScale D73 – 76 (Scale M)
Polymerized DensityScale M1.18 – 1.19 g/cm3
Ash ContentUSP2810.21 – 0.22%

Advantages of PolyJet Technology

Advantages of parts built with a Stratasys PolyJet Machine

Realistic Parts

Stratasys PolyJet 3D Printers are based on proven technology, which creates precise prototypes that set  the standard for finished-product realism.

Their fine resolution makes complex shapes, intricate details  and smooth surfaces possible.

Precise Models

PolyJet 3D Printing works by jetting layers of liquid photopolymer onto a build tray and instantly curing them with UV light.

The fine layers build up to create a precise 3D model or prototype. Models are ready to handle right out of the 3D printer, with no post-curing needed.

Better ideas, easier sell

PolyJet 3D printed models improve communication and collaboration because they produce amazingly  accurate representations of your ideas that you can share with your team and your clients for a faster, more confident buy-in.
