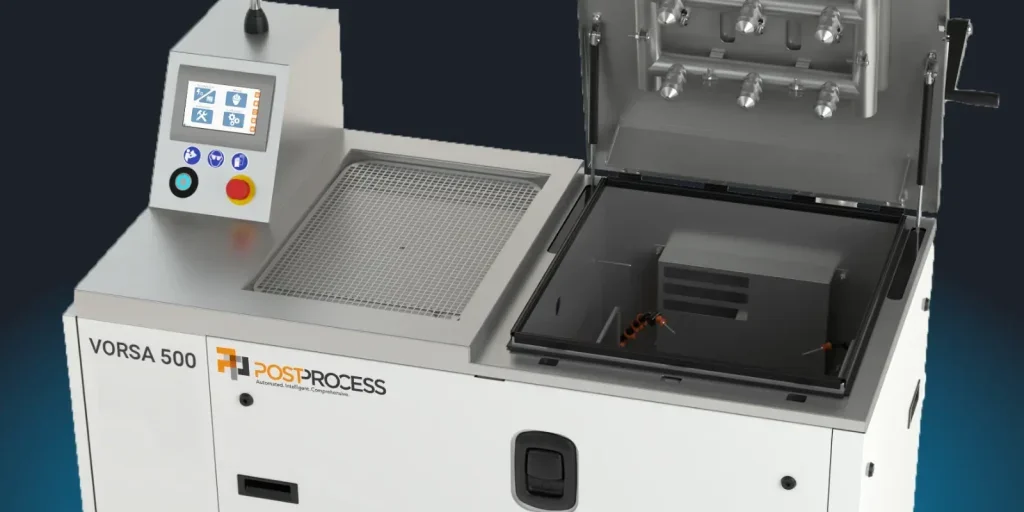

PostProcess VORSA 500

The PostProcess VORSA 500 FDM support removal solution offers a large work envelope and delivers uniform, high-quality results every time

Automated FDM Support Material Removal

Reduces your support material removal processing time by over 50%

The industry’s only full-stack solution, the VORSA 500 leverages patented Volumetric Velocity Dispersion technology and game-changing chemistry, all driven by the AUTOMAT3D® software platform.

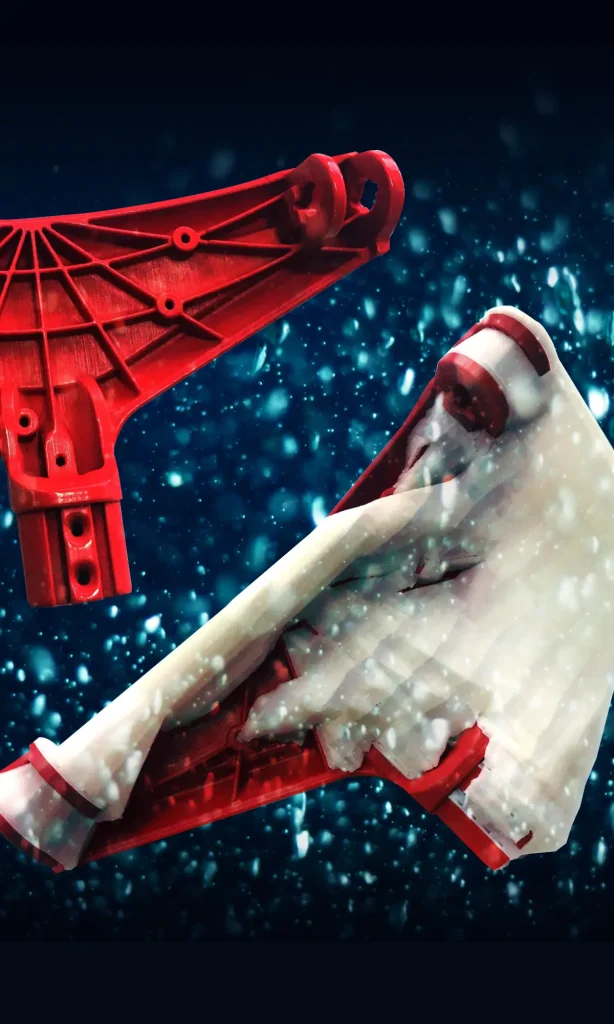

PostProcess Water Agitation

PostProcess VORSA 500 Features

FDM Support Removal

Removes Support Material from 3D printed parts created with Fused Deposition Modeling Technology

Hands-free Post Processing

Hands-free 3D printing post processing, with an envelope size to handle medium sized parts in high volumes.

Complete Solution

Patent-pending software, user-friendly hardware, and eco-friendly consumables works collectively to deliver exacting support removal while increasing the throughput of your production.

Office Friendly Solution

Use the machine in your working environment, no special equipment required for automated FDM support removal.

R

Machine Advantages

  • Superior support removal
  • Evenly treated parts
  • Cycle time reduction
  • Minimized part breakage
  • Minimal operator intervention
  • Preservation of fine-feature details

PostProcess VORSA 500 Benefits

AUTOMATE3D Software

Software Driven

PostProcess provides the fastest cycle times in the industry (1-2 hours), reducing support removal processing times by over 50% compared to submersible tank systems. With multidimensional spray technology, the VORSA 500 allows for remarkably quick dry times while maintaining part integrity as parts won’t become saturated with detergent.

PostProcess before after example 1

Industry-Leading Cycle Times

PostProcess provides the fastest cycle times in the industry (1-2 hours), reducing support removal processing times by over 50% compared to submersible tank systems. With multidimensional spray technology, the VORSA 500 allows for remarkably quick dry times while maintaining part integrity as parts won’t become saturated with detergent.

FDM Support Removal

Your High-Volume Automated Solution

AUTOMAT3D takes the guesswork out of post-printing and reduces operator labor time with pre-programmed recipes. Controlling agitation intensities, temperatures, process times, and more, the VORSA 500 delivers consistently complete FDM support removal. AUTOMAT3D optimizes the rate of support removal, utilizing multi-dimensional spray coverage, ensuring fast cycle times with virtually no damage to parts.

PostProcess Envelope

Designed with Efficiency in Mind

Measuring at 41 cm x 41 cm x 37 cm, the VORSA 500 provides an ample envelope size allowing for a higher throughput of parts to be cleaned during each cycle. Full chamber coverage allows for processing larger batch sizes to deliver uniform, high-quality results for every part, regardless of geometry.

PostProcess VORSA 500 Specifications

Hardware Features

  • Stainless steel envelope
  • Multi-dimensional spray coverage
  • In-line strainer
  • Sealed, top-loading chamber
  • Customizable fixtures available
  • Built-in work station
  • Casters for easy installation

Size and Weight

  • Envelope: 16″ L × 16” W × 14.5″ H (41 cm x 41 cm x 37 cm)
  • Machine closed door footprint: 42.25″ L x 34.5″ W x 84″ H – Fits through standard door
  • Machine open footprint: 67” W x 35” D x 67” H (170 cm x 88 cm x 170 cm)
  • Approximate Weight: 850 lbs. (386 kg) empty, 1060 lbs. (481 kg) full

AUTOMAT3D™ Software

  • Patent-pending AUTOMAT3D® platform
  • Proprietary Agitation Algorithms
  • Variable temperature (130-160°F, 54-71°C)
  • Intelligent cycle times
  • Customizable settings
  • One-touch repeatability with recipes storage
  • Preventative maintenance schedules

Detergent

  • Detergent: PLM-201/202-SPRAY

Facilities Required

  • Water in
  • Drain out
  • Ventilation

Electrical

  • Voltage: 240V 3-Phase
  • Amperage: 30A
  • Plug: ABB430P9W

Safety Features

  • Emergency stop
  • Door locks
  • Temperature limits
  • Auto-interrupt

Why you need a Support Removal Solution

3 Advantages of using an automated Support Removal Solution for 3D printed parts

1. Consistent Results

PostProcess ensures that supports on every part are consistently and completely removed — no breakage and no missed supports. Reliability that each part will be identical all the time, every time.

2. Reduced Cleaning Time

Whether production is in the tens, the hundreds or the thousands, throughput is crucial. PostProcess reduces the cycle time for removing supports and eliminates the manual post-printing ‘bottleneck’.

3. Greater Productivity

The PostProcess VORSA 500 Support Removal machine can work on numerous printed parts simultaneously. Enabling companies to focus on higher-value activities.
