PPSF / PPSU (Polyphenylsulfone)
Production-grade Thermoplastic
PPSF / PPSU (polyphenylsulfone) material has the greatest heat and chemical resistance of all Stratasys materials – ideal for aerospace, automotive and medical applications.
PPSF parts manufactured on our Stratasys 3D Printers are not only mechanically superior, but also dimensionally accurate, to better predict end-product performance. We can also sterilize PPSF via steam autoclave, EtO sterilization, plasma sterilization, chemical sterilization and radiation.
PPSF / PPSU (Polyphenylsulfone) Material Profile
Learn more about the benefits of Fused Deposition Modeling printed parts
FDM Materials Profile
Learn more about the benefits of 3D printed FDM parts
Take a closer look at some of Stratasys’ most popular and versatile FDM materials along with six useful applications.
The materials covered in this video span from standard plastics (ABS-M30 and ASA) to engineering (Nylon 12) and high performance plastics (ULTEM 9085 and ULTEM 1010).
Main Uses
PPSU combines strong mechanical performance with high temperature and chemical resistance for demanding applications like low-volume injection molds, under-hood automotive scenarios and heat, chemical, plasma and radiation sterilization.

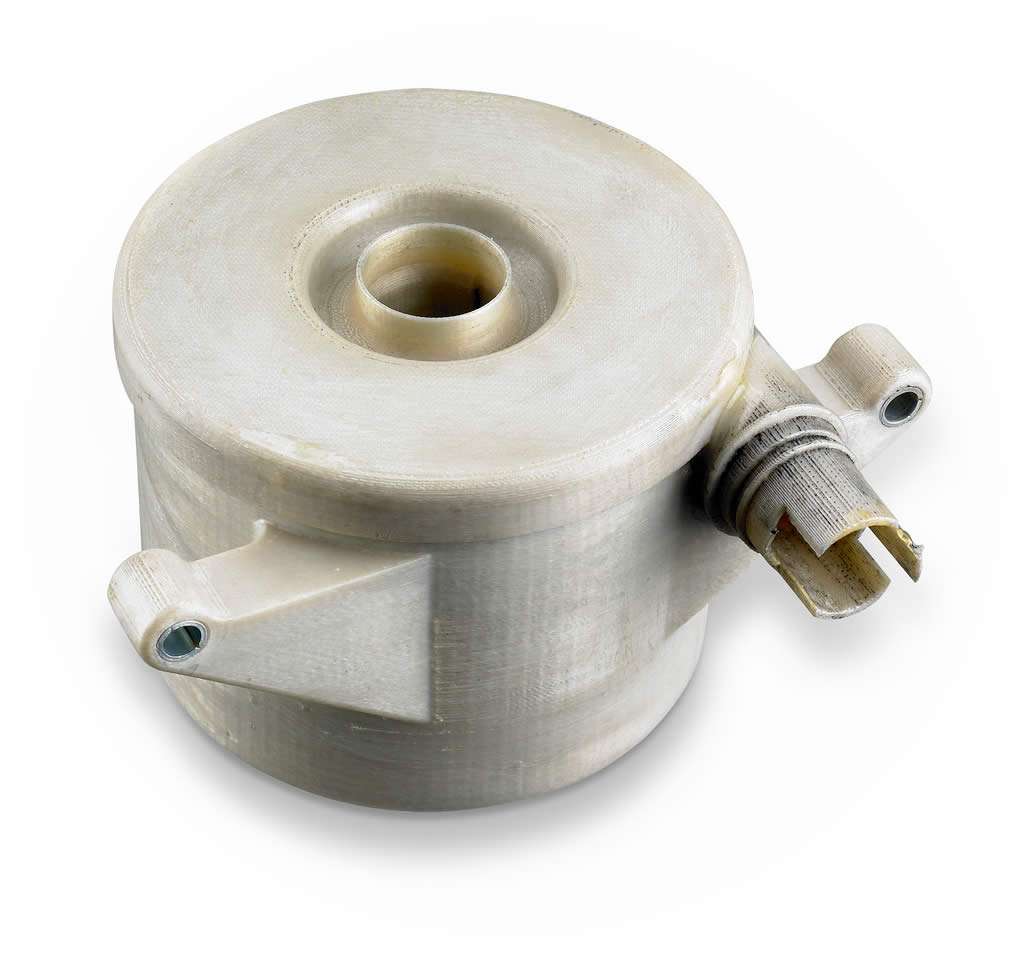

PPSF / PPSU (Polyphenylsulfone) Material Applications
PPSF / PPSU (Polyphenylsulfone) Material Specification
Properties and testing results for the 3D printing material
| MECHANICAL PROPERTIES | TEST METHOD | ENGLISH | METRIC |
|---|---|---|---|
| Tensile Strength (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 8,000 psi | 55 MPa |
| Tensile Modulus (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 300,000 psi | 2,100 MPa |
| Tensile Elongation (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 3% | 3% |
| Flexural Strength (Method 1, 0.05”/min) | ASTM D790 | 15,900 psi | 110 MPa |
| Flexural Modulus (Method 1, 0.05”/min) | ASTM D790 | 320,000 psi | 2,200 MPa |
| IZOD Impact, notched (Method A, 23 °C) | ASTM D256 | 1.1 ft-lb/in | 58.7 J/m |
| IZOD Impact, un-notched (Method A, 23 °C) | ASTM D256 | 3.1 ft-lb/in | 165.5 J/m |
| THERMAL PROPERTIES | TEST METHOD | ENGLISH | METRIC |
|---|---|---|---|
| Heat Deflection (HDT) @ 264 psi | ASTM D648 | 372 °F | 189 °C |
| Glass Transition Temperature (Tg) | DMA (SSYS) | 446 °F | 230 °C |
| Coefficient of Thermal Expansion | ASTM D696 | 3.1×10 in/in/°F | 5.5×10 mm/mm/°C |
| Melting Point | ——— | Not Applicable2 | Not Applicable2 |
| ELECTRICAL PROPERTIES | TEST METHOD | VALUE RANGE |
|---|---|---|
| Volume Resistivity | ASTM D257 | 1.5×10 – 5.0×10 ohm-cm |
| Dielectric Constant | ASTM D150-98 | 3.2 – 3.0 |
| Dissipation Factor | ASTM D150-98 | .0015 – .0011 |
| Dielectric Strength | ASTM D149-09, Method A | 290 – 80 V/mil |
| ENVIRONMENTAL RESISTANCE | 24 HOURS @ 23 °C (73 °F) | 24 HOURS @ 100 °C (212 °F) |
|---|---|---|
| Antifreeze (Prestone), 50% | Passed | Passed |
| Gasoline-Unleaded | Passed | Not tested |
| Motor Oil 10W-40 | Passed | Passed |
| Power Steering Fluid | Passed | Passed |
| Transmission Fluid | Passed | Passed |
| Windshield Washer Fluid, 50% | Passed | Not tested |
| OTHER | TEST METHOD | VALUE |
|---|---|---|
| Specific Gravity | ASTM D792 | 1.28 |
| Rockwell Hardness | ASTM D785 | M86 |
