Stratasys F770

Print big with the Stratasys F770™ large format 3D printer. 3D printing large, complex parts is now more affordable, reliable and easy.

Industrial scale printing. Simplified.

Print big without the high capital investment of exclusive, large format 3D printers.

The Stratasys F770 3D printer embodies the same industrial-grade components and design philosophy that make FDM Technology a class leader for reliability and consistent performance. It is proven technology that simply works.

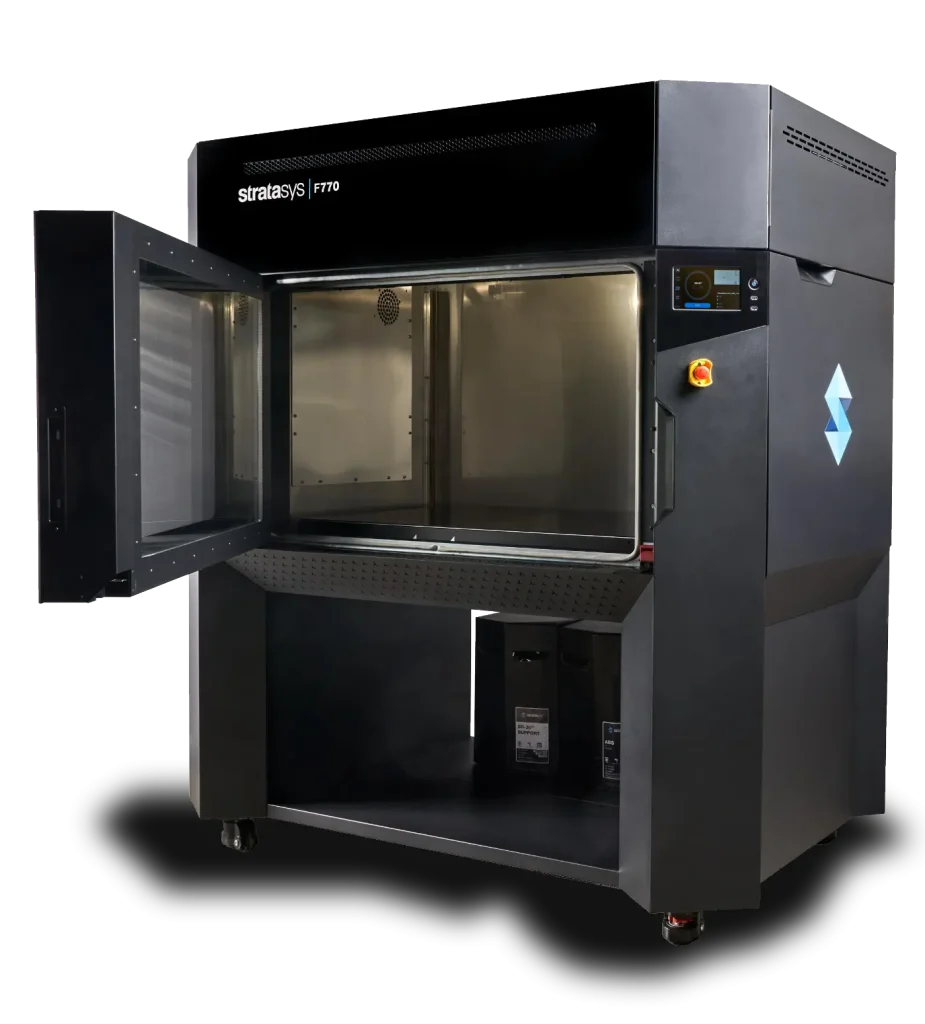

Stratasys F770 machine

Stratasys F770 Features

Large Build Size

Build Envelope of 1000 x 610 x 610 mm / 372,000 cm3 (39.4 x 24 x 24 in. / 22,677 in3). Maximum length on the diagonal is 1,171 cm (46.1 in.)

Easy Installation and Operation

3D printing with the Stratasys F770 is straightforward and requires no specialized training. The Large Format 3D Printer is designed with plug-and-print simplicity so virtually anyone can print large, complex parts quickly and easily.



Thermal Management

Get accurate print results along with the repeatability and reliability that FDM Technology™ is known for. Stratasys FDM build chamber design is time-tested, ensuring precise thermal management across the build platen. This gives you consistent, successful print results, whether parts are big or small.

Reliable FDM Production Materials

The F770 gives you access to widely used engineering-grade thermoplastic materials and Stratasys FDM reliability. It comes equipped with MTConnect, ready to plug into your smart factory floor.

Lights Out, 24/7 Operation

3D printing with the F770 is also a lights-out, 24/7 operation. There’s no need to constantly monitor the printer while it’s operating. Quick-change material canisters are equipped with 200 cubic inches of filament, enabling up to 140 hours of unattended printing.

Stratasys F770 Benefits

Stratasys F770 3D printing

Large Format 3D Printer System Reliability

The Stratasys F770 Large Format 3D Printer development testing included over 33,000 hours of test printing, including 14,300 hours of life testing in the XYZ print planes equating to over seven million meters (over 300 million inches) of travel, validating system durability and reliability.

Over 1700 hours of controller software verification testing was also accomplished.

Stratasys F770 multiple parts

Stratasys F770 3D Printer's Unparalleled Consistency

Large, accurate all-in-one parts. No more joining and assembly for large parts. Consistent builds means that your parts print the same, every time. The printed parts are strong, featuring fully dense material with easy options to control infill and contours.

The CAD-to-print fidelity means that what you design in CAD comes out as a printed part from broad surfaces to exacting details.

Materials available for the Stratasys F770

ABS-M30

ABS-M30

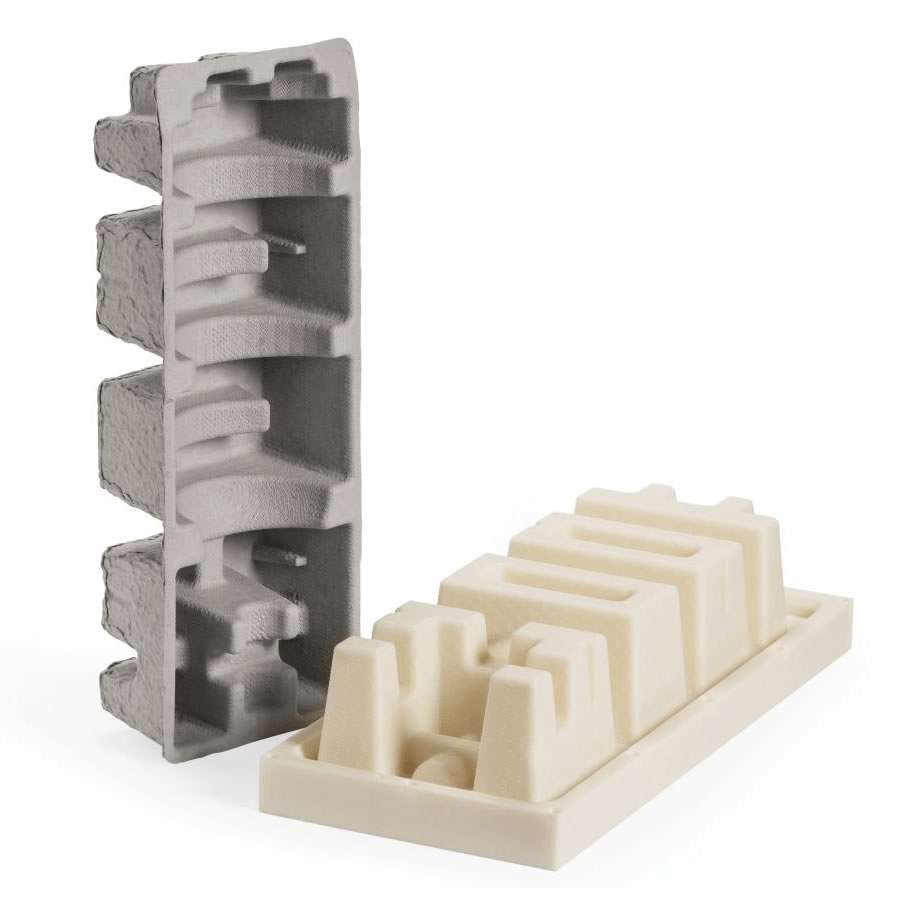

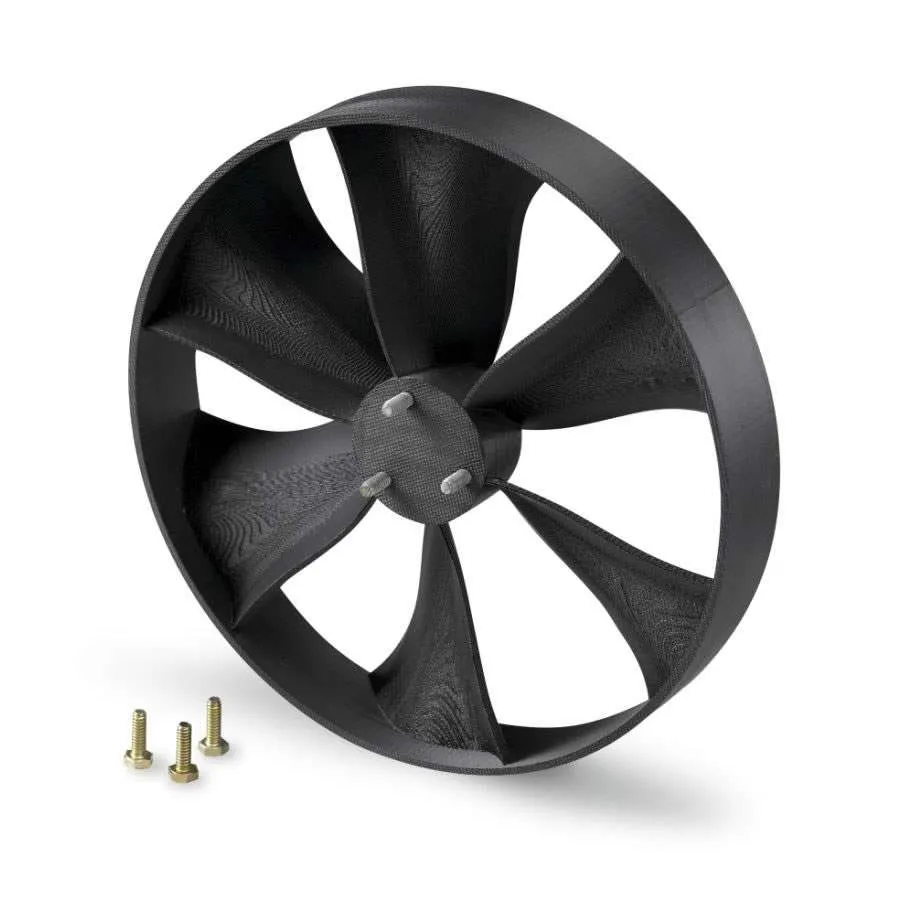

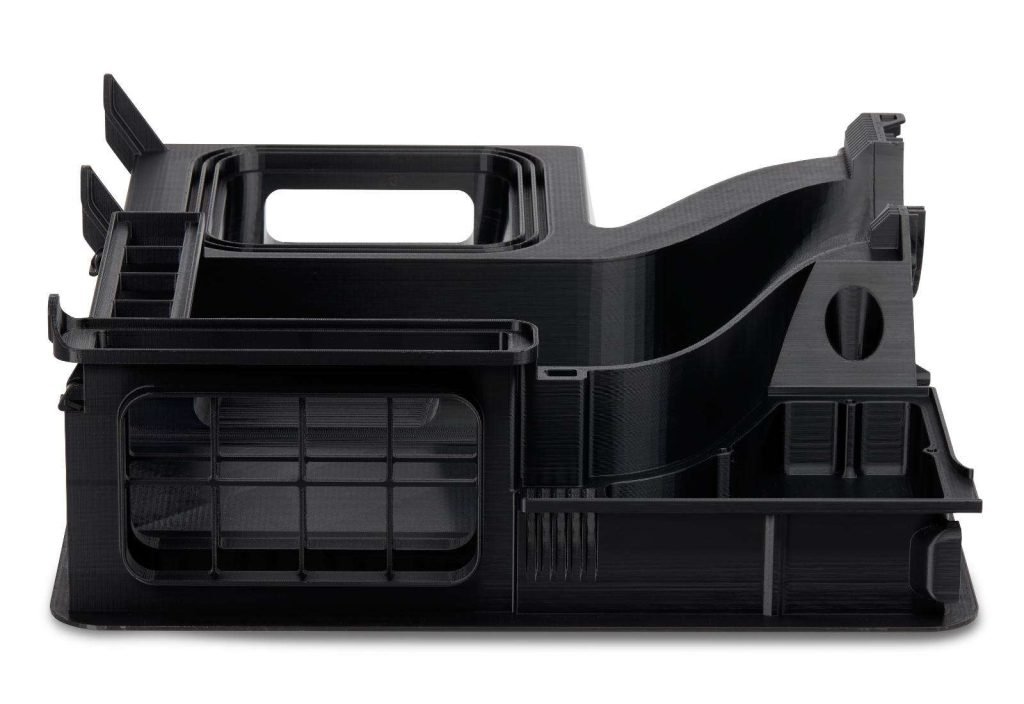

ABS-M30™ is up to 25 to 70 percent stronger than standard ABS and is an ideal material for conceptual modeling, functional prototyping, manufacturing tools and production parts.

ASA

ASA

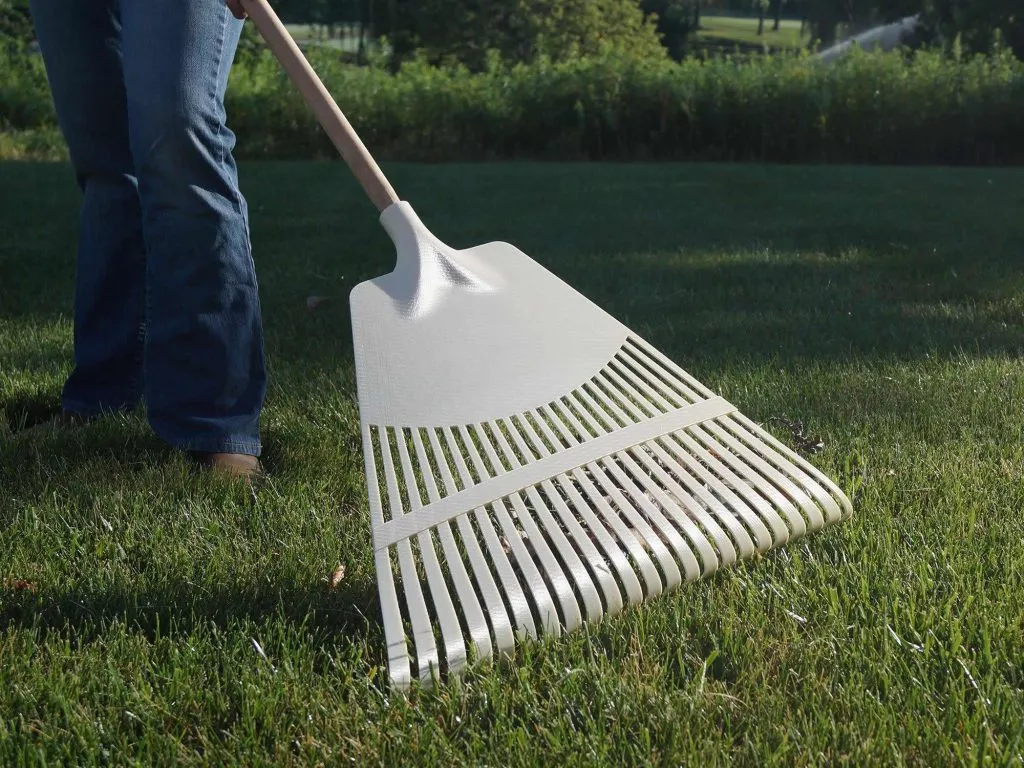

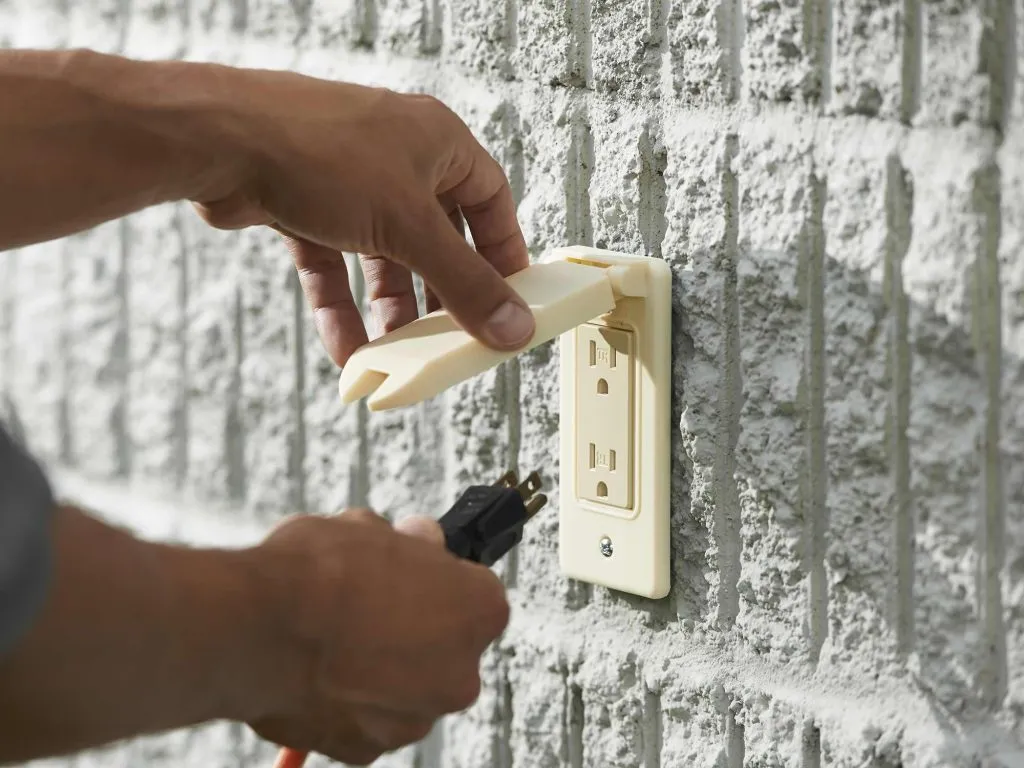

ASA 3D printing material is ideal for parts that are going to be used outdoors. The printed parts are consistently high-quality, with exceptional UV stability.

Stratasys F770 Specifications

FeatureSpecification
System size and weight175 x 124 x 196 cm (69 x 49 x 77 in.)
658 kg (1450 lbs.)
Build Envelope1000 x 610 x 610 mm / 372,000 cm3 (39.4 x 24 x 24 in. / 22,677 in3)
Maximum length on the diagonal – 1,171 cm (46.1 in.)
MaterialsASA – Ivory
ABS-M30™ – Black
SR-30™ soluble support material
Material delivery200 in3 coil box (3277 cm3)
Achievable AccuracyXY part accuracy = +/- 0.254 mm (+/- 0.010 in.) or +/- 0.002 mm/mm (+/- 0.002 in./in.),
whichever is greater
Z part accuracy = +/- 0.200 mm (+/- 0.008 in.) or +/- 0.002 mm/mm (+/- 0.002 in./in.),
plus 1 layer height
SoftwareGrabCAD Print, Insight, Control Center™, MTConnect enabled
Workstation compatabilityWired and wireless (with USB dongle) network interfaces using standard TCP/IP protocols at 100 MBPS minimum
Wireless Network ConnectivityIEEE 802.11n-2009
IEEE 802.11g-2003
IEEE 802.11b-1999
Operating ConditionsOperating temperature 15 °C to 30 °C (59 °F to 86 °F)
Operating Humidity 30-70% – 39 in. clearance on each side of printer
Audible Noise/Acoustics54 dBA
Power Requirements3 phase, 208V, 30A, 5 wire, 47-63 Hz frequency
Regulatory ComplianceCE, cTUVus, RCM, EAC, FCC Part B
Facility RequirementsDouble-door width for installation, vacuum pump within system – no shop air required, forklift uncrating and installation
Installation RequirementsCrate = 186.7 cm W x 146 cm D x 225.4 cm H (73.5 in. W x 57.5 in. D x 88.75 in. H) Crated weight = 907 kg (2000 lbs)

Industries

Stratasys Large Format 3D Printers are used in a wide variety of industry applications

Reverse Engineering

  • Product design
  • Customization
  • 3D documentation

Industrial design and manufacturing

  • Reverse engineering
  • Quality control
  • Rapid prototyping
  • Aerospace

Medical and Life Sciences

  • Orthopedics
  • Prosthetics
  • Plastic surgery
  • Custom wheelchairs

Science and education

  • Research
  • Training
  • Online museums

Art and design

  • Heritage preservation
  • Architecture
  • CGI
  • Fashion

Example Parts

Example Fused Deposition Modeling (FDM) prototypes and production parts in a wide range of materials and colors. Pick on the images below to enlarge:

Fused Deposition Modeling (FDM) Technology

Advantages of parts built with a Stratasys Large Format 3D Printer

Tough long-lasting parts

High-performance thermoplastics combined with precision extrusion processes let us build strong, long-lasting and dimensionally stable parts;

TriMech production grade FDM solutions provide clients with the best accuracy, repeatability, and material selection of any 3D printing technology.

Used commonly in aerospace, automotive and transportation, manufacturing, and more, this process is helping clients do more, do it better, and do it for less.

Meet production demands

TriMech FDM production systems are as versatile and durable as the parts they produce.

With the largest full-convection build envelopes and material capacities in their class, we can provide longer, uninterrupted build times, bigger parts and higher quantities than other additive manufacturing service providers.

In combination with our material portfolio, we are challenging the limits of what can be done with FDM technology.

Gain new possibilities

TriMech’s FDM specialists will help to streamline your business processes from design through manufacturing, eliminating the need for physical inventories and moving beyond the limitations of traditional manufacturing, whilst offering unparalleled efficiency, design freedom, and production agility.

Leverage the best solution on the market without the capital expense of in-house equipment: we deliver a tailored service, combining 20+ years of experience with industry-leading FDM technologies. Regardless of industry, we’ll help optimize timelines, costs, and approach.
