Stratasys F900

The Stratasys F900 is the ultimate manufacturing-grade production 3D printer with the widest array of engineering-grade materials, largest build area, and highest accuracy.

Ultimate Production 3D Printer

The Stratasys F900 3D System has ALL that the Fortus printers family has to offer, on a bigger scale!

The ultimate manufacturing-grade production 3D printer, printing widest array of engineering-grade materials, maximum throughput, largest build platform, highest accuracy and precision built for reliability, repeatability, and durability for demanding manufacturing production.

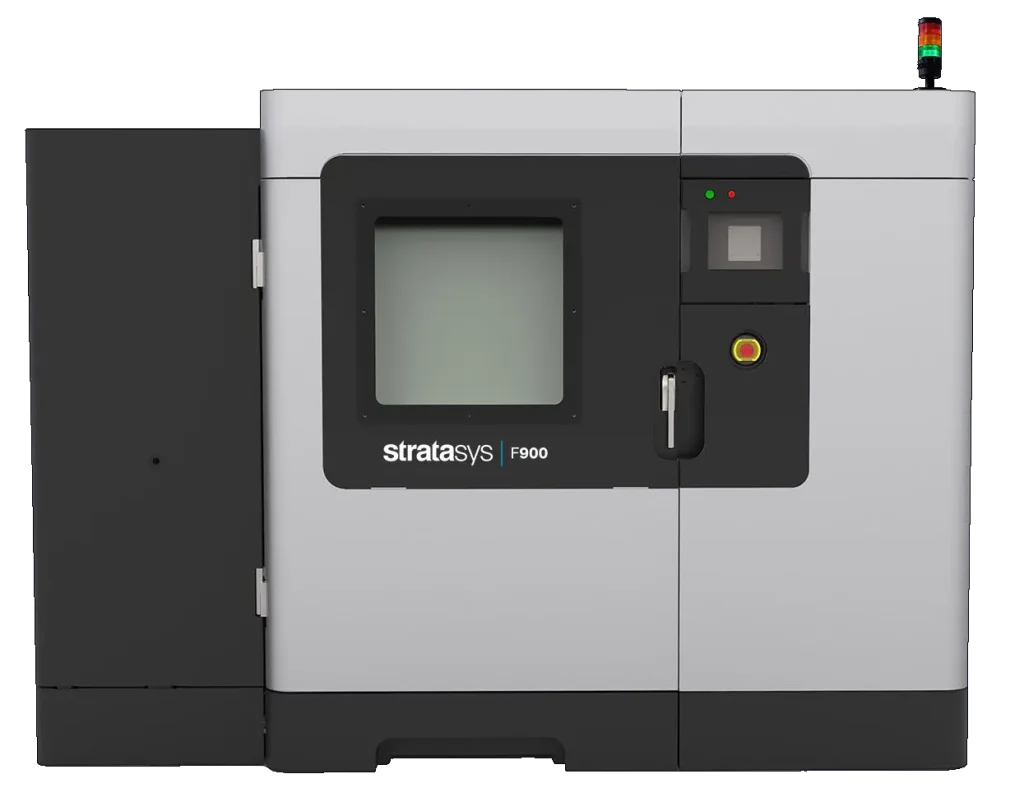

Stratasys F900 machine

Stratasys F900 3D Printer Features

Large Build Size

Stratasys F900 net build size: 914 x 610 x 914 mm (36 x 24 x 36 in.) Platen supports two build zones for either a small or large build sheet

5 Material Thicknesses

You can fine-tune your desired balance between Fused Deposition Modeling’s finest possible feature detail and the fastest build.

15 FDM Production Materials

The Stratasys F900 provides a wide range of thermoplastics with advanced mechanical properties so your parts can endure high heat, caustic chemicals, sterilization, and high impact applications.

Stratasys F900 Benefits

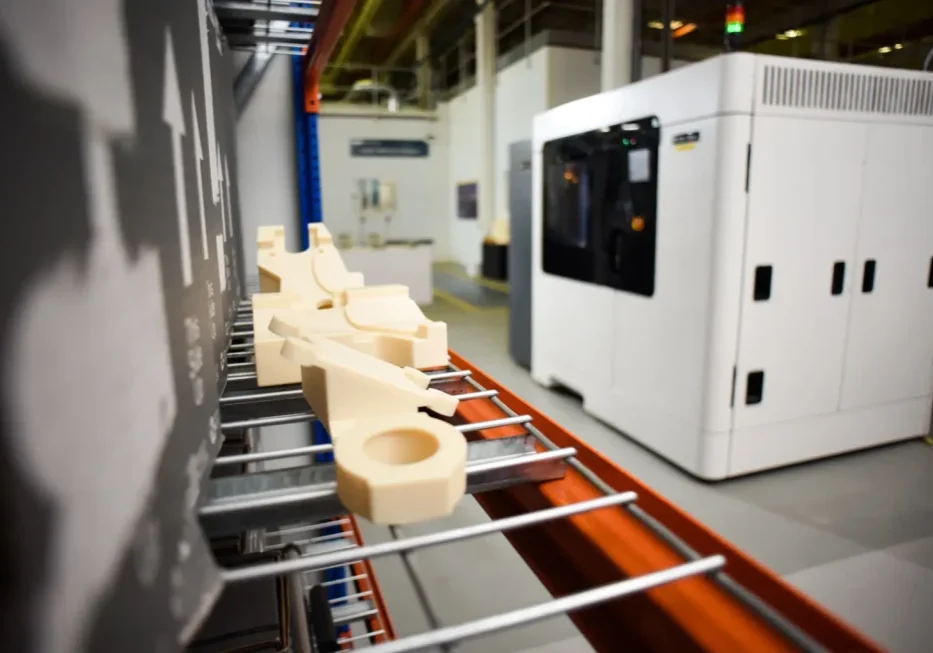

Stratasys F900 parts

Advanced FDM technology

Fortus systems are based on Stratasys® FDM technology. FDM builds parts in production-grade thermoplastics, enabling the most durable parts.

Fortus systems use a wide range of thermoplastics with advanced mechanical properties so your parts can endure high heat, caustic chemicals, sterilization and high impact applications.

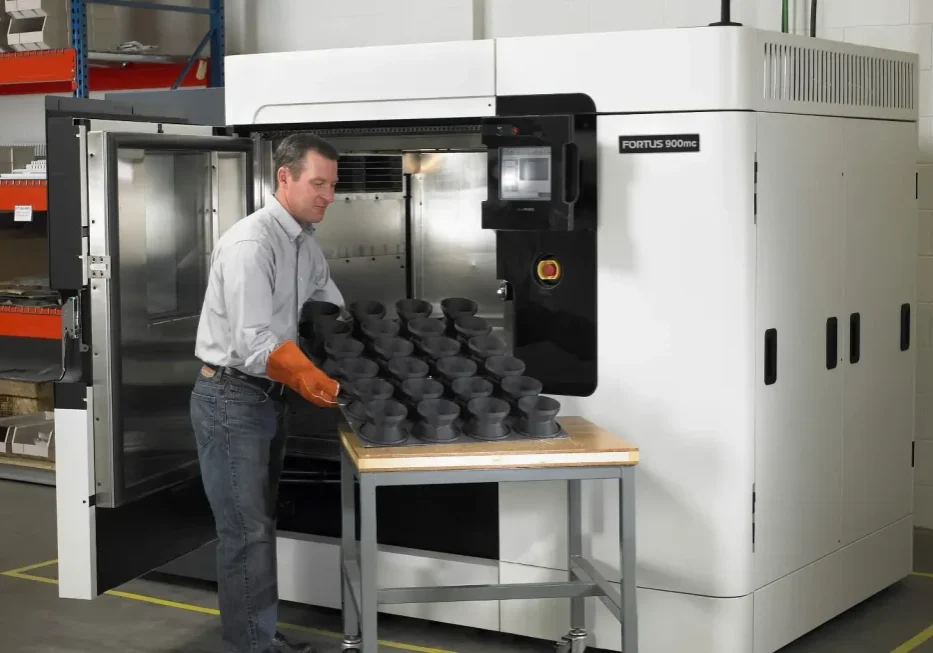

Stratasys F900 production

Easy to operate and safe to use

Compared to other production 3D printers, the Stratasys F900 is easy to operate and maintain as there are no messy powders to handle and contain. They’re so simple, an operator can be trained to operate a Fortus system in less than 30 minutes.

You can install a Stratasys F900 Production 3D printer just about anywhere. No special venting is required because Stratasys systems produce no noxious fumes, chemicals or waste.

Materials available for the Stratasys F900

ABS-ESD7

ABS-ESD7

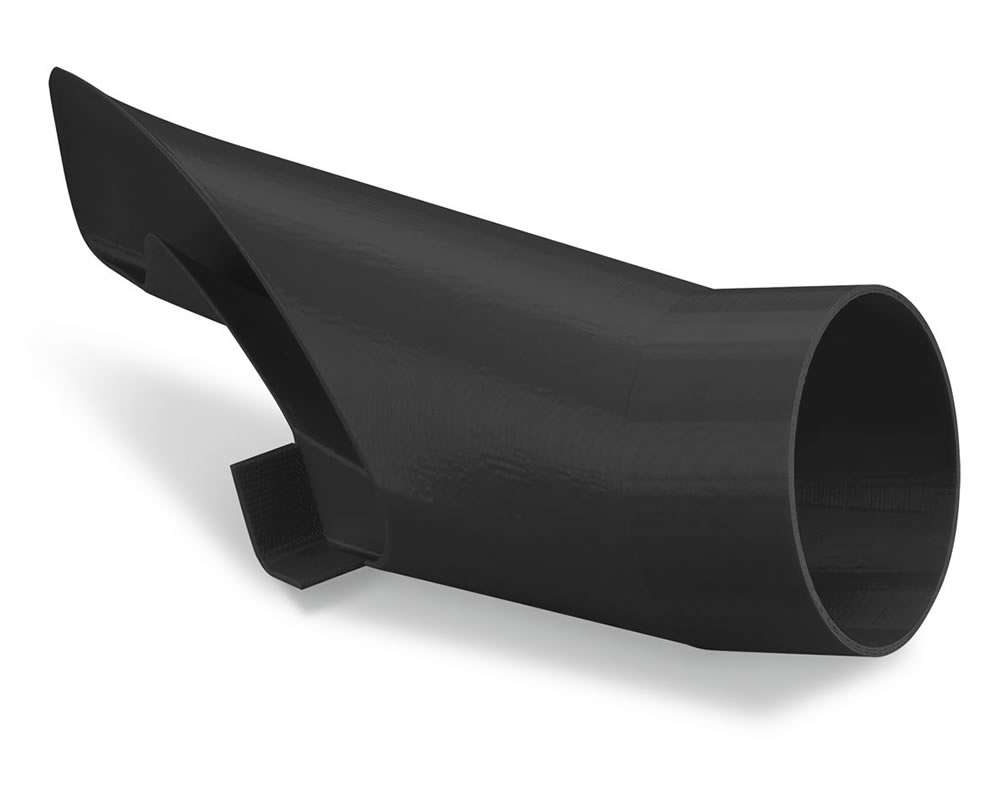

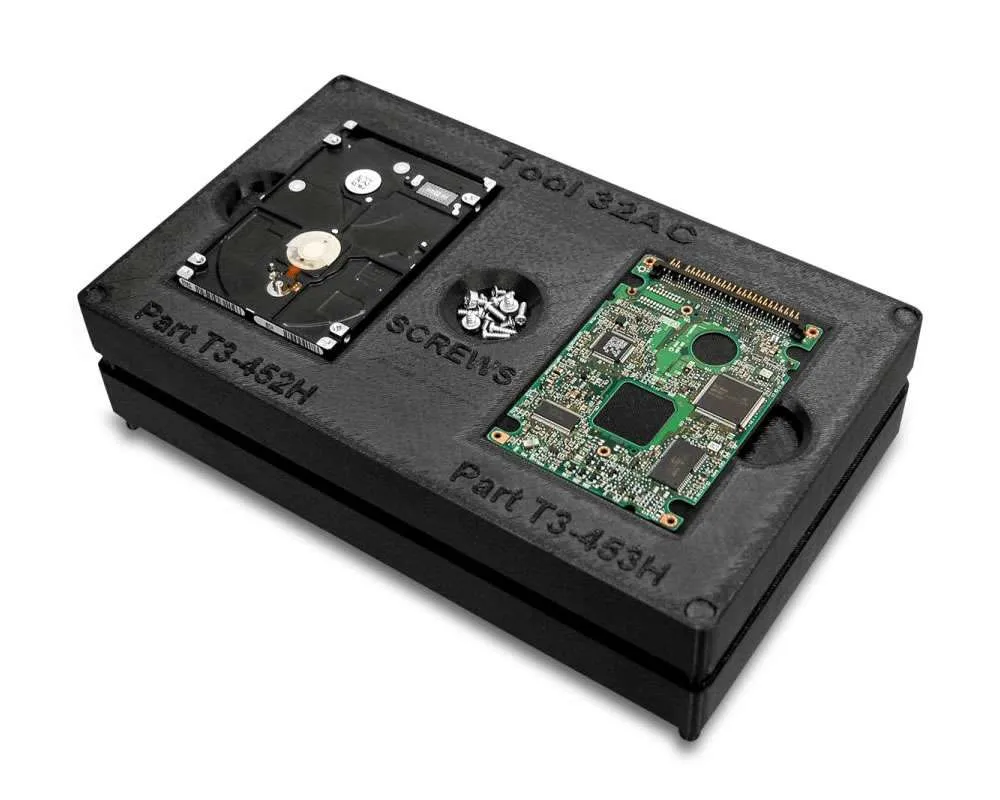

ABS-ESD7™ is an ABS thermoplastic with static dissipative properties for applications where a static charge can damage products, impair their performance or cause an explosion.

ABS-M30

ABS-M30

ABS-M30™ is up to 25 to 70 percent stronger than standard ABS and is an ideal material for conceptual modeling, functional prototyping, manufacturing tools and production parts.

ABS-M30i

ABS-M30i

ABS-M30i is a high strength material well suited for the medical, pharmaceutical and food packaging industries, parts are biocompatible (ISO 10993 USP Class VI)

Antero 800NA

Antero 800NA

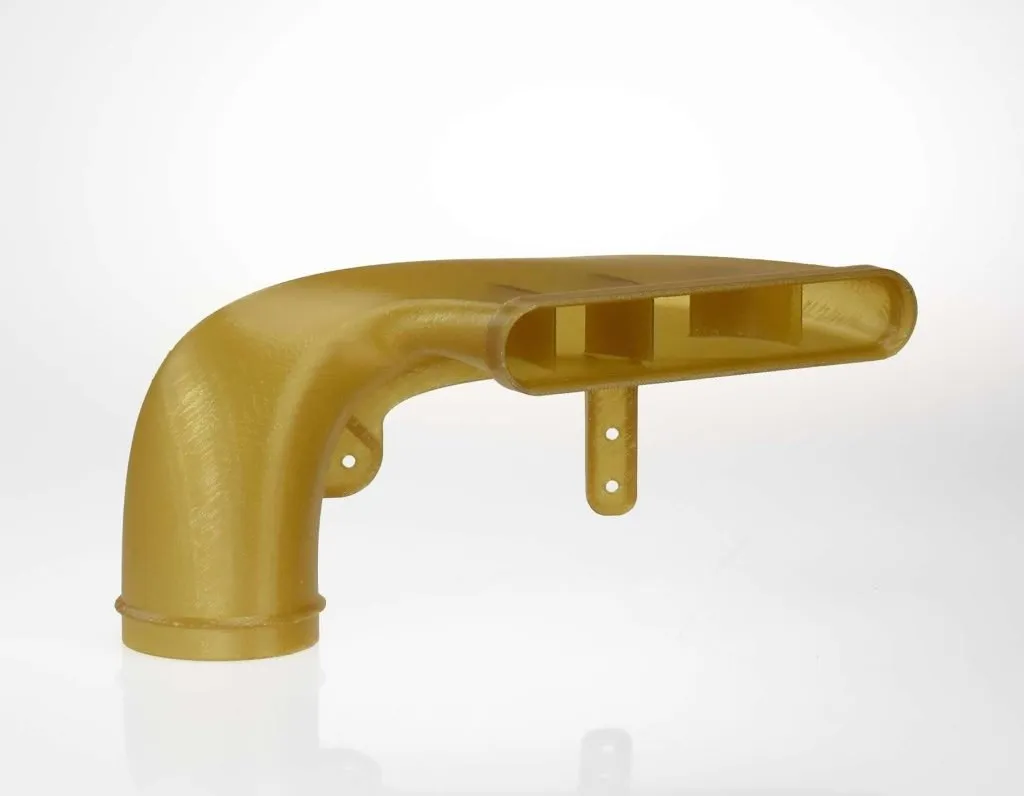

Antero 800NA is a PEKK-based FDM 3D printing thermoplastic. It delivers excellent strength, toughness and wear-resistant properties of PEKK material.

ASA

ASA

ASA 3D printing material is ideal for parts that are going to be used outdoors. The printed parts are consistently high-quality, with exceptional UV stability.

FDM Nylon 12

FDM Nylon 12

FDM Nylon 12 material is ideal for repetitive snap fits, high fatigue resistance, strong chemical resistance and press (friction) fit inserts.

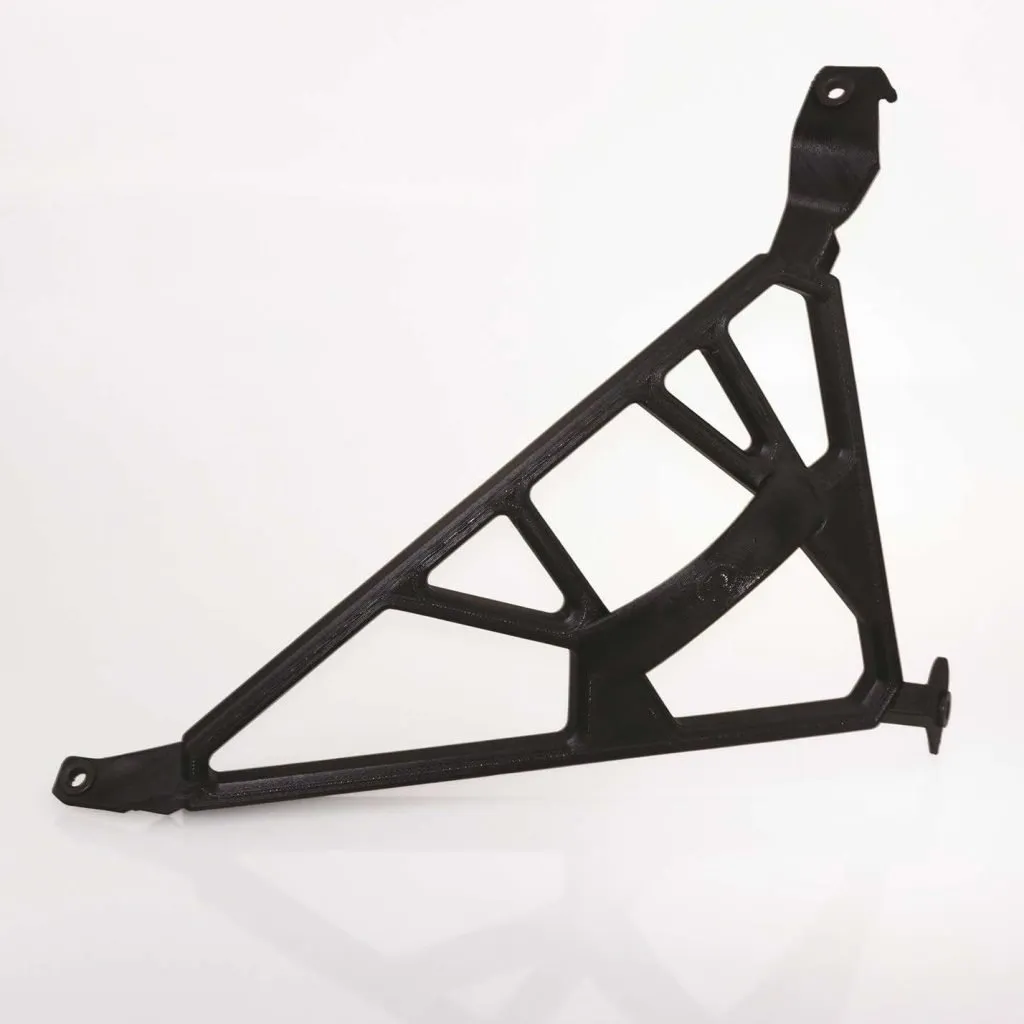

FDM Nylon 6

FDM Nylon 6

%title% material combines strength and toughness for applications that require strong, customized parts and tooling that need to last longer.

PC-ABS

PC-ABS

PC-ABS material is one of the most widely used industrial thermoplastics. PC-ABS offers superior strength and heat resistance of PC and the flexibility of ABS.

PC-ISO

PC-ISO

PC-ISO (polycarbonate-ISO), an industrial thermoplastic, which in its raw state, is biocompatible (ISO 10993 USP Class VI) and can be gamma or EtO sterilized.

ST-130

ST-130

ST-130 is a model material specifically designed for Sacrificial Tooling that simplifies the production of hollow composite parts.

ULTEM 1010

ULTEM 1010

ULTEM 1010 resin is a high-performance FDM® thermoplastic that offers excellent strength, thermal stability and the ability to withstand steam autoclaving.

ULTEM 9085

ULTEM 9085

ULTEM 9085 resin is a flame-retardant high-performance thermoplastic for digital manufacturing and rapid prototyping.

Stratasys F900 Specifications

FeatureSpecification
Model MaterialABS-ESD7, ABSi, ABS-M30, ABS-M30i, Antero 800NA, PC, PC-ABS, PC-ISO, PPSF, ULTEM 9085, ULTEM 1010, Nylon 12, Nylon 6, ST- 130, Nylon 12CF™
Layer Thickness0.020 INCH (0.508 MM), 0.013 INCH (0.330 MM), 0.010 INCH (0.254 MM), 0.007 INCH (0.178 MM). 0.005 INCH (0.127 MM)
Net Build Size (XxYxZ)914 x 610 x 914 mm (36 x 24 x 36 in.)
Machine Dimensions2772 x 1683 x 2027 mm (109.1 x 66.3 x 79.8 in.)
Machine WeightWith crate: 3287 kg (7247 lbs.), without crate: 2869 kg (6325 lbs.)



MaterialLayer ThicknessSupport
Structure
Colors
0.020″ (0.508 mm)0.013″ (0.330 mm)0.010″ (0.254 mm)0.007″ (0.178 mm)
ASASolubleBlack, Dark Blue, Dark Gray, Green, Light Gray, Yellow, White, Orange, Ivory, Red
ABS-M30SolubleIvory, Black, Red, Blue, Dark Gray
ABS-M30iSolubleIvory
Antero 800NABreakawayNatural
ABS-ESD7SolubleBlack
PC-ABSSolubleBlack
PC-ISOBreakawayTranslucent Natural, White
PCBreakaway, SolubleWhite
ULTEM® 9085 resinBreakawayTan, Black
ULTEM 1010 resinBreakawayNatural
PPSFBreakawayTan
FDM Nylon 12CF™SolubleBlack
FDM Nylon 12™SolubleBlack
FDM Nylon 6™SolubleBlack
ST-130™BreakawayNatural

Industries

Stratasys 3D Printers are used in a wide variety of industry applications

Reverse Engineering

  • Product design
  • Customization
  • 3D documentation

Industrial design and manufacturing

  • Reverse engineering
  • Quality control
  • Rapid prototyping
  • Aerospace

Medical and Life Sciences

  • Orthopedics
  • Prosthetics
  • Plastic surgery
  • Custom wheelchairs

Science and education

  • Research
  • Training
  • Online museums

Art and design

  • Heritage preservation
  • Architecture
  • CGI
  • Fashion

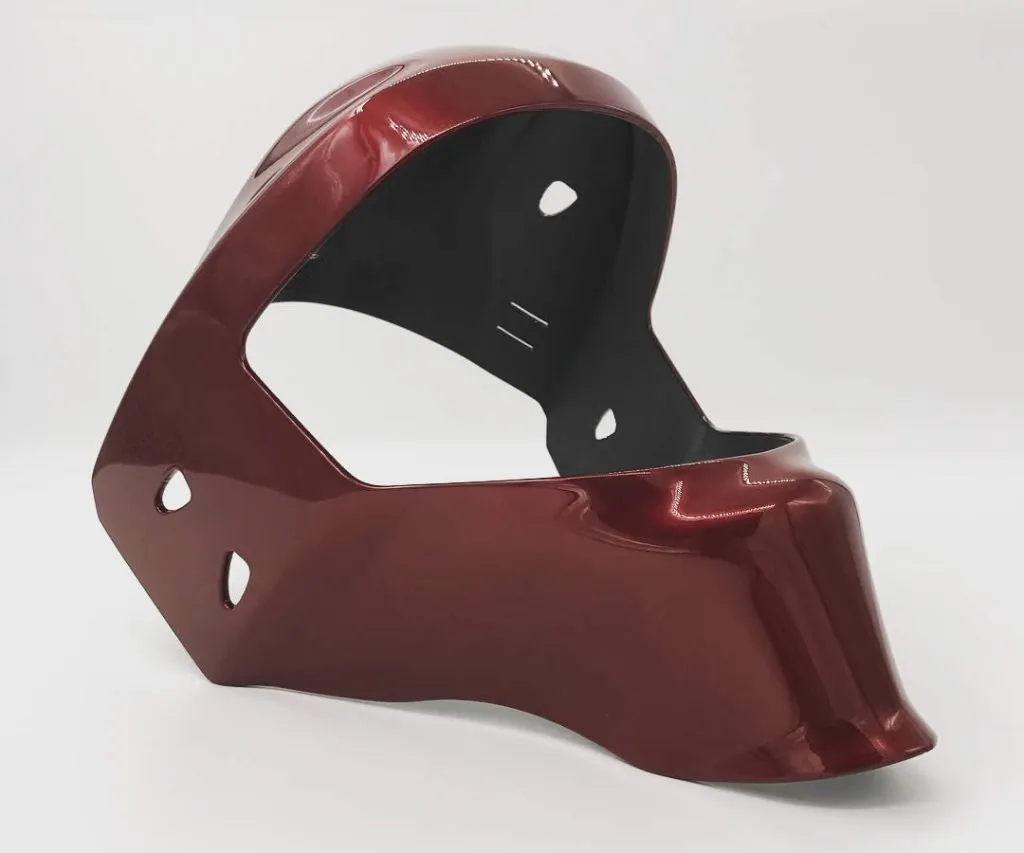

Example Parts

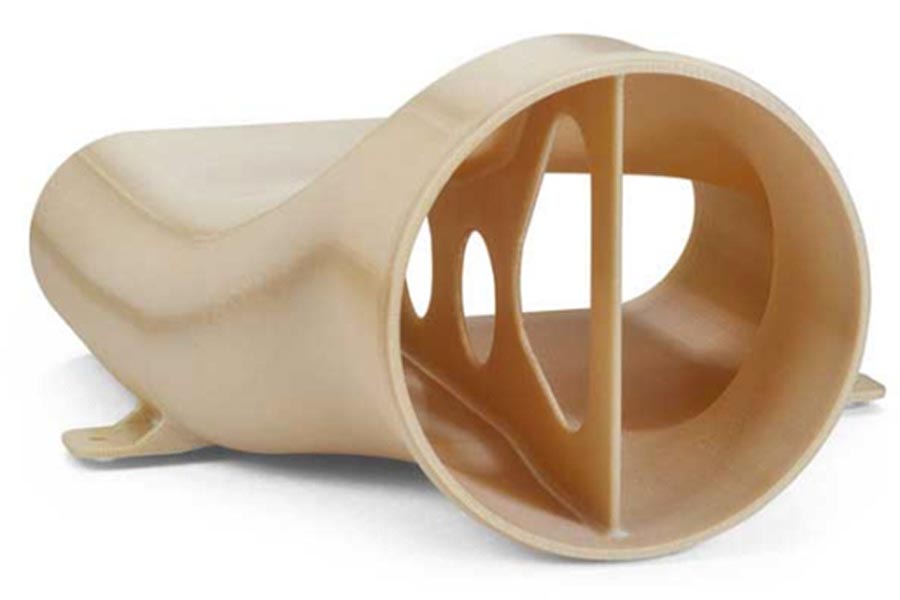

Example Fused Deposition Modeling (FDM) prototypes and production parts in a wide range of materials and colors. Pick on the images below to enlarge:

Fused Deposition Modeling (FDM) Technology

Advantages of parts built with a Stratasys FDM Machine

Tough long-lasting parts

High-performance thermoplastics combined with precision extrusion processes let us build strong, long-lasting and dimensionally stable parts;

TriMech production grade FDM solutions provide clients with the best accuracy, repeatability, and material selection of any 3D printing technology.

Used commonly in aerospace, automotive and transportation, manufacturing, and more, this process is helping clients do more, do it better, and do it for less.

Meet production demands

TriMech FDM production systems are as versatile and durable as the parts they produce.

With the largest full-convection build envelopes and material capacities in their class, we can provide longer, uninterrupted build times, bigger parts and higher quantities than other additive manufacturing service providers.

In combination with our material portfolio, we are challenging the limits of what can be done with FDM technology.

Gain new possibilities

TriMech’s FDM specialists will help to streamline your business processes from design through manufacturing, eliminating the need for physical inventories and moving beyond the limitations of traditional manufacturing, whilst offering unparalleled efficiency, design freedom, and production agility.

Leverage the best solution on the market without the capital expense of in-house equipment: we deliver a tailored service, combining 20+ years of experience with industry-leading FDM technologies. Regardless of industry, we’ll help optimize timelines, costs, and approach.
