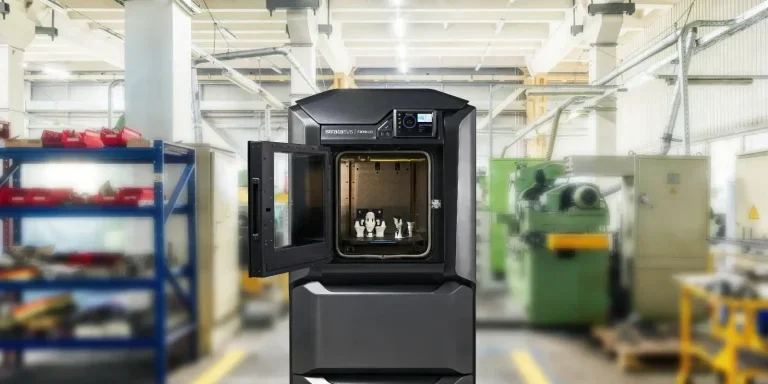

Stratasys F123CR Series

The Stratasys F123CR Series (F190CR and F370CR) 3D printers supplement fixture and part fabrication with FDM composite 3D printing to gain speed, throughput, and cost benefits

Composite 3D Printer

Meet deadlines and stay on budget with high-strength composite printing.

Make work holding fixtures, soft jaws, and component parts with composite 3D printing in a fraction of the time and cost it takes to machine a metal equivalent. Stratasys F123CR 3D printers supplement traditional fabrication technologies, allowing industrial manufacturers to replace metal components with high-strength 3D printed composite parts.

This accelerates throughput while avoiding the opportunity cost of using production resources or the lead time of outsourcing.

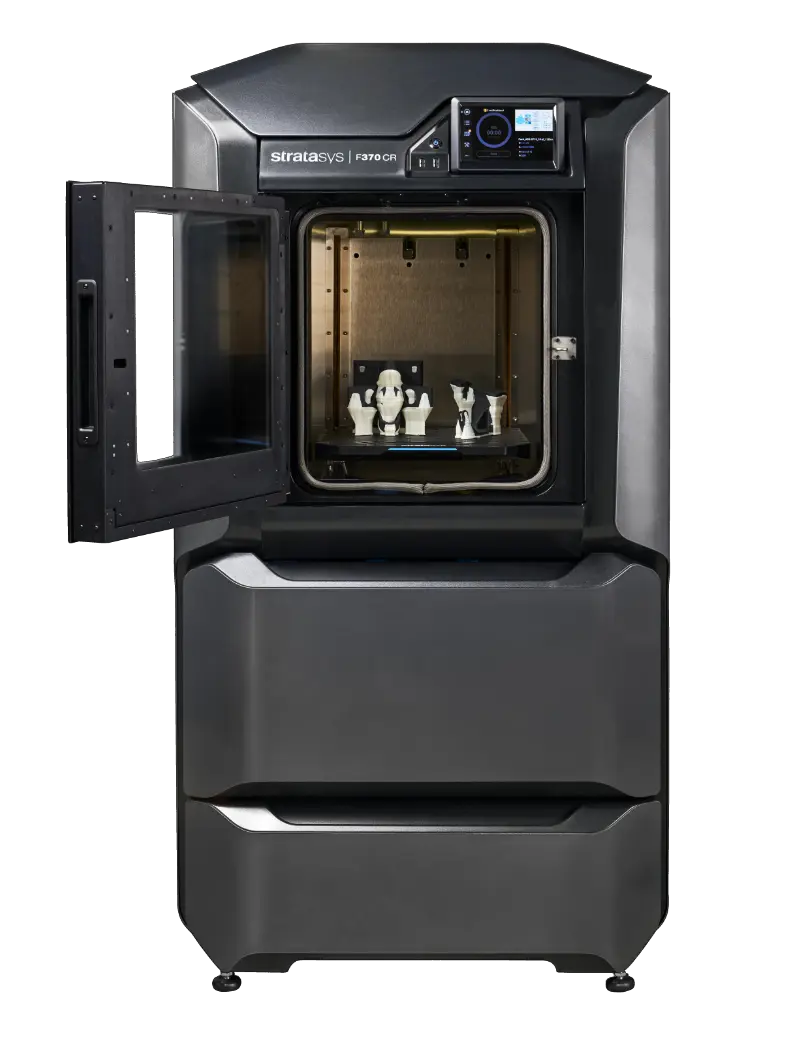

Stratasys F370CR

Stratasys F190CR & Stratasys F370CR Features

Heated Build Chamber

The fully heated build chamber enables consistent print results with multiple infills from sparse to fully dense.

Production Monitoring

A built-in camera provides visual remote print monitoring, plus GrabCAD Print™ and Insight™ software provide a simple workflow and in-depth print process control.

Automatic Material Change

Auto changeover capability on the Stratasys F370CR extends print times and printers are mounted on casters for easy mobility.

Multiple FDM Production Materials

The Stratasys F123CR series gives the option of up to 8 different Fused Deposition Modeling materials (ABS-CF10, ABS-ESD7, ABS-M30, ASA, PC-ABS, TPU 92A, Diran 410MF07, FDM Nylon-CF10) along with easy-to-remove soluble support material.

Stratasys F123CR Series Benefits

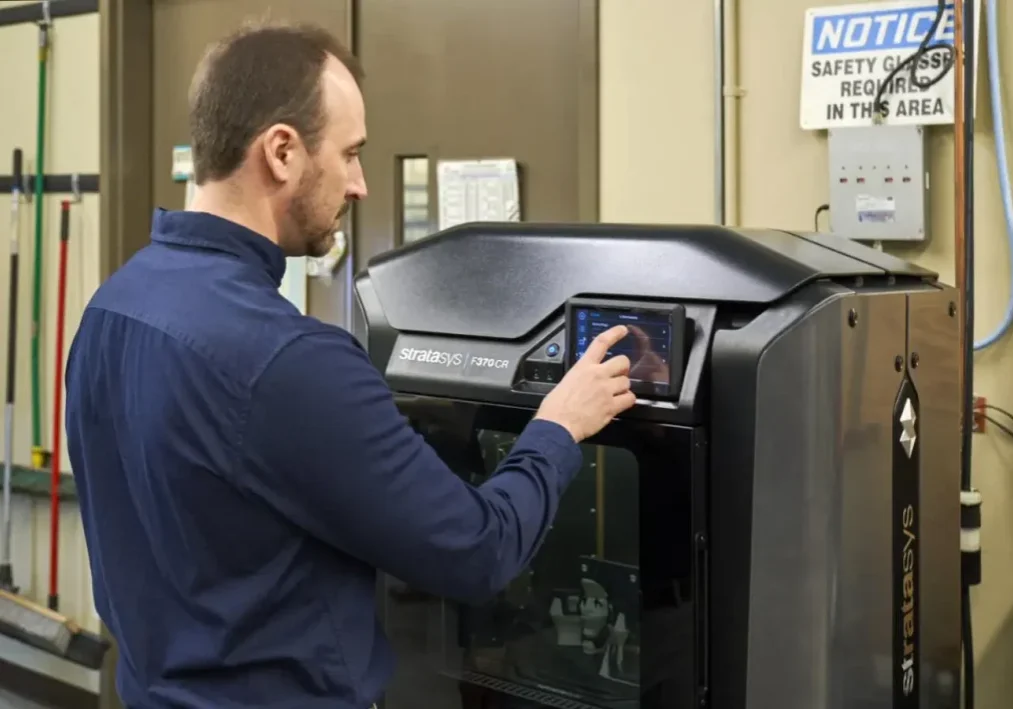

Stratasys F123CR operation

Simple Setup & Operation

  • GrabCAD Print software makes setting up print jobs simple, just import the part’s CAD file and the software generates toolpaths and supports
  • Multiple resolutions will print from the same print head, avoiding tooling changes
  • Press print and walk away. No oversight needed until print job is complete.
  • The F370CR features auto-changeover, meaning you won’t have to interrupt a build to refill materials

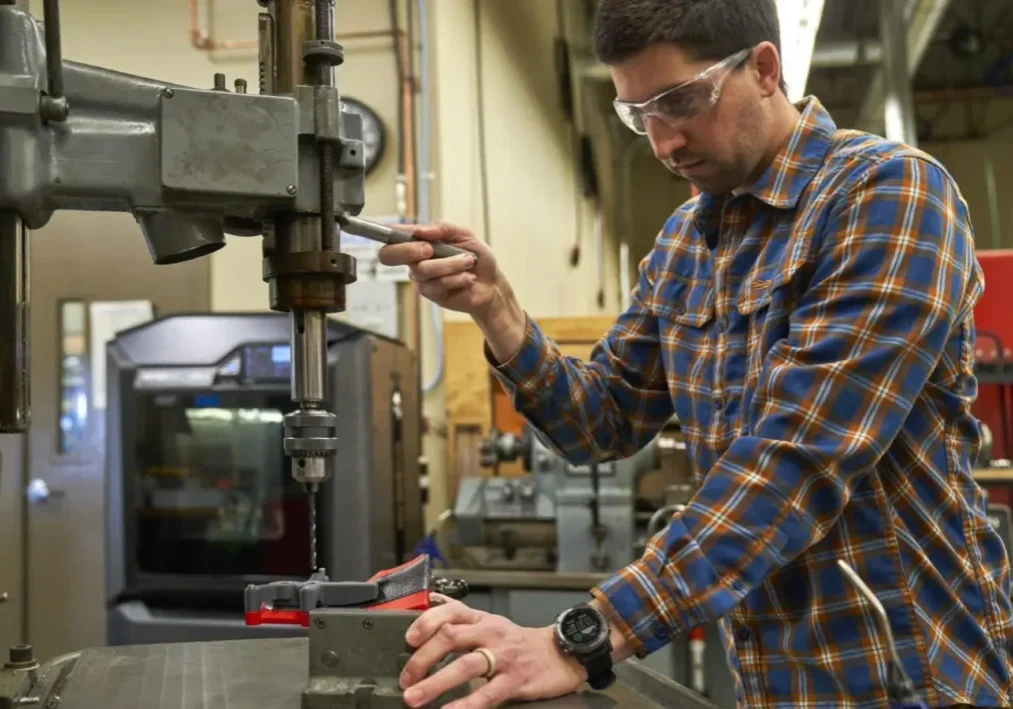

Stratasys F123CR application

Augment Machining

  • Supplement traditional fabrication technologies with composite 3D printing
  • Replace traditionally metal components with high-strength 3D printed composite parts
  • Avoid opportunity cost of using limited production resources or the lead time of outsourcing
  • Produce fixtures, soft jaws, component parts and more using composite 3D printing for a fraction of the time and cost compared to metal machining
  • Strong functional prototypes and end use parts
Stratasys F123CR metal press

Unmatched Uptime

  •  Stratasys F123CR printers are built on the same platform as the proven F123 Series, with a verified 99%- uptime and a 99%-dimensional repeatability performance*
  • Combining hardened components and print heads, sealed, desiccated filament bays, and a fully heated build chamber to offer unmatched reliability
  • New heads designed for printing composite materials with extended life

*Stratasys 2020 Repeatability and Reliability study for F370, Fortus 450mc and F900 printers.

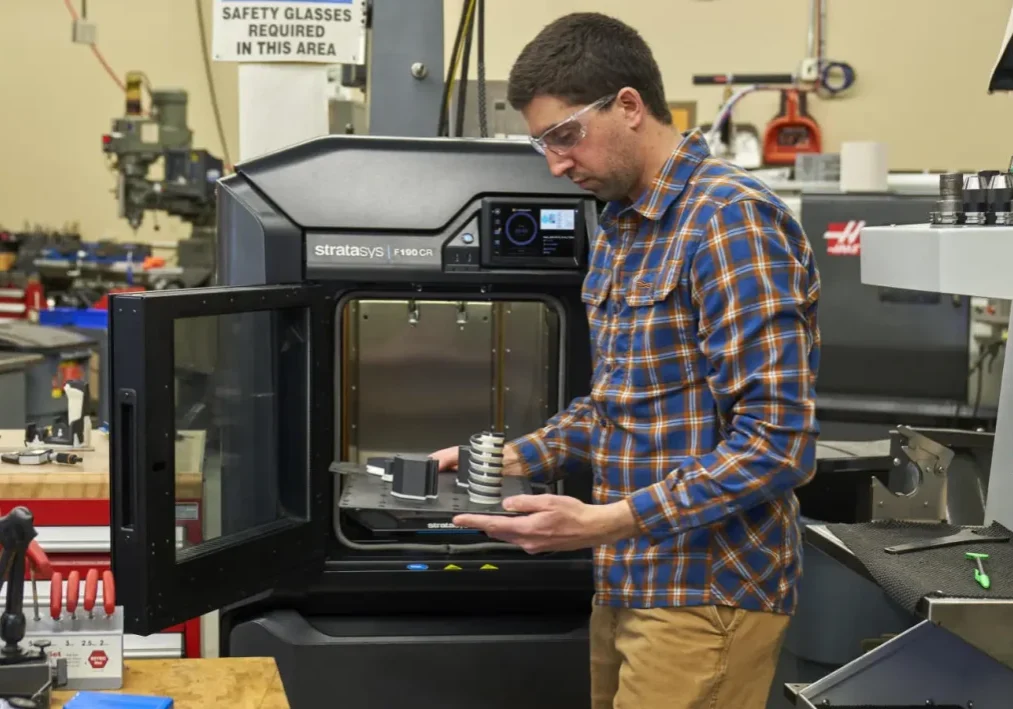

Using Stratasys F123CR

Unmatched composite parts with reliability and repeatability

The F123CR composite material 3D printers are built on the same platform as the highly reliable F123 Series FDM 3D printers, with a demonstrated 99% uptime and 99% dimensional repeatability performance.

  • Strong & Durable Composite Parts: Composite 3D printing materials offer the mechanical properties required for industrial-grade low-volume component and production parts.
  • Strong workholding fixtures: Carbon fiber materials allow the substitution of machined metal for strong and rigid 3D printed soft jaws, fixtures and manufacturing aids.



Materials available for the Stratasys F123CR Series

ABS-CF10 (Carbon Fiber)

ABS-CF10 (Carbon Fiber)

Production-grade Thermoplastic Stratasys ABS-CF10 combines standard ABS (acrylonitrile butadiene styrene) material with 10% chopped carbon fiber by weight. The result is a low moisture-sensitive FDM® thermoplastic 50% stiffer and 15% stronger than standard ABS 3D...

ABS-ESD7

ABS-ESD7

ABS-ESD7™ is an ABS thermoplastic with static dissipative properties for applications where a static charge can damage products, impair their performance or cause an explosion.

ABS-M30

ABS-M30

ABS-M30™ is up to 25 to 70 percent stronger than standard ABS and is an ideal material for conceptual modeling, functional prototyping, manufacturing tools and production parts.

ASA

ASA

ASA 3D printing material is ideal for parts that are going to be used outdoors. The printed parts are consistently high-quality, with exceptional UV stability.

Diran 410MF07

Diran 410MF07

Diran 410MF07 material is nylon-based mineral-filled 7% by weight. Provides good toughness and impact strength combined with resistance to hydrocarbon-based chemicals.

FDM TPU 92A

FDM TPU 92A

FDM TPU 92A is a polyurethane 3D printing material that exhibits high elongation, superior toughness, durability and abrasion resistance.

PC-ABS

PC-ABS

PC-ABS material is one of the most widely used industrial thermoplastics. PC-ABS offers superior strength and heat resistance of PC and the flexibility of ABS.

Stratasys F123CR Series Specifications

FeatureStratasys F190CRStratasys F370CR
Model MaterialsABS-M30, ASA, FDM® TPU 92A, ABS-CF10, FDM Nylon-CF10ABS-M30, ASA, FDM TPU 92A, ABS-ESD7™, PC-ABS™, Diran™ 410MF07, ABS-CF10, FDM Nylon-CF10
Material Delivery2 material spool bays, 1 for model, 1 for support located in a drawer on the front of the unit4 material spool bays, 2 for model, 2 for support located in a drawer on the front of the unit
SoftwareGrabCAD Print software, MTConnect enabledGrabCAD Print and Insight software, MTConnect enabled
Build Tray Dimensions305 mm x 254 mm x 305 mm (12 x 10 x 12 in.)355 mm x 254 mm x 355 mm (14 x 10 x 14 in.)
System size & weight1626 x 864 x 711 mm (64 x 34 x 28 in.) 500 lbs ( 227 Kg)
AccuracyParts are produced within an accuracy of +/- .200 mm (.008 in), or +/- .002 mm/mm
(.002 in/in), whichever is greater
Network ConnectivityWired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector
Wireless-ready: IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP Encryption:
CCMP, TKIP
Operating EnvironmentOperating: Temperature: 15 – 30 ºC (59 – 86 ºF), Humidity: 30 – 70% RH
Storage: Temperature: 0 – 35 ºC (32 – 95 ºF), Humidity: 20 – 90% RH
Power Requirements100-132V/15A or 200–240V/7A. 50/60 Hz
Operating SystemWindows 10 (64 bit only) and Window 11 with a minimum of 4GB RAM (8GB or more recommended)

Material Thickness

Layer Thickness0.013 in.
(0.330 mm)
0.010 in.
(0.254 mm)
0.007 in.
(0.178 mm)
0.005 in.
(0.127 mm)
ABS-M30
ASA
PC-ABS
ABS-ESD7
Diran 410MF07
FDM TPU 92A
ABS-CF10 (1)
FDM Nylon-CF102 (2)
  1. Hardened print head is recommended for extended head life but will also operate using standard F123 and ABS-CF10 print heads.
  2. Dedicated FDM Nylon-CF10 hardened print head required.

Industries

Stratasys 3D Printers are used in a wide variety of industry applications

Architecture & Construction

  • Model making
  • Urban planning
  • Concepts

High Tech & Consumer Products

  • Aesthetic and function testing
  • Concepts and prototypes
  • Sales and marketing models

Industrial Design & Manufacturing

  • Aerospace
  • Automotive
  • Defense
  • Industrial equipment
  • Marine and offshore
  • Oil and gas

Dental, Medical & Life Sciences

  • Anatomical models
  • Medical devices
  • Orthopedics
  • Prosthetics
  • Surgical planning models

Industrial Products, Mold Tool & Die

  • Jigs, fixtures, and assembly tooling
  • Injection molding
  • Silicone molding
  • Sand and investment casting
  • Thermoforming

Example Parts with a Stratasys F123CR 3D printer

Example Fused Deposition Modeling (FDM) parts created with a Stratasys F123CR 3D printer used in production:

Stratasys F123CR Soft Jaw
Stratasys F123CR Press Brake Tool
Stratasys F123CR Fixture

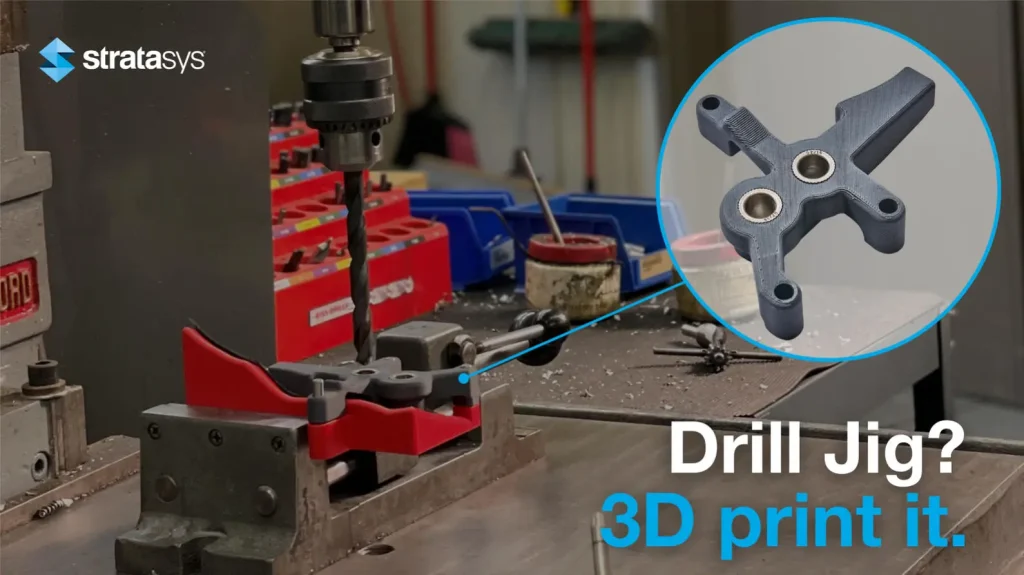

Stratasys F123CR Drill Jig

Fused Deposition Modeling (FDM) Composite 3D Printing Technology

Advantages of composite 3D printing with a Stratasys FDM Machine

Tough long-lasting parts

High-performance thermoplastics combined with precision extrusion processes let us build strong, long-lasting and dimensionally stable parts;

TriMech production grade FDM solutions provide clients with the best accuracy, repeatability, and material selection of any 3D printing technology.

Used commonly in aerospace, automotive and transportation, manufacturing, and more, this process is helping clients do more, do it better, and do it for less.

Meet production demands

TriMech FDM production systems are as versatile and durable as the parts they produce.

With the largest full-convection build envelopes and material capacities in their class, we can provide longer, uninterrupted build times, bigger parts and higher quantities than other additive manufacturing service providers.

In combination with our material portfolio, we are challenging the limits of what can be done with FDM technology.

Gain new possibilities

TriMech’s FDM specialists will help to streamline your business processes from design through manufacturing, eliminating the need for physical inventories and moving beyond the limitations of traditional manufacturing, whilst offering unparalleled efficiency, design freedom, and production agility.

Leverage the best solution on the market without the capital expense of in-house equipment: we deliver a tailored service, combining 20+ years of experience with industry-leading FDM technologies. Regardless of industry, we’ll help optimize timelines, costs, and approach.
