DyeMansion DM60

3D printed part coloring solution for Additive Manufacturing with ISO-certified colors for end-use applications

Industrial Part Coloring

Dye your 3D printed polymer parts in almost any color of choice and turn your models into high-value, colorful products

Color variety is an important basis for a technology that promises to redesign the manufacturing process of the future. The DyeMansion DM60 makes it possible to replicate nearly every imaginable color on 3D-printed polymer parts for the first time.

DyeMansion prosthesis

DyeMansion DM60 Features

Color 3D Printed Parts

Color your 3D printed raw parts in almost any color of choice with ISO certified dyes. Cycle time: 150 minutes.

Extensive Color Selection

Access to the largest color database. With over 170 RAL and standardized ready to use colors without additional development cost and wait times.

17 Standard Colors

DyeMansion currently has 17 standard colors for the DM60. Developed on EOS PA2200 with PSS finish, other materials may vary. Frequently used in on-demand finishing applications.

RFID Color Cartridges

Based on the volume of your parts, cartridges are available in four different sizes. These are equipped with an RFID chip that transfers all process parameters QM ready to the DM60

Pantone & Industry Color Options

DyeMansion can create any Pantone TPG color for every surface finish. Plus  Industry specific colors for automotive, sportswear and lifestyle applications.

R

Easy operation of the DyeMansion DM60 machine:

  1. Scan a color cartridge
  2. Insert the cartridge into the basket
  3. Fill the basket with parts

DyeMansion DM60 Benefits

DyeMansion standard colors

Color Systems

Benefit from an entire RAL colour range: A large choice of colors with no waiting times and no additional development costs. For all the designers and fashion lovers, DyeMansion can create any Pantone TPG color for every surface finish. Plus industry specific colours for automotive, sportswear and lifestyle applications.

DyeMansion color matching

Limitless color choices

Innovative DeepDye Colouring (DDC) technology offers unlimited color choices and tailor made color recipies.

As a DM60 user you benefit from the largest color database. In addition to over 170 RAL and standardized colours the color matching also offers the possibility of creating individual tones for you – from corporate colors to seasonal trend colours and individual skin tones.

DM60 Cartridge

Exact colour formulas for a reproducible process

For a long time, dyeing 3D printed plastics was a manual, uncontrollable process. the DM60 takes care of this process and offer a global supply of exact color recipes down to the microgram. This enables an industrial process that could not be easier for the user and can be reproduced any time.

The power lies in our color cartridges, which we manufacture depending on base material, finish and desired color. Based on the volume of your parts, cartridges are available in four different sizes. These are equipped with an RFID chip that transfers all process parameters QM ready to the DM60.

DyeMansion part finishes

ISO certified colors

The demands for 3D printed products are constantly increasing. Our ISO-certified colors make us a trusted technology partner for biocompatible eyewear or medical orthoses as well as for light-and heat resistant automotive interiors.

With the extended ColorsX line, we are responding to industry specific requirements and are always looking forward to new input for the further development of our DeepDye Coloring (DDC) technology.

DyeMansion DM60 Specifications

FeatureDetails
PERFORMANCE
Cycle time150 minutes
Capacity per runMid sized build job (e.g. EOS P396 or HP Jet Fusion 4200/5200)
Process chamber volume80l | 21.1gal
Operating temperatureMaterial dependent (up to 115°C | 239°F)
Penetration depth of dyeMaterial dependent (approx. 0.2mm on EOS PA 2200)
Maximum part size (Ø x H)390mm x 360mm | 15.3inch x 14.2inch
Colour cartridge optionsS, M, L, XL, DM Black L-R
Colour optionsUnlimited
DIMENSIONS
System (L x W x H)950mm x 600mm x 945mm | 37.4inch x 23.7inch x 37.0inch
Recommended space requirement for operations (L x W x H)1850mm x 1800mm x 1700mm | 72.8inch x 70.9inch x 67.0inch
WEIGHT
System330kg | 662lb
POWER
Heating power8.3kW or 6.9kW
Requirements400V, 50Hz, 16A or 208V, 60Hz, 20A
COMPRESSED AIR
Consumption< 1.5 m3 per run, dry and oil-free compressed air
WATER
Water inputDemineralized water, conductance < 20μS/cm, min. 4bar | 58psi, volume flow 500l/h.

Fresh water volume per dyeing cycle (colouring and cleaning) max. 150l | 39.6gal.
Waste waterColouring: max. 60l | 15.9gal per coloring, water temperature max. 95°C | 203°F

Cleaning: max. 90l | 23.8gal per cleaning, water temperature max. 45°C | 113°F
Waste water has to be treated in compliance with local regulations.

DyeMansion DM60 Add-ons

Gain high-volume black coloring and constant water quality and process stability with DM60 add-ons

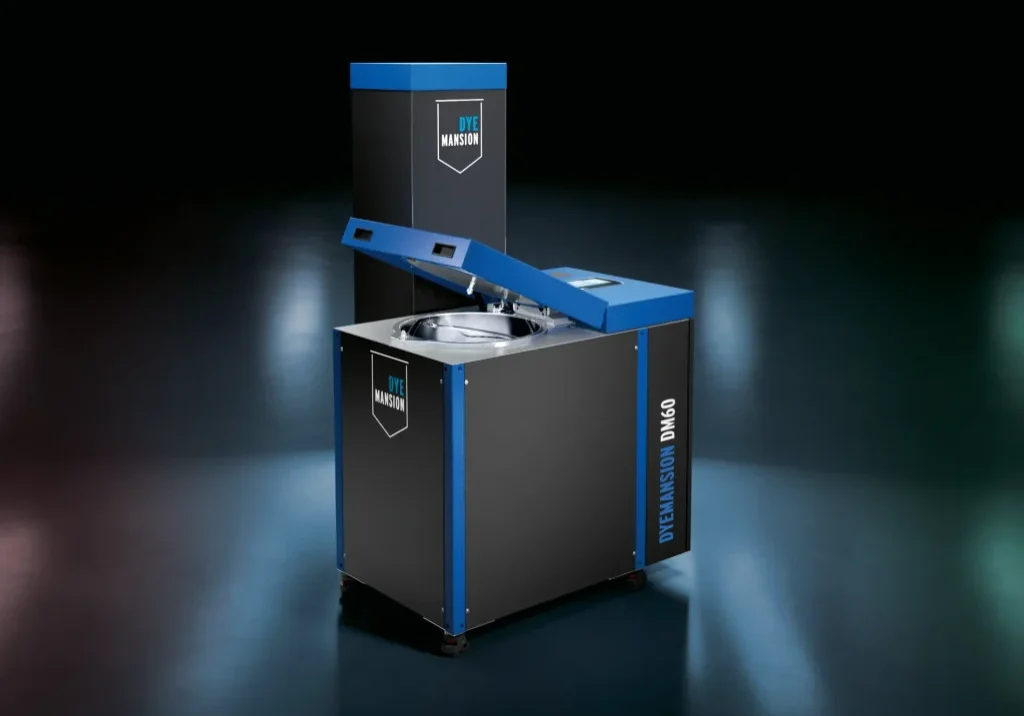

DyeMansion Reservoir

DM60 Reservoir Add-on

The DM60 Reservoir provides a solution for high-volume black coloring. When using the DM60 Reservoir, the process water is stored in the Reservoir for further runs. The possibility of using any other color in between offers you maximum flexibility.

DyeMansion reverse osmosis

DM60 Reverse Osmosis System (ROS)

Constant water quality & process stability provides the easiest way to ensure that your water is ready to be used in the DM60.

The water quality worldwide varies greatly depending on location and season and contains undesirable substances which have a negative impact on dyeing results. Constant water quality without these sub-stances is essential for a stable process.

DyeMansion DM60 FAQs

Get answers to frequently asked questions about the DM60 coloring machine

What are the machine applications?

The DM60 is ideal for Consumer, Medical, Automotive, Aerospace & more

What colors are available?
  • Limitless color choices
  • ISO certified colors
  • Optimized coloring results in combination with PolyShot or VaporFuse Surfacing
  • Grey base parts:
    • 17 standard colors – the only vibrant color range for grey base parts on the market
    • Automotive colors – specially formulated heat & light resistant colors developed specifically for the automotive industry
  • White base parts:
    • 17 standard colors
    • Color systems: 170 RAL colors,
    • Pantone TPG colors & more
    • Custom colors: color matching for corporate colors, skin tones & more
    • Automotive colors available
    • 4 neon colors available
What is the largest part size for coloring?

390mm x 360mm | 15.3inch x 14.2inch

What size are the performance machines?
  • System (L x W x H):
    • Powerfuse S: 1700 mm x 1700 mm x 2070 mm / 66.9 inch x 66.9 inch x 81.5 inch
    • Automatic loading: 960 mm x 3466 mm x 1300 mm / 37.8 inch x 136.5 inch x 51.2 inch
    • Manual loading: 705 mm x 1700 mm x 850 mm / 27.8 inch x 66.9 inch x 33.5 inch
  • Recommended space requirement for operation (L x W x H):
    • Automatic loading: 3760 mm x 4266 mm x 2500 mm  148.0 inch x 168.0 inch x 98.4 inch
    • Manual loading: 3505 mm x 3300 mm x 2500 mm / 138.0 inch x 129.9 inch x 98.4 inch
What are the advantages with DM60 parts?
  • Reproducible dyeing results & traceable process:
    exact color & process formulas developed according to part material, surface finish & color
  • Geometric consistency: dye penetrates parts, ensuring no change to surface (compared to coated parts)
  • Improved scratch resistance
Are there any certification available with the DM60?

There are certifications available for certain materials:

  • Biocompatibility (cytotoxicity & skin irritation)
  • Color fastness (rubbing, washing, bleaching, perspiration)
  • Scratch resistance
  • Light & heat resistance

Example Parts

Example colored parts from a DyeMansion DM60. Pick on the images below to enlarge:
