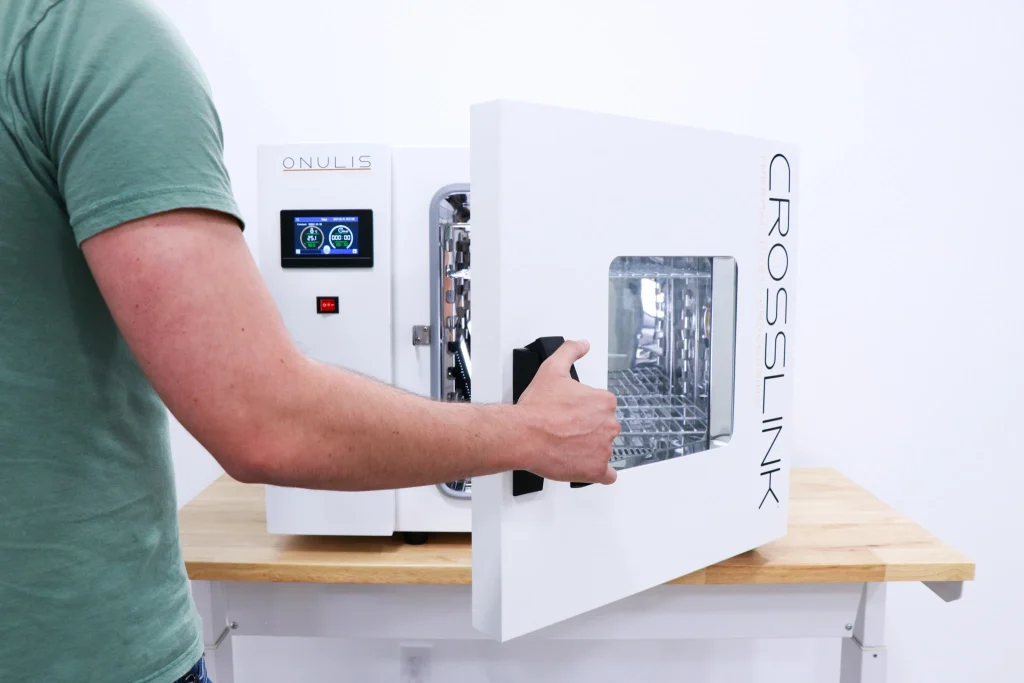

Onulis CrossLink
The Onulis CrossLink comes pre-programmed with the ideal thermal profile for each validated material. Its oversized interior can accommodate two full Stratasys Origin builds at once.
To achieve the superior mechanical properties of certain P3/DLP materials, a thermal post-cure is required to properly crosslink polymer chains. The CrossLink was designed and thoroughly validated with key material manufacturers to ensure these bonds are achieved for every print.
Onulis CrossLink Features
Onulis CrossLink Benefits
Superior Material Performance
To achieve the best mechanical properties in DLP materials, a thermal post-cure is essential to properly crosslink polymer chains. The Onulis CrossLink oven was specifically designed and validated with key material manufacturers to ensure these bonds are achieved, unlocking superior performance in every print.
High-Capacity, Automated Curing
The CrossLink comes pre-programmed with the ideal thermal profile for each validated material. Its oversized interior chamber can also accommodate two full Stratasys Origin One builds, allowing you to cure more parts at once.
Onulis CrossLink Specifications
| Performance | |
|---|---|
| Convection Mode | Forced Convection |
| Temperature Range | 5°C – 300°C (41°F – 572°F) |
| Temperature Fluctuation | ±1 in the range of 50 – 300°C |
| Temperature Accuracy | 0.1°C (32.18°F) |
| Temperature Uniformity | 2% |
| Structure | |
|---|---|
| Shell | Cold-rolled steel plate with electrostatic spray surface |
| Insulation Layer | High-quality rock wool board |
| Heater | Stainless steel electric heating tube |
| Power | 1.2W |
| Exhaust Hole | φ30 mm behind (with test hole function) 50 mm test hole on the side |
| Controller | |
|---|---|
| Control System | Touch screen; programmable, pre-programmed |
| Temperature Control Method | Intelligent PID |
| Temperature Display Method | Measured Temperature: Top row of LED display Set Temperature: On LED numeric display Set Time: Displayed on the instrument |
| Timer | 0 – 99 hrs. or 0 – 9999 mins. |
| Operating Function | Ambient Temperature: 10 – 30°C (50 – 86°F) Humidity: < 70% |
| Sensor | pt100; Instrument has an over-temperature alarm function |
| Specifications | |
|---|---|
| Internal Dimensions | 420 x 450 x 350 mm (16.5 x 17.7 x 13.8 in.) |
| External Dimensions | 600 x 790 x 545 mm (23.6 x 31.1 x 21.5 in.) |
| Interior Volume | 70L |
| Number of Shelves | 2 |
| Minimum Spacing Between Shelves | 48 mm (1.9 in.) |
| Load-Bearing Capacity of Shelves | 15 kg (30 lbs.) |
| Power | AC110V, 11A, 50 – 60 Hz |
| Weight | 50 kg (110 lbs.) |
