DyeMansion DM60 Add-ons

Gain high-volume black coloring and constant water quality and process stability with DM60 add-ons

Upgrade your Part Dyeing process with Add-ons

Increase the output of the DyeMansion DM60 Part Coloring Solution

Whether you’re looking for a solution which ensures consistent dyeing results with purified water or a sustainable solution for re-using process water from black dyeing, the DM60 Reservoir and ROS are here to make it easy.

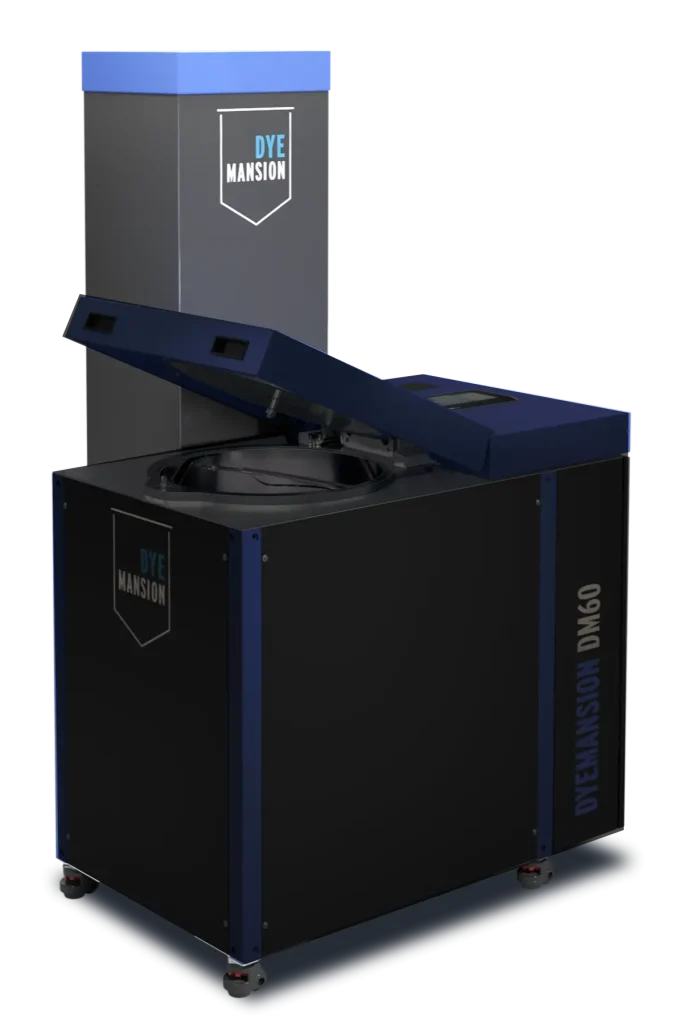

DyeMansion DM60 reservoir

DyeMansion DM60 Reservoir

The DM60 add-on solution for high-volume black coloring.

When using the DM60 Reservoir for black coloring, the process water is stored in the Reservoir for further runs. The possibility of using any other color in between offers you maximum flexibility.

Multiple Black Coloring Cycles

Up to five DM Black dyeing cycles with one DM Black L-R cartridge.

Reduced Cycle Time

Up to 30% reduction of the regular DM60 cycle time (150 minutes) possible.

Reduce Costs

Your costs per run can be reduced up to 37% when working in combination with the DeepDye Coloring solutions for high-volume black coloring.

/

Compact Tower Design

Thanks to a compact tower design, the system takes up very little space next to the DM60 and can be easily integrated into your workflow.

No Additional Operational Effort

This user-friendly solution is compatible with all variants of the DM60 and requires no additional operation effort.

Reduced Water Usage

Due to the possibility of reusing the process water for up to five dyeing
cycles with the DM60 Reservoir, the consumption of fresh water and the amount of waste water are considerably reduced.

Dyemansion DM60 Reservoir Specs

Performance, dimensions, weight and power information

PERFORMANCECycle time: Up to 30% reduction of the regular DM60 cycle time (150 minutes) possible
Capacity per run
: Up to five DM Black dyeing cycles with one
Process chamber volume: 60l | 15.8gal
Color options: Black
DIMENSIONSSystem (L x W x H): 385mm x 350mm x 1640mm | 15.2inch x 13.7inch x 64.6inch
Recommended space requirement for operations (L x W x H): 1850mm x 1800mm x 1700mm | 72.8inch x 70.9inch x 67.0inch
WEIGHTSystem 92kg | 202.8lb
POWERData transfer and power supply from DM60 required
COMPRESSED AIRConsumption < 1.5m3 per run, dry and oil-free compressed air
DyeMansion logo
DyeMansion ROS

DyeMansion DM60 ROS (Reverse Osmosis System)

Constant water quality & process stability provides the easiest way to ensure that your water is ready to be used in the DM60.

The water quality worldwide varies greatly depending on location and season and contains undesirable substances which have a negative impact on dyeing results. Constant water quality without these sub-stances is essential for a stable process.

Thanks to the principle of reverse osmosis, components such as lime and other salts are removed from the water. This achieves a consistent water quality that ensures reproducible dyeing results.

User-friendly

The DyeMansion ROS Reverse Osmosis System is a user-friendly solution that can be integrated into the Print-to- Product workflow at any time and is perfectly matched for the use with your DeepDye Coloring Equipment (DM60 including DM60 Reservoir).

Complete Solution

More simplified handling compared to conventional desalination solutions.

Protects your equipment

Thanks to the innovative filter system the DyeMansion ROS protects your DeepDye Coloring Equipment from limescale deposits.

Dyemansion DM60 ROS Specs

Performance, dimensions, weight and power information

PERFORMANCEEfficiency: Supplies two DM60 with demineralized water

Maximum demineralized water production: Up to 5001/h | 46inch

Integrated storage tank: 200 l | 52 gal

Demineralized water quality: Conductance < 20 μS/cm

Demineralized water yield: Approx. 50 % at 20 °C | 68 °F feed water temperature Approx. 35 % at 10 °C | 50 °F feed water temperature

DIMENSIONSSystem (L x W x H): 1305 mm x 800 mm x 1690 mm | 51.4 inch x 31.5 inch x 66,4 inch

Recommended space requirement for operations (L x W x H): 2400 mm x 2000 mm x 2000 mm | 95 inch x 78.8 inch x 78.8 inch

WEIGHTSystem (empty weight) 328 kg | 724 lbs

System (full storage tank) 600 kg | 1323 lbs

POWERFull load current: 10 A (230 V / 50 Hz) | 22 A (110 V / 60 Hz)

Nominal Power: 1,2 kW (230 V / 50 Hz) | 2,4 kW (110 V / 60 Hz)

Requirements: 230V, 50Hz or 110V, 60Hz

WATERWater input: Feed water flow min. 1000 l/h | 265 gal/h Feed water pressure 3-5 bar | 44 – 73 psi Blocking factor (SDI) < 3i Total hardness max. 15 °dH TDS < 2000 ppm Ph-value 6.5 – 9

Waste water: Concentrate; up to 650 l/h | 172 gal/h

DyeMansion DM60 Add-ons Benefits

DyeMansion DM60 control

RESERVOIR: Reduce costs and lead time

The DM60 Reservoir is the perfect companion to the DM60 for customers looking for high-volume solutions for black coloring. The DM60 Reservoir reuses a previous cycle’s dye, meaning that dyeing jobs can be completed in just over an hour and a half. And due to reusing the process water up to five times less cartridges are needed.

Black water dye

RESERVOIR: Sustainable Solution

Due to the possibility of reusing the process water for up to five dyeing cycles with the DM60 Reservoir, the consumption of fresh water and the amount of waste water are considerably reduced. As a result, with this sustainable add-on solution you also protect the environment.

DyeMansion reproducible results

ROS: Reproducible Dyeing Results

The Reverse Osmosis System ensures that you have consistent water quality resulting in reproducible dyeing results no matter where you are.



Limescale deposits

ROS: Extended Equipment Life

The ROS protects your DeepDye Coloring Equipment from limescale deposits; ensuring a stable dyeing process and significantly extending the service life of your machines.

Post Process Yourself

Contact us about a DyeMansion DM60 Add-ons Machine

Call 888.874.6324 to speak to an expert

We Post Process For You

Use our Post Processing Service to finish your parts

Call 888.392.0957 to speak to an expert
