Automated 3D printed part cleaning and surfacing
Next level blasting system built for the factory of the future and high-volume production with Additive Manufacturing.
Eliminate time-consuming and expensive piece-by-piece manual cleaning by applying an automated solution for de-powdering and smoothing your powder-bed 3D printed parts.
The DyeMansion Powershot DUAL Performance vastly improves 3D printed parts.
DyeMansion Powershot DUAL Performance Benefits
Intuitive User-friendly Interface
The Powershot DUAL Performance provides an intuitive user-friendly interface with various user-levels. Pre-installed programs with specifically developed process parameters can be controlled. Your individual process parameters can be configured and saved easily, enabling a fast adaption to each specific application.
Automatic part handling such as automatic unloading of your processed parts supports the integration into the DyeMansion Print-to-Product workflow and the compete Additive Manufacturing chain.

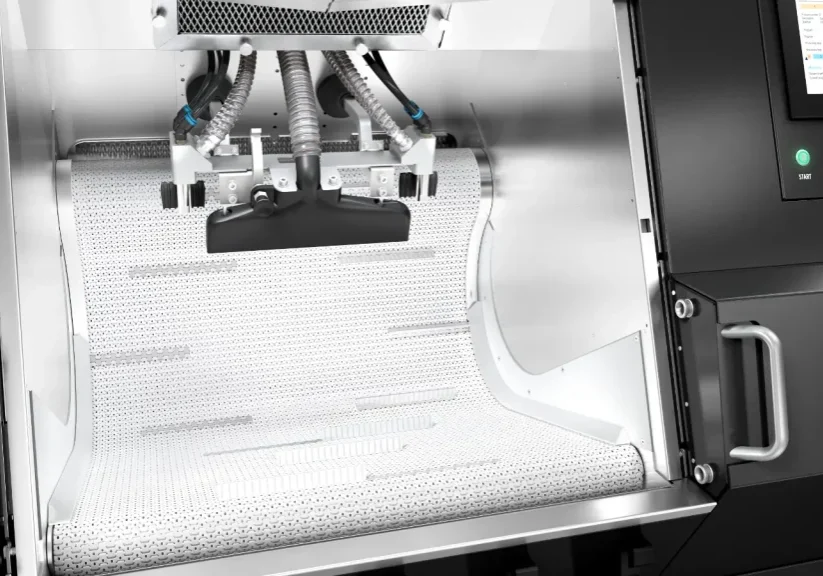

Wide Multi-belt for full-sized jobs
The Powershot DUAL Performance is designed for the most demanding applications within advanced manufacturing (AM). The first system with a wide multi-belt can handle up to 10 kg of parts, depending on size, geometry and residual powder.
While being able to process a full-sized build job, the Powershot DUAL Performance has the smallest workspace requirements on the
market.
Automation technology from Siemens
The Powershot DUAL Performance blends right into the factory of the future with state-of-the-art automation technology from Siemens. Through DyeMansion Data Connect, the machine integrates with your digital store floor with ERP/MES connectivity and standardized communication protocols such as OPC-UA (optional 360° Digital Services feature).
Monitor and analyze all data surrounding the state and condition of the systems for performance & process optimization using the DyeMansion Workflow Center (optional 360° Digital Services feature).
Improved part quality, look and feel of 3D printed part
Since Powder Bed Fusion technologies work layer by layer the outcome are parts with rather rough surfaces compared to conventional manufacturing methods. The PolyShot Surfacing process improves the look and feel of your 3D printed parts.
The homogenized surface achieved by PolyShot surfacing ensures that the color is absorbed more evenly and better by the part during coloring. This is advantageous when further processing steps such as gluing or painting are to be carried out.
DyeMansion Powershot DUAL Performance Process
Four steps to go from 3D printer to cleaned smooth parts
1. Load Parts
Add your parts easily to front-loading process chamber and close the door.
2. Select a Program
Select your DUAL program and walk away – no need to switch machines between Cleaning & Surfacing.
3. Visual Notifications
Receive notification that parts have been cleaned and surfaced via flashing lights or IIoT.
4. Automatic discharge
Your parts can be automatically discharged and are ready for the dyeing process.
Powershot DUAL Performance Specifications
| Print-to-Product Workflow | Cleaning & Surfacing |
| Automation | Automated processes & auto-unloading – with no need to switch between cleaning and surfacing machines |
| Connectivity | Cloud-based machine monitoring via DyeMansion Workflow Center (optional), OPC UA interface for unidirectional communication via DyeMansion Data Connect (optional), remote support via VPN |
| Cycle time | 10 to 20 minutes per process |
| Capacity per run | E.g. up to 1x EOS P396, 1.5x HP Jet Fusion 4200/5200 or 3x Stratasys H350 build jobs |
| Effective volume | 55 l | 14.5 gal |
| Part handling | Multi-Belt |
| Dimensions | 1535mm x 2205mm x 2065mm | 60.4inch x 86.8inch x 81.3inch |
| Blasting media | Plastic Based PolyShot PC4 and PolyShot PS6 |
| Compatible Technology | SLS, SAF, MJF, HSS |
Powershot DUAL Performance
Industries we work with
TriMech Advanced Manufacturing is used in a wide variety of industries
Architectural Design & Construction
- Model making
- Urban planning
- Concepts
High Tech & Consumer Products
- Aesthetic and function testing
- Concepts and prototypes
- Sales and marketing models
Dental, Medical & Life Sciences
- Anatomical models
- Medical devices
- Orthopedics
- Prosthetics
- Surgical planning models
Industrial Products, Mold Tool & Die
- Jigs, fixtures, and assembly tooling
- Injection molding
- Silicone molding
- Sand and investment casting
- Thermoforming
More Post Processing Solutions

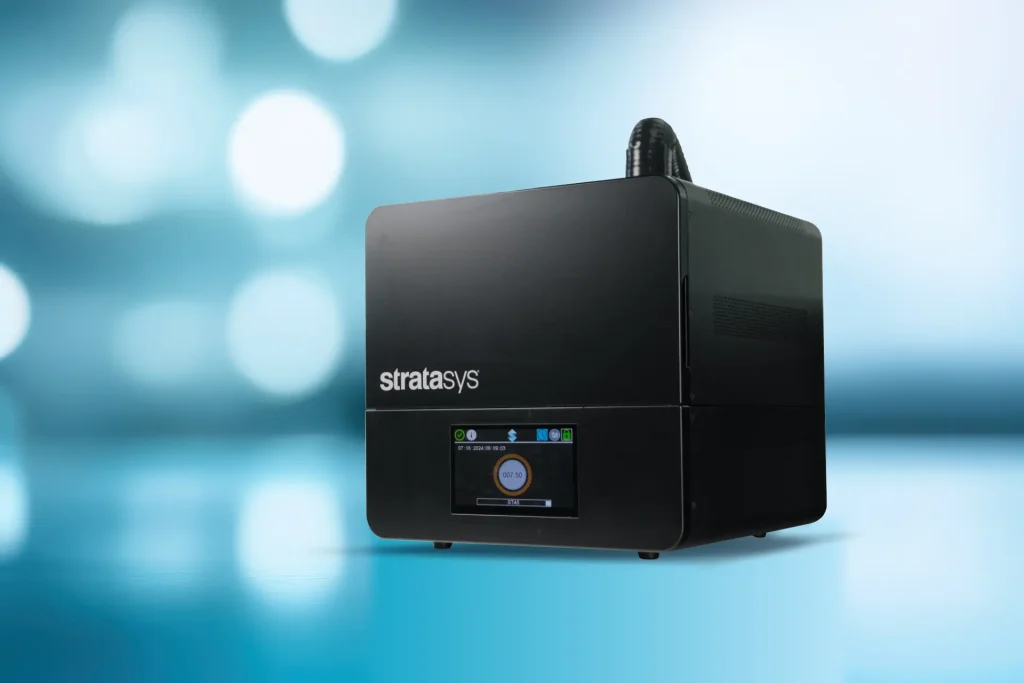

Stratasys Origin Cure
