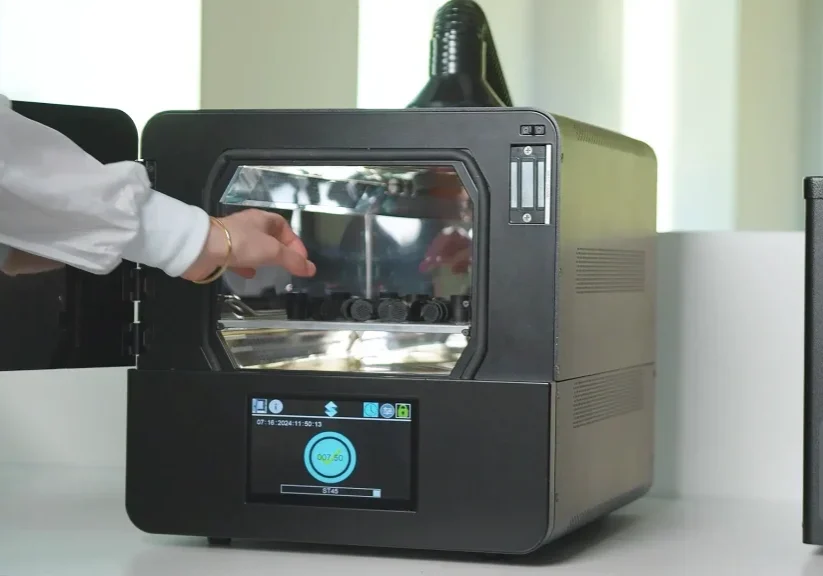

Stratasys Origin Cure

The Stratasys Origin Cure™ system is engineered to lock in accuracy, repeatability and detail of your Origin® printed parts.

Control accuracy and part properties during curing

Optimize your Stratasys Origin workflow with the Origin Cure.

Unlock the full potential of your 3D prints with the Stratasys Origin Cure, the ultimate solution for post-processing that ensures your printed parts achieve their maximum performance and durability.

Engineered to lock in accuracy, repeatability, and detail of your Origin printed parts to deliver consistent and reliable results.

Stratasys Origin Cure Features

Ensure part uniformity

A 360-degree, multi-wavelength and high-intensity LED cure ensures uniformity and upholds the intricate design elements.

Office-friendly Design

The Stratasys Origin Cure is like any other desktop house appliances, a “plug and play” system.

Long lifespan

Origin Cure’s custom built LED panels boast a >5,000-hour lifespan, for low maintenance and a curing process that you can rely on time and time again.

Very easy and intuitive

Ease of use is a cornerstone of the Origin Cure system, featuring predefined programmable cure profiles that are specific to each material, reducing the potential for human error.

For Stratasys Origin Two 3D Printer

The Stratasys Origin Two is a state-of-the-art resin 3D printer that promises to redefine the landscape of production 3D printing by addressing some of the most pressing challenges in modern manufacturing.

The Origin Two boasts enhanced accuracy and production speed. The printer integrates advanced motion controls, which ensures exceptional precision in producing detailed and complex parts quickly.

Learn More

Stratasys Origin Cure Benefits

Maintain Accuracy and Repeatability

Origin Cure maintains the accuracy of your parts as they come off the printer. Using Origin Cure in combination with your Origin printer allows for repeatable end use production parts.

The Origin Cure utilizes advanced UV curing technology to deliver uniform and controlled exposure. This ensures that each part receives the optimal amount of light, enhancing the strength and accuracy of your prints.

Easy and Reliable Curing

A user friendly interface makes it easy for operators. The intuitive controls simplify part curing. The 360 degree UV curing eliminates the need for manual labor to flip parts, reducing hands on time.

Optimized for Various Materials

Compatible with a wide range of photopolymer materials and loaded with settings to cure performance materials. The programmable UV settings eliminates the need for manual calibrations with additional tools such as irradiance or radiometers.

Compliance and Safety

The Origin Cure was developed with safety in mind and meets NRTL standards. The Origin Cure works in tandem with the Stratasys ProAero filtration unit to remove any VOCs for a safer workplace. The traceability allows for enhanced quality assurance procedures.

360 Curing Process

Streamlined and time-saving post-processing. A 360-degree and full build volume curing, and a faster, no-flip process results in a more streamlined and time-saving post-processing, ensuring that production remains both efficient and reliable.

The 360-degree curing process eliminates the need for flipping parts over to achieve proper cure on all sides. The programmable mechanism with multiple wavelengths provides more control of the material properties. Preprogrammed cure profiles per material allow for easy, one-click operation.

Users with OpenAM™ License have the option to create their own curing programs for more control.

Quality Control and Traceability

The system provides traceability features for detailed tracking and enhanced quality assurance.

Stratasys Origin Cure Specifications

Specification	Description
Light Engine	UV LED arrays with multiple wavelengths: 365nm, 385nm and 405nm in each array UV intensity uniformity and 360 degree curing within the chamber (no timing nor part flipping required)
Calibration	Automatic intensity monitoring and LED adjustment using two built-in sensors and software
Chamber Dimensions	Max 370 mm x 108 mm x 192 mm (14.56” x 4.25” x 7.56”)
Software	Touchscreen user interface Programmable intensity ramps/times set per material with the current portfolio of materials pre-loaded Possibility for users to create their own material recipes
Intensity Output range	Up to 450 mW / cm2 total intensity at chamber center (up to 150mW / cm2 for each wavelength)
Power Requirements	100-240 Vac, 50/60Hz
System Size and Weight	450 mm x 430 mm x 410 mm (17.71” x 16.93” x 16.14”) 36.74 kg (81 lbs)
Regulatory Compliance	CE, UKCA, RoHS, FCC & Industry Canada Health & Safety The only DLP printer protected with VOC solution – Compatibility with Stratasys ProAero™ to automatically evacuate VOCs in the chamber after each cycle
