DyeMansion Powerfuse S Series

Green vapor polishing solution to apply an injection molding-like surface finish to 3D printed parts made from PP, PA, TPU, ULTEM & more

Automated polishing & vapor finish system

The green & industrial vapor finish system for injection molding like sealed surfaces for your AM parts – across ALL geometries.

DyeMansion Vapor Fuse Surfacing (VFS) delivers injection molding-like parts, reducing surface roughness by up to 70 %; using an environmentally friendly non-toxic solvent.

Dyemansion Powerfuse S Series

Choose from four different machines featuring manual or automated loading

DyeMansion Powerfuse machines

Powerfuse S
manual loading
Powerfuse S
automatic loading
Powerfuse S PP
manual loading
Powerfuse S PP
automatic loading
Print-to-Product workflowVaporFuse SurfacingVaporFuse SurfacingVaporFuse SurfacingVaporFuse Surfacing
AutomationAutomated processes & manual loadingAutomated processes & manual loadingAutomated processes & automated loadingAutomated processes & manual loading
ConnectivityCloud-based machine monitoring via DyeMansion Workflow Center (optional), OPC UA interface for unidirectional communication via DyeMansion Data Connect (optional), remote support via VPNCloud-based machine monitoring via DyeMansion Workflow Center (optional), OPC UA interface for unidirectional communication via DyeMansion Data Connect (optional), remote support via VPNCloud-based machine monitoring via DyeMansion Workflow Center (optional), OPC UA interface for unidirectional communication via DyeMansion Data Connect (optional), remote support via VPNCloud-based machine monitoring via DyeMansion Workflow Center (optional), OPC UA interface for unidirectional communication via DyeMansion Data Connect (optional), remote support via VPN
Cycle time45 to 180 minutes45 to 180 minutes45 to 180 minutes45 to 180 minutes
Process chamber volume85l | 22.5gal85l | 22.5gal85l | 22.5gal85l | 22.5gal
Dimensions

Powerfuse S: 1700mm x 1700mm x 2070mm | 66.9inch x 66.9inch x 81.5inch

Manual loading belt: 705mm x 1700mm x 850mm | 27.8inch x 66.9inch x 33.5inch

Powerfuse S: 1700mm x 1700mm x 2070mm | 66.9inch x 66.9inch x 81.5inch

Automated loading belt: 960mm x 3466mm x 1300mm | 37.8inch x 136.5inch x 51.2inch

Powerfuse S: 1700mm x 1700mm x 2070mm | 66.9inch x 66.9inch x 81.5inch

Manual loading belt: 705mm x 1700mm x 850mm | 27.8inch x 66.9inch x 33.5inch

Powerfuse S: 1700mm x 1700mm x 2070mm | 66.9inch x 66.9inch x 81.5inch

Automated loading belt: 960mm x 3466mm x 1300mm | 37.8inch x 136.5inch x 51.2inch

Compatible materialsRigid materials like PA11 or PA12, and semi-rigid materials like TPU from most common printing technologies & material suppliersRigid materials like PA11 or PA12, and semi-rigid materials like TPU from most common printing technologies & material suppliersPP (Polypropylene) from most common printing technologies & material suppliersPP (Polypropylene) from most common printing technologies & material suppliers

DyeMansion Vapor Fusing Process

Four steps to go from 3D printer to smooth sealed parts

DyeMansion hang parts

1. Load Parts

Hang parts in the basket – you can prepare up to 5 at once

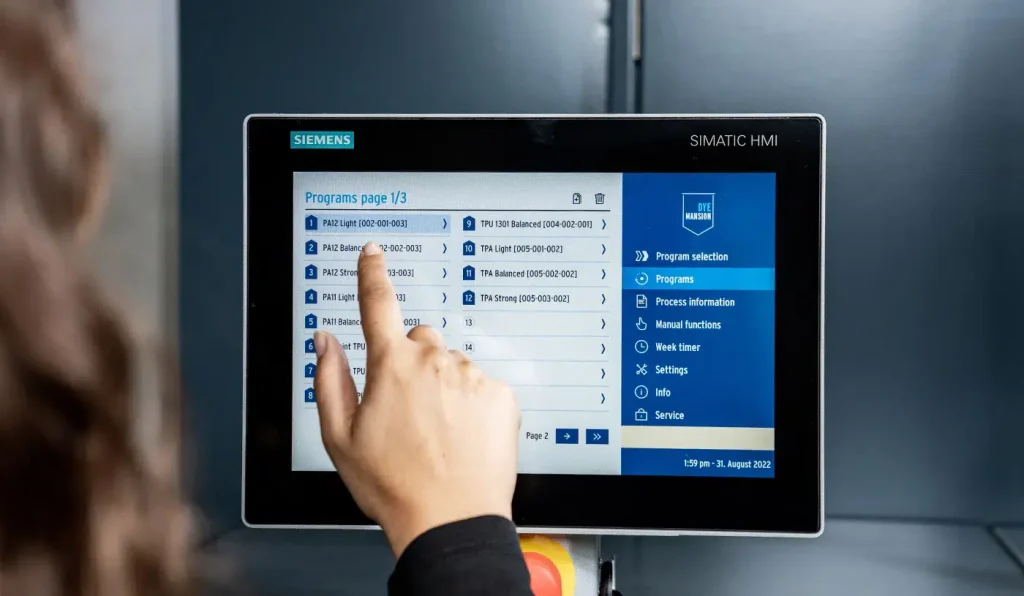

DyeMansion vapor control

2. Select a Program

Choose the right program for your material

DyeMansion Powerfuse notifications

3. Visual Notifications

Your parts are being smoothed

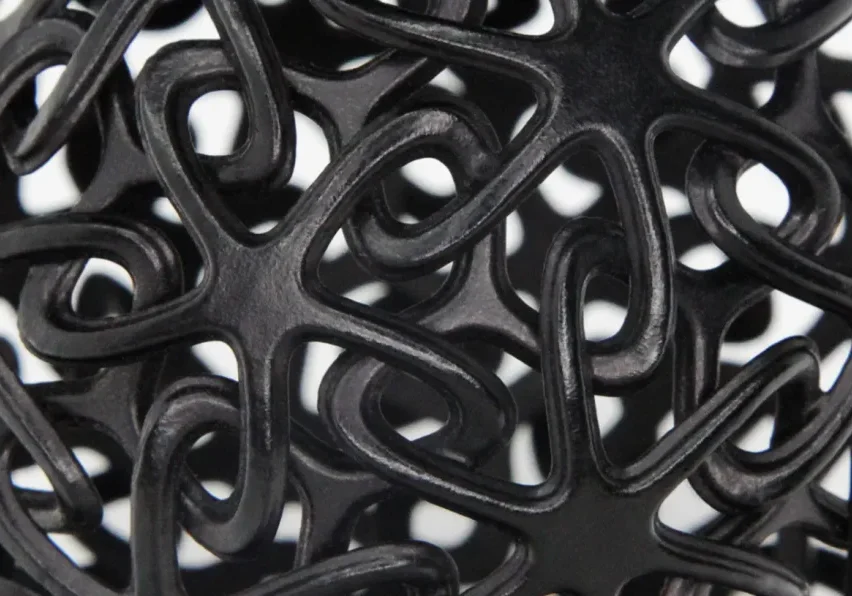

DyeMansion VPS Parts

4. Process Complete

Marvel at your vapor polished parts

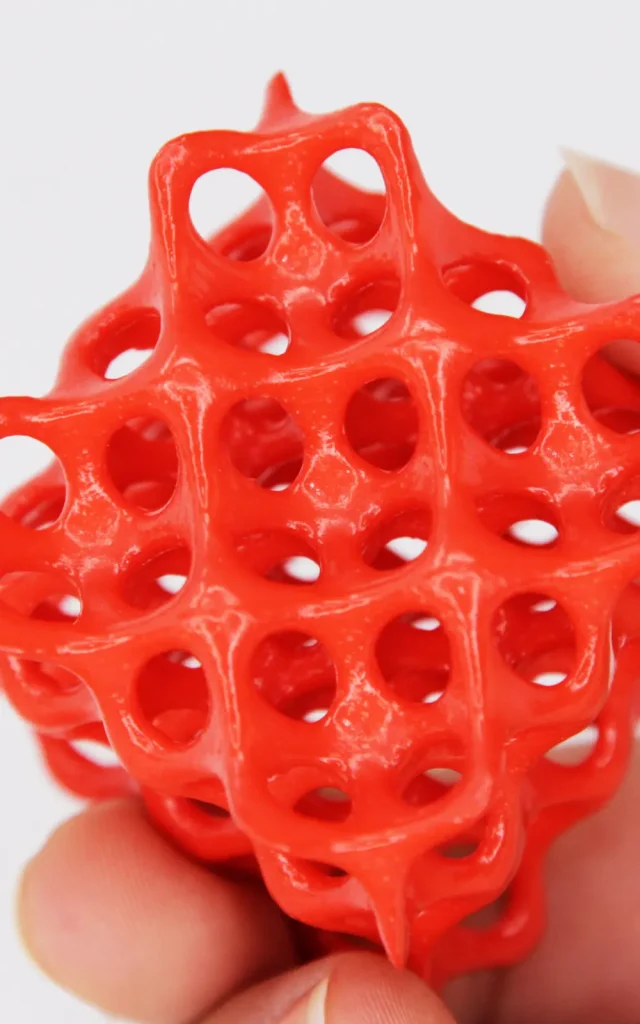

DyeMansion vapor part

DyeMansion Powerfuse Features

Compatible materials and technology

Most common hard and flexible polymers such as PA11, PA12, TPU and PP
Technologies: SLS, MJF, SAF, HSS, FDM, FFF

Closed loop

The solvent runs in a closed loop which means that there is no wasted material.

User friendly HMI

Choose your desired level of surfacing from pre-installed or customized programs to get the right finish for your material.

0

Large Process Chamber

With a chamber of 85l or 22.5gal the Powerfuse S can handle whatever you throw at it.

Continuous monitoring

With a user-centric design everything can be easily accessed and operated safely. Continuous monitoring allows an efficient and reproducible process.

Remote troubleshooting

Reduce your downtime and benefit from our remote troubleshooting offer for your Powerfuse S.

Customizable baskets

Specially designed basket inlays ensure that your part gets an ideal surface, no matter the size or shape.

DyeMansion Powerfuse S Series Benefits

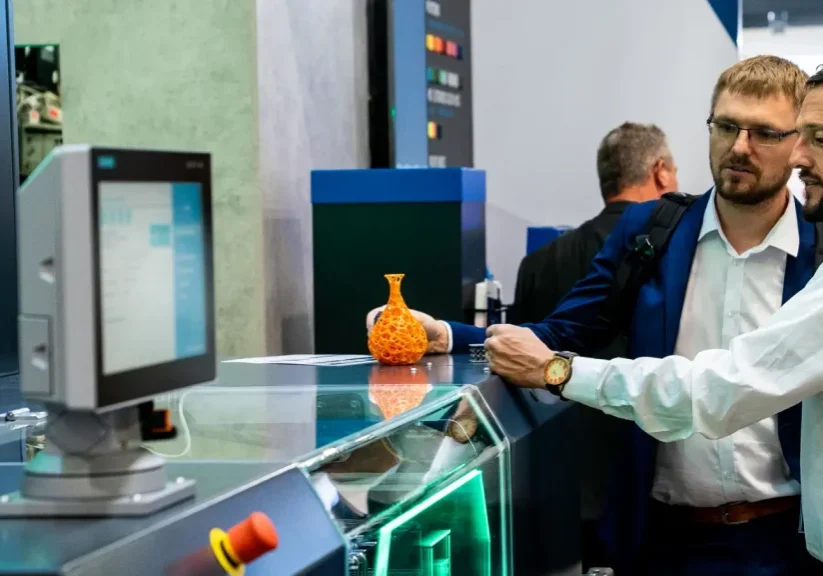

DyeMansion Powerfuse UI

Intuitive User-friendly Interface

All versions of the Powerfuse Series provide an intuitive user-friendly interface with various user-levels. Pre-installed programs with specifically developed process parameters can be controlled. Your individual process parameters can be configured and saved easily, enabling a fast adaption to each specific application.

Automatic part handling such as automatic unloading of your processed parts supports the integration into the DyeMansion Print-to-Product workflow and the compete Additive Manufacturing chain.

DyeMansion vapor parts

Green vapor polishing technology

The non-toxic VaporFuse VF47 EcoFluid is safe to use (no PFAS, no CMR and no vPvM/PMT). Operating the Powerfuse S does not require protective clothing against chemical hazards.

No additional equipment or reconstruction of installation site needed. Vapor polished parts treated with the Powerfuse S can be used for consumer, medical or food & beverage applications.

DyeMansion Workflow

Automation technology from Siemens

The Powerfuse S series blends right into the factory of the future with state-of-the-art automation technology from Siemens. Through
DyeMansion Data Connect, the machine integrates with your digital store floor with ERP/MES connectivity and standardized communication
protocols such as OPC-UA (optional 360° Digital Services feature).

Monitor and analyze all data surrounding the state and condition of the systems for performance & process optimization using the DyeMansion Workflow Center (optional 360° Digital Services feature).



DyeMansion improved parts

High-quality surfaces with improved properties

VaporFuse Surfacing (VFS) delivers injection molding-like parts, reducing surface roughness by up to 70%. Parts are sealed, water repellent, and achieve washable surfaces that inhibit bacteria growth. Increased mechanical properties benefit delicate structures and soft materials.

Achieve an elongation at break increase by up to 200% depending on your material. The Powerfuse S can smooth inner channels which is unique in the industry and key for pipes or tubes.

DyeMansion Powerfuse S Series FAQs

Get answers to frequently asked questions about the Performance Series machines

What are the applications?

The Powerfuse S is ideal for Food & Beverage, Medical, Consumer, Automotive, Aerospace & more

What is the typical cycle time?

90-180 minutes. Depending on program, excl. heating-up time of the system of approx. 60 minutes. Automatic heating-up programmable via weekly timer.

What is the capacity for a run?
  • Process chamber volume: 85 l | 22.5 gal
  • Basket dimensions (L x W x H):
    • 610 mm x 340 mm x 315 mm (385 mm)
    • 24.0 inch x 13.4 inch x 12.4 inch (15.1 inch)
What size are the performance machines?
  • System (L x W x H):
    • Powerfuse S: 1700 mm x 1700 mm x 2070 mm / 66.9 inch x 66.9 inch x 81.5 inch
    • Automatic loading: 960 mm x 3466 mm x 1300 mm / 37.8 inch x 136.5 inch x 51.2 inch
    • Manual loading: 705 mm x 1700 mm x 850 mm / 27.8 inch x 66.9 inch x 33.5 inch
  • Recommended space requirement for operation (L x W x H):
    • Automatic loading: 3760 mm x 4266 mm x 2500 mm  148.0 inch x 168.0 inch x 98.4 inch
    • Manual loading: 3505 mm x 3300 mm x 2500 mm / 138.0 inch x 129.9 inch x 98.4 inch
Which materials and technologies can be vapor fused?
  • Materials: most common hard and flexible polymers such as PA11, PA12, TPU and PP
  • Technologies: SLS, MJF, SAF, HSS, FDM, FFF
How is the process eco-friendly?
  • Approved for the processing of plastics with food contact according to regulation (EU) 10/2011 & (US) FDA
    • Non CMR (carcinogenic, mutagenic and reprotoxic)
    • No PFAS (Per- and polyfluorinated alkyl substances)
    • Not vPvM (very persistent and very mobile)
  • Approved biocompatibility (cytotoxicity & skin irritation)
  • Parts safe to handle
  • Closed loop system – no chemical waste
