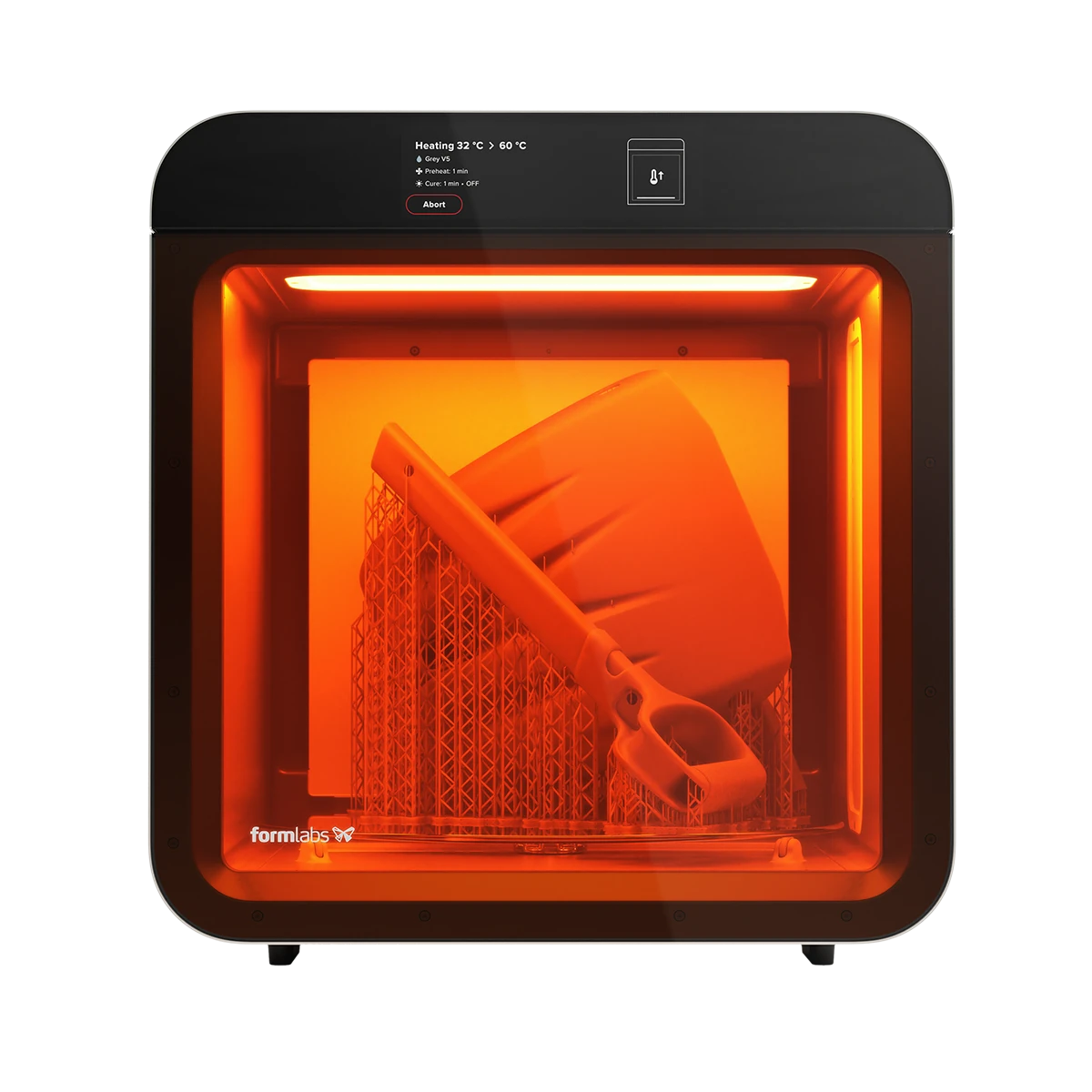

Blazing Fast Curing
Designed to perfectly complement the Form 4 and 4L printers, the Form Cure L V2 delivers production-ready parts in minutes with precision and reliability you can trust.
With 5× more UV power, a 26% smaller footprint and 19% larger capacity, and support for larger parts, Cure L V2 helps customers go straight from print to production – no guesswork, no waiting.
Formlabs Form Cure L V2 Features
Formlabs Form Cure L Benefits
Higher throughput and faster delivery
Post-cure General Purpose resins in just 60 seconds and most engineering resins in less than 15 minutes.
Dramatically reduces post-processing bottlenecks, enabling same-day part turnaround and higher printer utilization.
Reliable, repeatable results
96 multi-directional LEDs and a convective heating system that ensures uniform light and heat exposure, delivering 14.5 mW/cm² irradiance and a maximum temperature of 100 °C.
Predictable part strength, toughness, and dimensional accuracy across every print, critical for production and biocompatible materials.
Full ecosystem compatibility
Designed to fit any part on Form 4 and Form 4L generation printers, enabling curing of parts up to 353 x 196 x 350 mm on a 404 mm turntable.
Can cure all Form 4 and Form 4L parts and can offer efficient batch processing and consistent quality for large industrial applications.
Simplified workflow and operator efficiency
Sleek new design with pre-programmed cure cycles, an easy-to-clean glass turntable, optional nitrogen integration, and a redesigned side-hinged door, all within a compact footprint that’s 26% smaller while curing parts up to 19% larger than the previous generation.
Smaller footprint frees bench space while preset cycles and auto-validated material profiles minimize human error and training time.
For Formlabs Form SLA 3D Printers

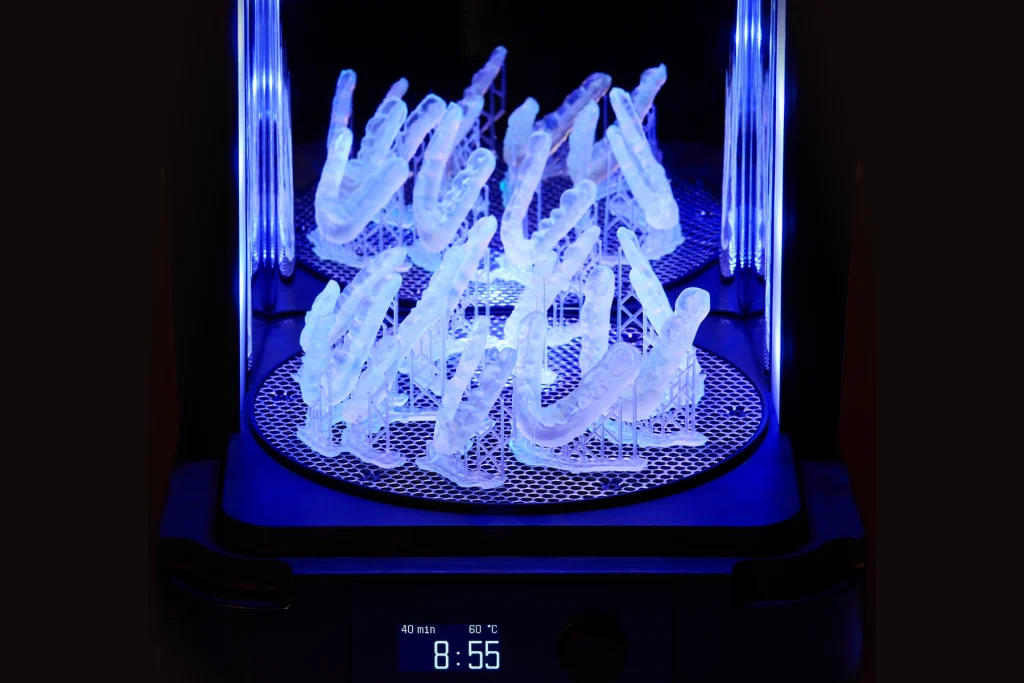

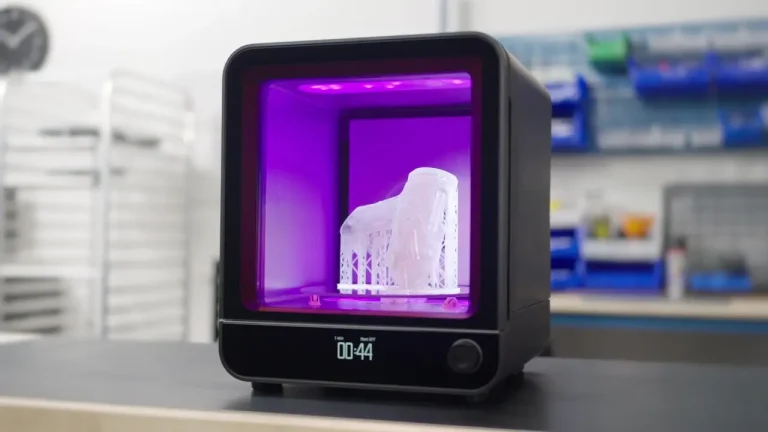

Formlabs Form Cure Process
Three steps to harden your SLA parts
Step 1: Insert washed and dried prints
Wash parts with the Formlabs Form Wash to remove solvent and support material.
Open the door and distribute parts on the round turntable. Space parts evenly to allow light and heat to reach all areas.
Step 2: Set the post-cure time and temperature
Set the post-cure time and temperature settings for your resin. The LEDs activate, and the timer starts once the heater reaches the target temperature.
During preheating, the display shows the Preheating status, which includes the current temperature and the target temperature.
Step 3: Remove the parts
The LEDs and heater turn off automatically at the end of the post-cure cycle.
Open the door and remove the cured parts.
Formlabs Form Cure L V2 Specifications
| Parameter | Unit |
|---|---|
| Installation surface | Benchtop unit |
| Minimum dimensions for convenient access (W × D × H) | 60.0 × 110.0 × 56.0 cm 23.6 × 43.3 × 22.0 in |
| Product dimensions (W × D × H) | 50.7 × 54.3 × 54.5 cm 20.0 × 21.4 × 21.5 in |
| Product weight | 40.0 kg 88.2 lb |
| Shipping weight | 43.0 kg 94.8 lb |
| Turntable diameter | 40.4 cm 15.9 in |
| Curing volume (W × D × H) | 42.3 × 42.3 × 36.5 cm 16.7 × 16.7 × 14.4 in |
| Maximum part height | 365 mm |
| Maximum part dimensions (W × D × H) | 35.3 × 19.6 × 35.0 cm 13.9 × 7.71 × 13.8 in |
| Operating environment | 18–28 ºC 64–82 ºF |
| Power requirements | Input (NA): 100–125 VAC, 50–60Hz, 15 A Input (EU): 220–240 VAC, 50–60Hz, 8 A |
| Maximum post-cure temperature | 100 ºC 212 ºF |
| Light source | 96 multi-directional LEDs |
| LED electrical power | 350 W |
| LED radiant power (total) | 120 W |
| LED wavelength tolerance | 400–410 nm |
| USB connectivity | USB (rev 2.0) B port with a USB-C cable |
| Sound emission | Does not exceed 55 dB(A). |
