VeroUltra Opaque

Rigid Color Material

VeroUltra Opaque materials facilitate the printing of thin parts, providing richer colours with sharper textures and texts. VeroUltra Opaque shades bring models to life with un-matched color realism.

VeroUltra™ includes VeroUltra™ WhiteS and VeroUltra™ BlackS color materials are available with TriMech’s PolyJet 3D printing service.

The use of VeroUltra™ WhiteS and VeroUltra™ BlackS improves significantly the color opacity and color uniformity. It also provides a smoother texture enabling high quality plastic appearance, ultra sharp graphics and high contrast print levels previously impossible to achieve.

When combined as digital materials with other Stratasys PolyJet materials such as VeroWhite, VeroUltraClear, or the Agilus30 rubber-like material the possibilities become endless!



Beer bottles VeroUltra

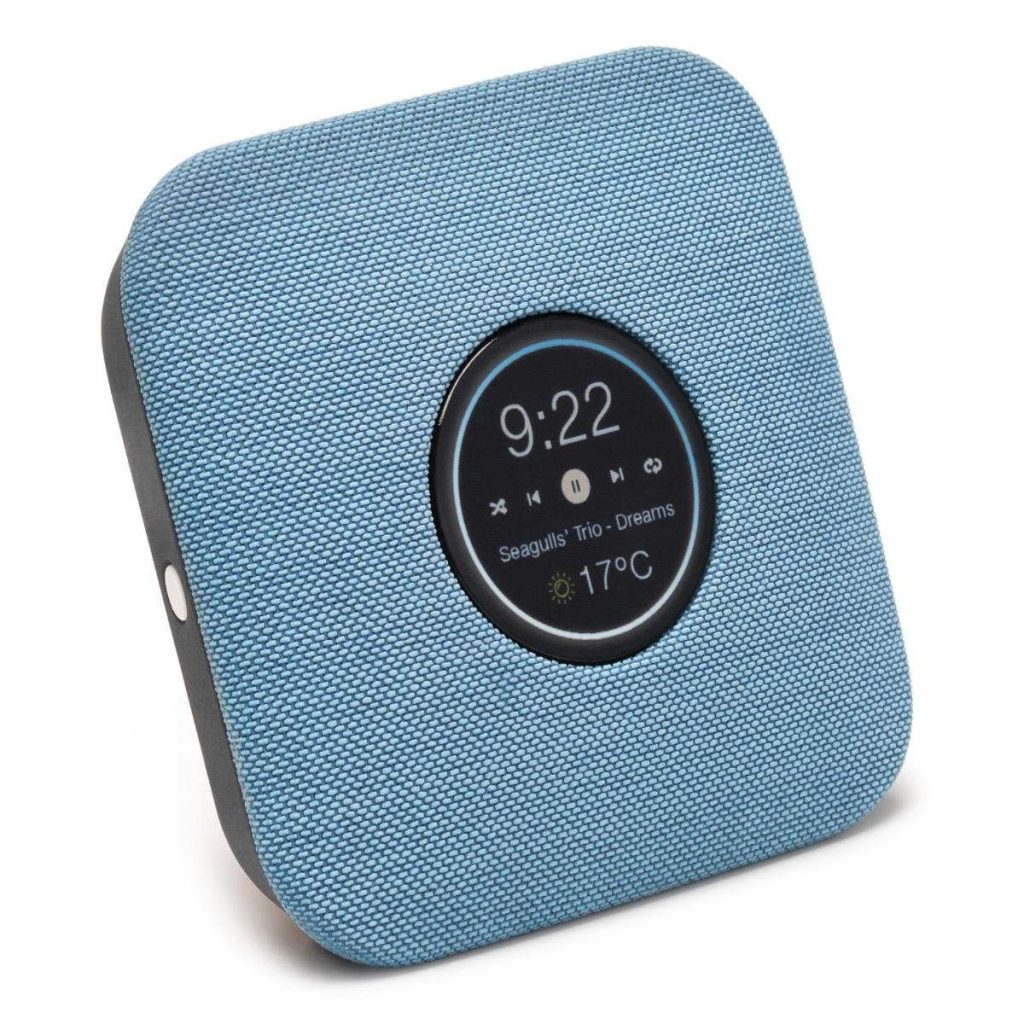

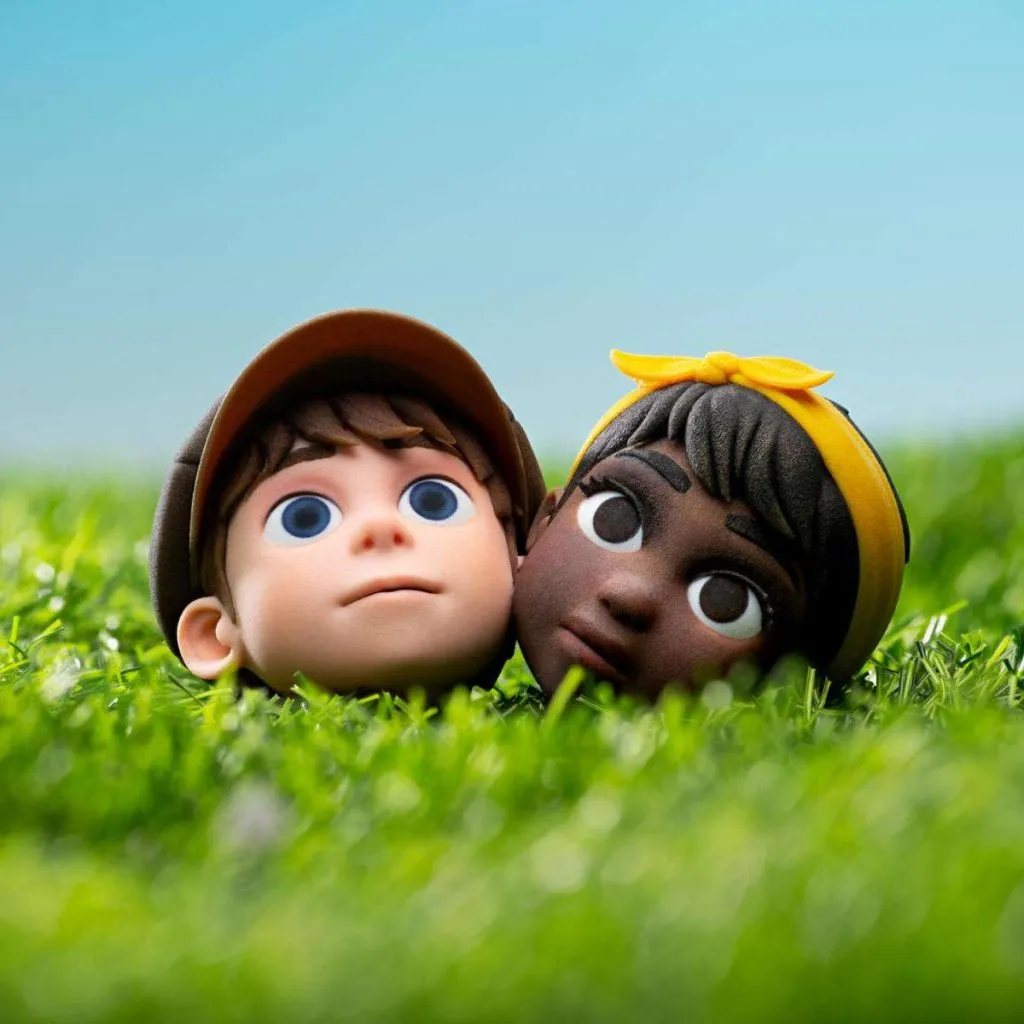

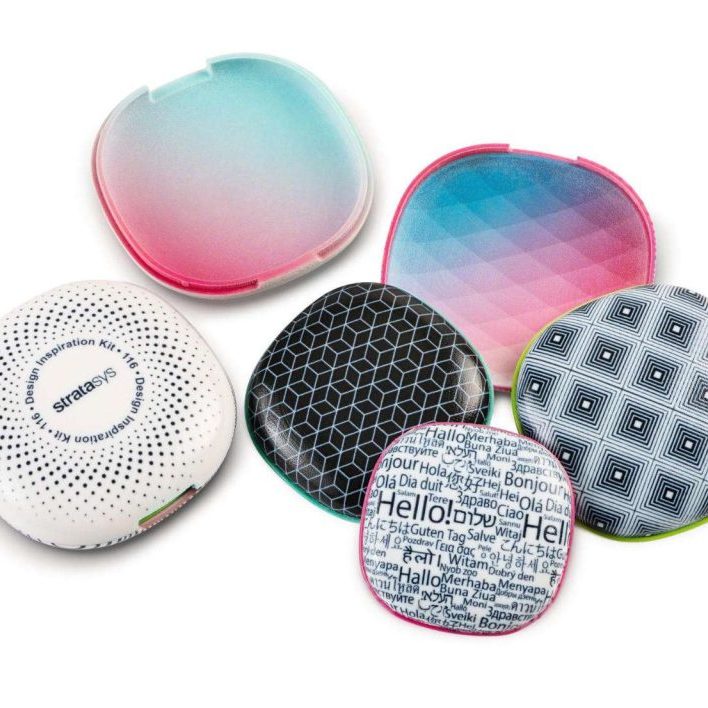

Example Parts

Create high quality color objects with professional, realistic finishes applying sharp graphic and text capabilities.

VeroUltra Opaque Material Profile

Learn more about the benefits of PolyJet printed parts

A new design standard

Color quality in 3D printing has seen continual improvement over the years, yet the VeroUltra family of opaque PolyJet™ materials is a true game changer in the world of design — offering exceptionally high-quality, accurate colors for a wide range of applications.

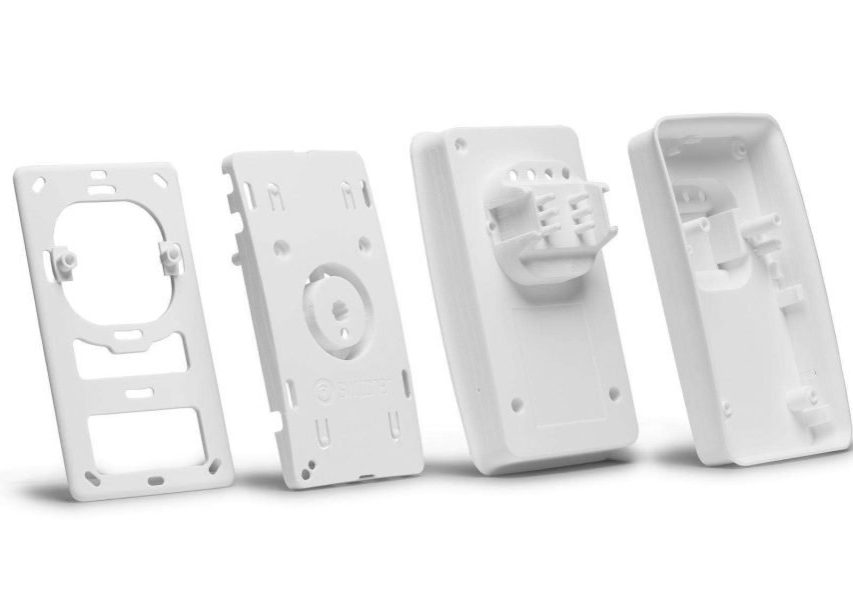

VeroUltra Parts

Main Uses

Create high quality color objects with professional, realistic finishes applying sharp graphic and text capabilities.



VeroUltra Opaque Material Applications

Sales and Marketing presentation models

Consumer Goods

Automotive /Transportation

Testing form, fit and function

Toys / Figurines

Packaging

VeroUltra Opaque Material Specification

Properties and testing results for the 3D printing material

Mechanical PropertyASTMValue
Tensile StrengthD-638-0350 – 65 (7250 – 9430 psi)
Elongation at BreakD-638-055 – 20 %
Modulus of ElasticityD-638-042000 – 3000 MPa (290000 – 435000 psi)
Flexural StrengthD-790-0365 – 85 (9400 – 12300 psi)
Flexural ModulusD-790-042000 – 2800 (290000 – 406100 psi)
HDT, °C @ 0.45 MPa Before PhotobleachingD-648-0648 – 52 ºC (118-126 ºF)
HDT, °C @ 0.45 MPa After PhotobleachingD-648-0744 – 47 ºC (111-117 ºF)
Izod Notched ImpactD-256-0620 – 30 J/m (0.375 – 0.562 ft-lb/in.)
Water AbsorptionD-570-98 24hr1.1 – 1.4%
TgDMA, E»-56 ºC (124-133 ºF)
Shore HardnessScale D83 – 86
Polymerized DensityASTM D7921.19 – 1.23 g/cm3

Advantages of PolyJet Technology

Advantages of parts built with a Stratasys PolyJet Machine

Realistic Parts

Stratasys PolyJet 3D Printers are based on proven technology, which creates precise prototypes that set  the standard for finished-product realism.

Their fine resolution makes complex shapes, intricate details  and smooth surfaces possible.

Precise Models

PolyJet 3D Printing works by jetting layers of liquid photopolymer onto a build tray and instantly curing them with UV light.

The fine layers build up to create a precise 3D model or prototype. Models are ready to handle right out of the 3D printer, with no post-curing needed.

Better ideas, easier sell

PolyJet 3D printed models improve communication and collaboration because they produce amazingly  accurate representations of your ideas that you can share with your team and your clients for a faster, more confident buy-in.

Industries we work with

TriMech services are used in a wide variety of industries

Architecture 3D Printing

Architecture & Construction

  • Model making
  • Urban planning
  • Concepts
Consumer Product 3D printing

High Tech & Consumer Products

  • Aesthetic and function testing
  • Concepts and prototypes
  • Sales and marketing models
Industrial design 3D printing

Industrial Design & Manufacturing

  • Aerospace
  • Automotive
  • Defense
  • Industrial equipment
  • Marine and offshore
  • Oil and gas
Medical 3D printing

Dental, Medical & Life Sciences

  • Anatomical models
  • Medical devices
  • Orthopedics
  • Prosthetics
  • Surgical planning models
Mold tool die 3D printing

Industrial Products, Mold Tool & Die

  • Jigs, fixtures, and assembly tooling
  • Injection molding
  • Silicone molding
  • Sand and investment casting
  • Thermoforming

Interested in VeroUltra Opaque?

Call 888.392.0957 or Upload Your Part
