Stratasys F123 Series

Stratasys F123 3D Printers utilize powerful FDM 3D printing technology and a variety of materials to create production parts fast. Choose from the versatile F170 and F370 3D printers

All-in-one 3D Printer

The all-in-one power of the Stratasys F123 series provides expanded capabilities and unprecedented accessibility.

The two printers in the series include, the Stratasys F170™ and Stratasys F370™, and support a broad range of capabilities and budgets for every stage of prototyping.

Super quiet and office friendly. Reliable, consistent printing ensures less waste. Designed for the way you work, it’s a smart business move.

Stratasys F370

Stratasys F123 Series Features

Large Build Size

Large build size options, up to 14 x 10 x 14 in / 355 x 254 x 355 mm (Stratasys F370 machine), with the ability to build large, dense parts successfully.

Easy Installation and Operation

You can simply plug and play to give your entire office access to professional 3D printing. Fast, easy material change-out, plus auto-calibration ensures you spend less time troubleshooting and more time prototyping.

Office Friendly 3D Printers

Ultra low noise level during building – under 46 dB, similar to a residential refrigerator. Fully enclosed system with auto-locking door for safety while building.

Multiple FDM Production Materials

The Stratasys F123 series gives the option of up to 8 different Fused Deposition Modeling materials (PLA, ABS-CF10, ABS-ESD7, ABS-M30, ASA, PC-ABS, TPU 92A, Diran) along with easy-to-remove soluble support material.

Stratasys F123 Series Benefits

Stratasys F123 hand vac

Versatility & Performance

The Stratasys F123 series lets you print everything from fast, low-cost concept models to durable assemblies. And the Stratasys F123 series gives the option of up to six different materials, along with an easy-to-remove soluble support material.

Create complex parts and assemblies with no compromise on accuracy, detail and repeatability. Even for your earliest design iterations, you can expect Stratasys quality and dependability.

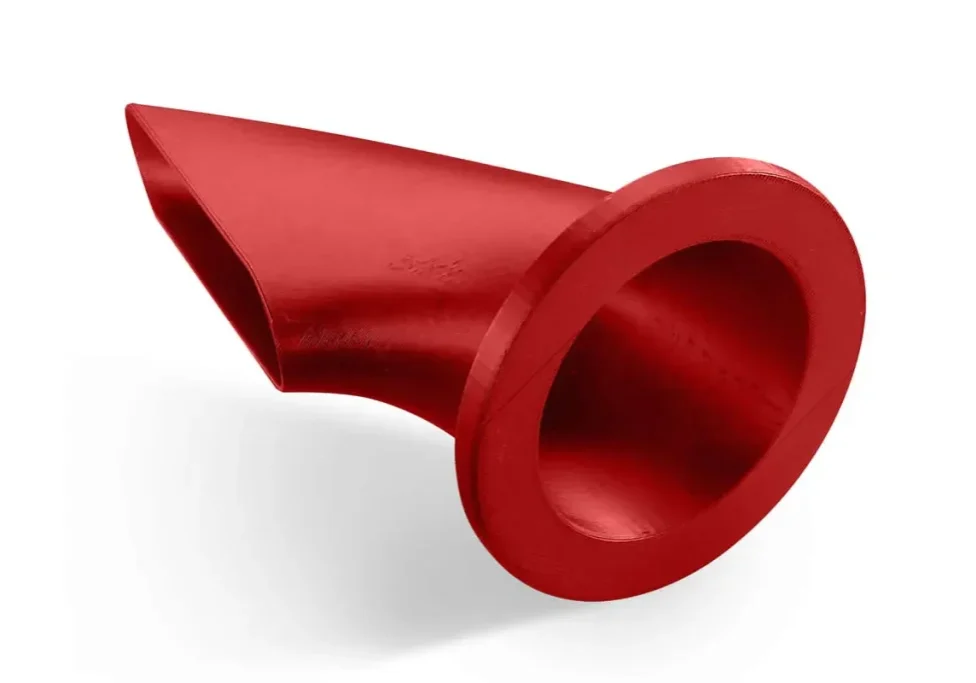

Stratasys F123 auto air duct

More Efficiency

The Stratasys F123 series also features the all-new fast-draft mode to produce initial design concepts quickly and economically. Now you can print twice as fast as standard build mode while consuming just a third of the material on average.

For even more efficiency and savings, choose PLA material. A thermoplastic made from renewable resources, PLA gives you the speed of fast-draft mode while keeping material expenses down. Spend less, create more. That’s smarter 3D printing.

Materials available for the Stratasys F123 Series

ABS-CF10 (Carbon Fiber)

ABS-CF10 (Carbon Fiber)

Production-grade Thermoplastic Stratasys ABS-CF10 combines standard ABS (acrylonitrile butadiene styrene) material with 10% chopped carbon fiber by weight. The result is a low moisture-sensitive FDM® thermoplastic 50% stiffer and 15% stronger than standard ABS 3D...

ABS-ESD7

ABS-ESD7

ABS-ESD7™ is an ABS thermoplastic with static dissipative properties for applications where a static charge can damage products, impair their performance or cause an explosion.

ABS-M30

ABS-M30

ABS-M30™ is up to 25 to 70 percent stronger than standard ABS and is an ideal material for conceptual modeling, functional prototyping, manufacturing tools and production parts.

ASA

ASA

ASA 3D printing material is ideal for parts that are going to be used outdoors. The printed parts are consistently high-quality, with exceptional UV stability.

Diran 410MF07

Diran 410MF07

Diran 410MF07 material is nylon-based mineral-filled 7% by weight. Provides good toughness and impact strength combined with resistance to hydrocarbon-based chemicals.

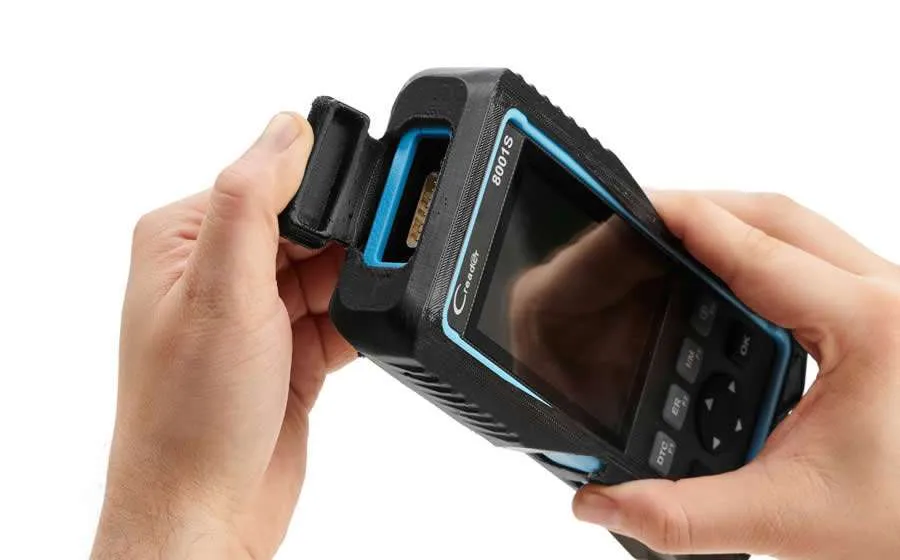

FDM TPU 92A

FDM TPU 92A

FDM TPU 92A is a polyurethane 3D printing material that exhibits high elongation, superior toughness, durability and abrasion resistance.

PC-ABS

PC-ABS

PC-ABS material is one of the most widely used industrial thermoplastics. PC-ABS offers superior strength and heat resistance of PC and the flexibility of ABS.

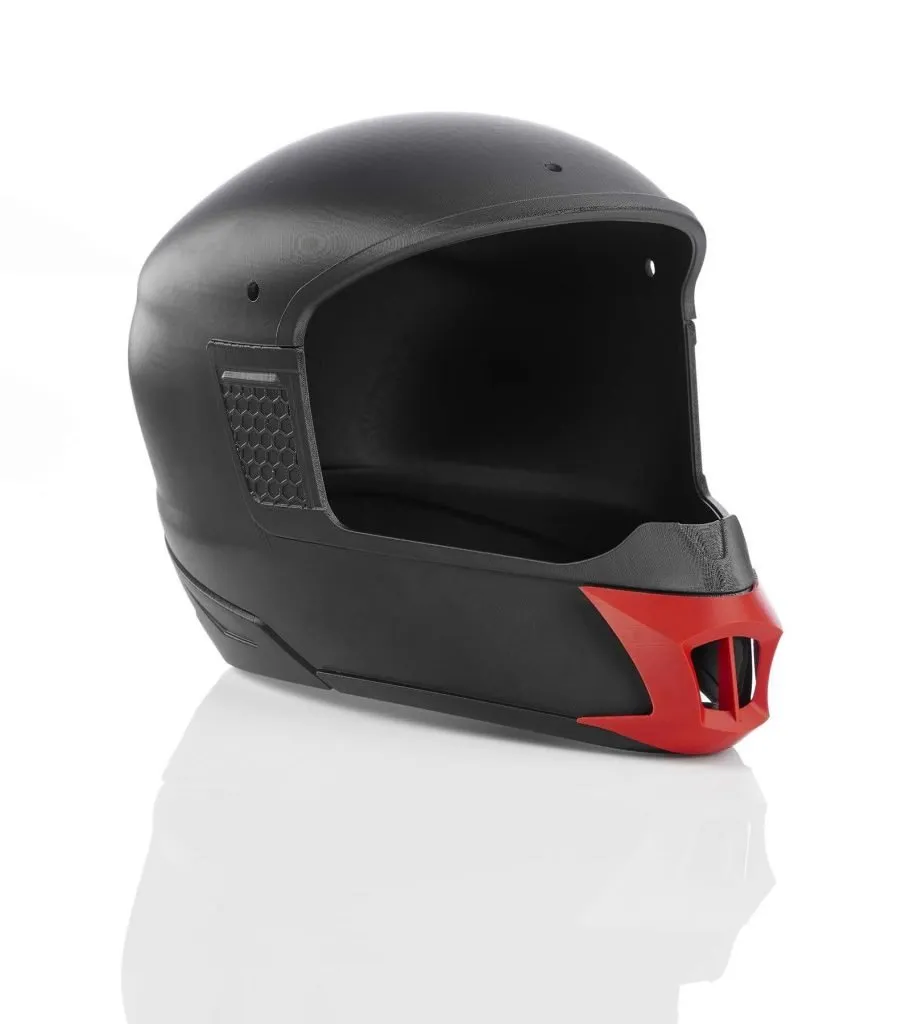

PLA

PLA

PLA is a renewable plastic material for Stratasys 3D printers offered as a low-cost material option for fast-draft part iterations.

Stratasys F123 Series Specifications

FeatureSpecification
Maximum Build Size (XYZ)Stratasys F170: 254 x 254 x 254 mm (10 x 10 x 10 in.)
Stratasys F370: 355 x 254 x 355 mm (14 x 10 x 14 in.)
Model MaterialsStratasys F170: PLA, ABS-CF10, ABS-M30, ASA, TPU 92A, QSR support material
Stratasys F370: PLA, ABS-CF10, ABS-ESD7, ABS-M30, ASA, PC-ABS, TPU 92A, Diran 410 MF07, QSR and Diran support material
System size & weight1626 x 864 x 711 mm (64 x 34 x 28 in.) 227 kg (500 lbs) with consumables
Noise Specification46 dB maximum during build, 35 dB when idle
AccuracyParts are produced within an accuracy of +/- .200 mm (.008 in), or +/- .002 mm/mm (.002 in/in), whichever is greater.
Material Delivery OptionsStratasys F170: 2 material spool bays, 1 for model, 1 for support located in a drawer on the front of the unit
Stratasys F370: 4 material spool bays, 2 for model, 2 for support located in a drawer on the front of the unit
Network ConnectivityWired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector
Wireless: IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP; Encryption: CCMP, TKIP
Software

GrabCAD Print (download): Stratasys F170 and F370
Insight software license: Stratasys F370 only

System RequirementsWindows 7, 8, 8.1 and 10 (64bit only) with a minimum of 4GB RAM (8GB or more recommended)
Operating EnvironmentOperating: Temperature: 59-86ºF (15-30ºC), Humidity: 30-70% RH
Storage: Temperature: 32-95ºF (0-35ºC), Humidity: 20-90% RH
Power Requirements100–132V/15A or 200–240V/7A. 50/60 Hz
Regulatory ComplianceCE, FCC, EAC, EMC (low-voltage directive), TUV, FCC, RC, RCM, RoHs, WEEE, Reach



Layer Thickness0.013 in. (0.330 mm)0.010 in. (0.254 mm)0.007 in. (0.178 mm)0.005 in. (0.127 mm)
PLA
ABS-CF10
ABS-ESD7
ABS-M30
ASA
PC-ABS
TPU 92A
Diran 410MF07

Industries

Stratasys 3D Printers are used in a wide variety of industry applications

Reverse Engineering

  • Product design
  • Customization
  • 3D documentation

Industrial design and manufacturing

  • Reverse engineering
  • Quality control
  • Rapid prototyping
  • Aerospace

Medical and Life Sciences

  • Orthopedics
  • Prosthetics
  • Plastic surgery
  • Custom wheelchairs

Science and education

  • Research
  • Training
  • Online museums

Art and design

  • Heritage preservation
  • Architecture
  • CGI
  • Fashion

Example Parts

Example Fused Deposition Modeling (FDM) prototypes and production parts in a wide range of materials and colors. Pick on the images below to enlarge:

Fused Deposition Modeling (FDM) Technology

Advantages of parts built with a Stratasys FDM Machine

Tough long-lasting parts

High-performance thermoplastics combined with precision extrusion processes let us build strong, long-lasting and dimensionally stable parts;

TriMech production grade FDM solutions provide clients with the best accuracy, repeatability, and material selection of any 3D printing technology.

Used commonly in aerospace, automotive and transportation, manufacturing, and more, this process is helping clients do more, do it better, and do it for less.

Meet production demands

TriMech FDM production systems are as versatile and durable as the parts they produce.

With the largest full-convection build envelopes and material capacities in their class, we can provide longer, uninterrupted build times, bigger parts and higher quantities than other additive manufacturing service providers.

In combination with our material portfolio, we are challenging the limits of what can be done with FDM technology.

Gain new possibilities

TriMech’s FDM specialists will help to streamline your business processes from design through manufacturing, eliminating the need for physical inventories and moving beyond the limitations of traditional manufacturing, whilst offering unparalleled efficiency, design freedom, and production agility.

Leverage the best solution on the market without the capital expense of in-house equipment: we deliver a tailored service, combining 20+ years of experience with industry-leading FDM technologies. Regardless of industry, we’ll help optimize timelines, costs, and approach.

Manufacture Yourself

Contact us about a Stratasys F123 Series 3D Printer

Call 888.874.6324 to speak to an expert

We Can Manufacture For You

Use our 3D Printing Service to make your parts

Call 888.392.0957 to speak to an expert
