Stratasys J8 Series

The Stratasys J8 Series (J850 Pro, J850 Prime and J826 Prime) features multiple versatile, multi-material 3D printers powered by PolyJet Technology™.

Unmatched product realism

The Stratasys J8 Series deliver unrivaled aesthetic results with full-color capability including texture mapping and color gradients.

This lets you create prototypes that look and feel like real products, and accurately show design intent in color, material and finish.

The J8 Series provides the PANTONE Matching System (PMS) color system in a 3D printing solution.

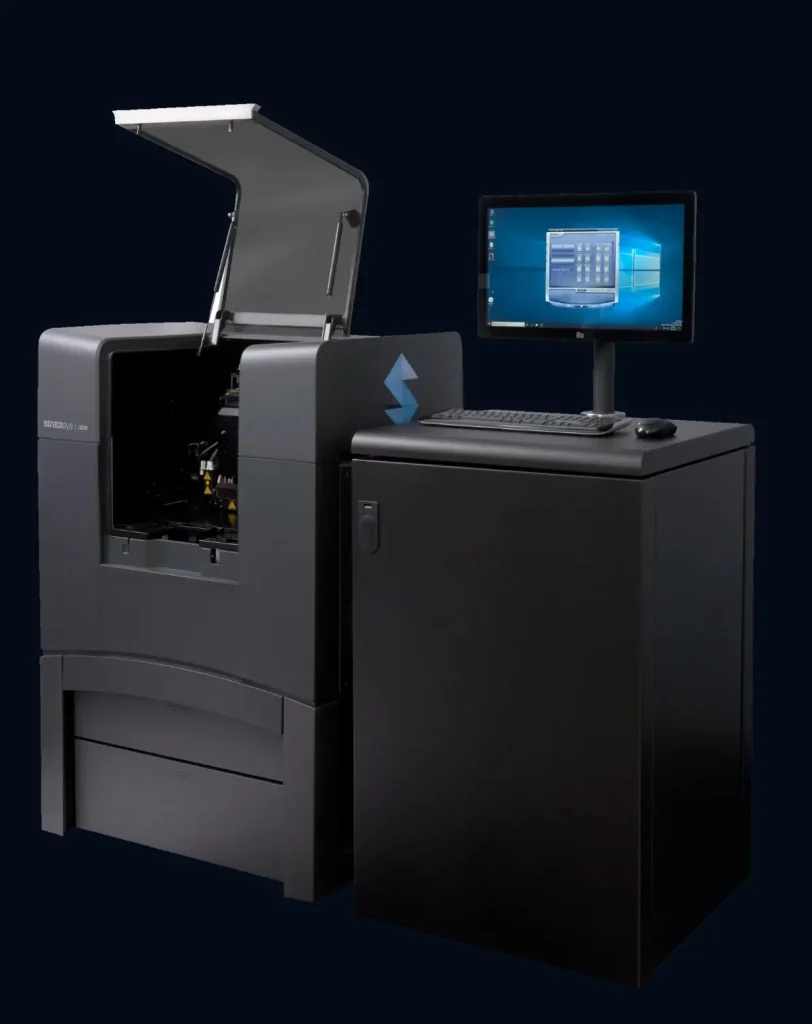

Stratasys J8 machine

Stratasys J8 Series Features

Amazing Color

With extensive true-to-life PANTONE Matching System (PMS) color options, you can integrate vibrant colours into multi-material models. Also, mimic textures such as leather, wood, etc. No other 3D printer offers this level of final product realism.

Easy Installation and Operation

New seven material cabinet and 4kg cartridge.  Avoid downtime associated with material changeovers; print more complex parts.

Print with Exceptional Detail

Microscopic drops are jetted in super-thin layers of just 20-85 microns for features below 50 mm; up to 200 microns for full model size (for rigid materials only).

Wide variety of Materials

Unlimited number of composite materials including over 500,000 colors. You can print with opaque, clear, flexible and rigid material.

Stratasys J8 Series Benefits

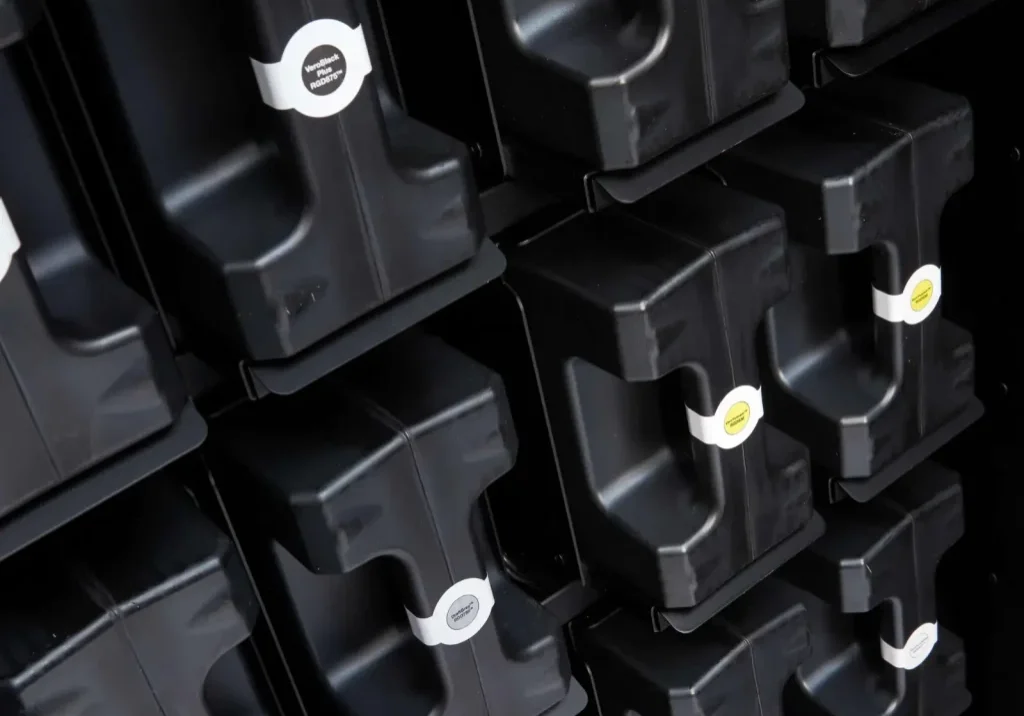

Stratasys J8 material cabinet

Faster Workflow

The large, seven-material capacity of the Stratasys J850 means you can load your most used resins and avoid downtime associated with material changeovers.

Multiple print modes let you adjust the speed and quality of the print to meet your specific needs. For the fastest creation of concept models, use Super High Speed mode with DraftGrey™ material. Additional print modes support multiple materials and higher print resolutions.

The J8 Series also features two support material options: SUP705™, removed with a water jet, and SUP706B™, which is soluble and easily removed for automated post-processing and increased geometric freedom to print complex and delicate features and small cavities.

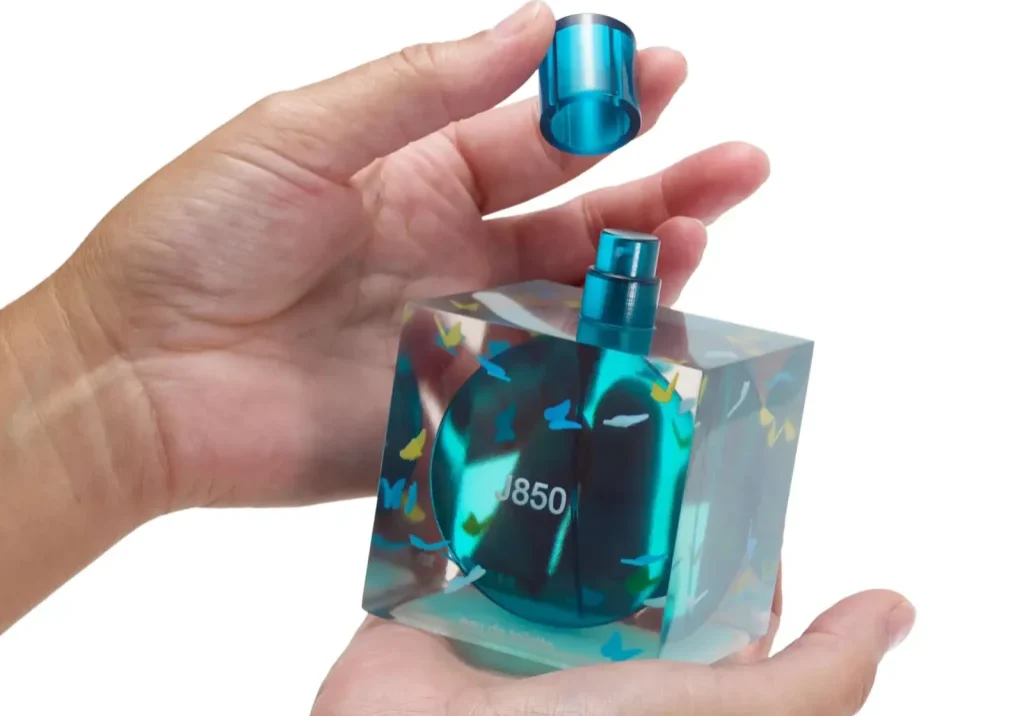

Stratasys J8 prototype

Unparalleled Capability

The J8 Series provide unmatched capability to achieve maximum realism for 3D printing applications in the consumer product, medical and educational disciplines. The printers’ vast array of colors and material properties, from rigid to flexible and opaque to transparent, eliminate the need to use multiple processes to create realistic prototypes and models.

Leverage the capability to combine seven different materials in a single part for unprecedented combinations of color, transparency and flexibility.

Nearly 2,000 colors from the PANTONE® Formula Guide Solid Coated and all of the PANTONE® SkinTone™ colors let you design and print color-critical parts with confidence.

Stratasys J8 model

Freedom to Perfect

Making design decisions that will give you the edge over your competition is easier and faster than ever before. The J8 Series 3D printers offer twice the material capacity, four times the number of jets and four times the speed of most printers on the market.

Research, test, and present your idea multiple times in one product cycle, all with unmatched realism. With 3D printing, you can perfect a prototype that looks like the real thing, for ultimate customer buy-in and a better end product.

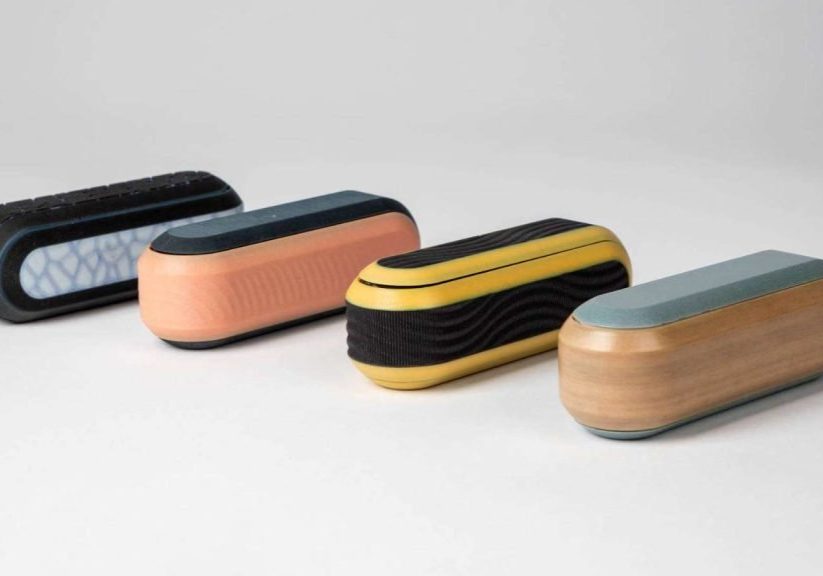

Smart Speaker Iterations

PANTONE Validated

These 3D printers are PANTONE Validated™ making the PANTONE MATCHING SYSTEM (PMS) colors available in a 3D printing solution.

With expansive color combinations to choose from and multi-material capability, the Stratasys J8 Series printers let you create the most realistic models and prototypes in the shortest time possible, without the need for painting or assembly

Materials available for the Stratasys J8 Series

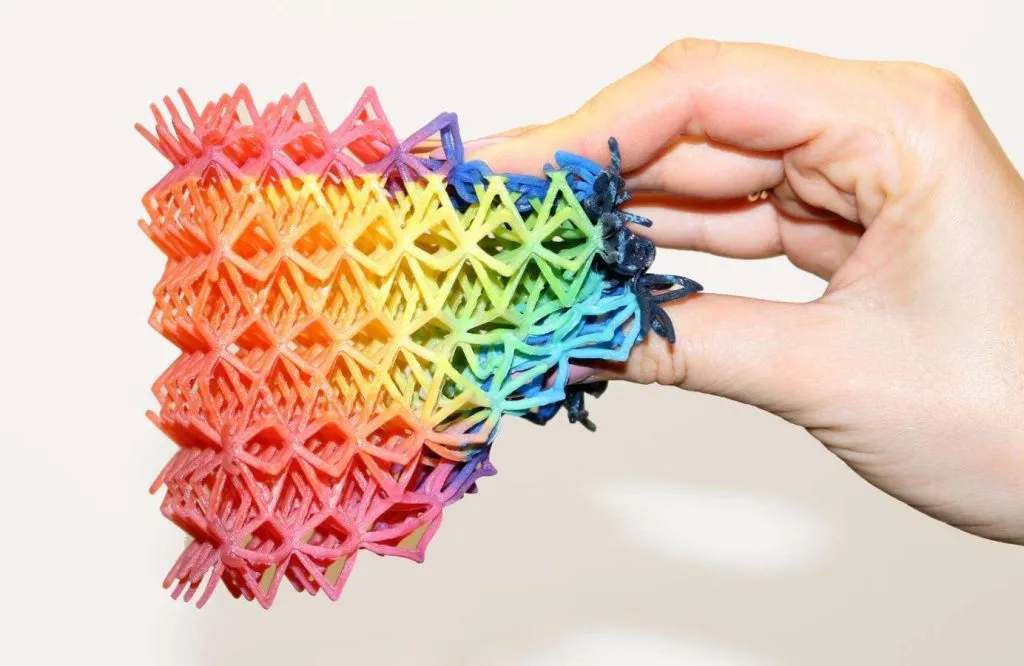

Agilus30

Agilus30

Agilus30 is a superior Rubber-like material from the PolyJet™ photopolymer family ideal for advanced design verification and rapid prototyping.

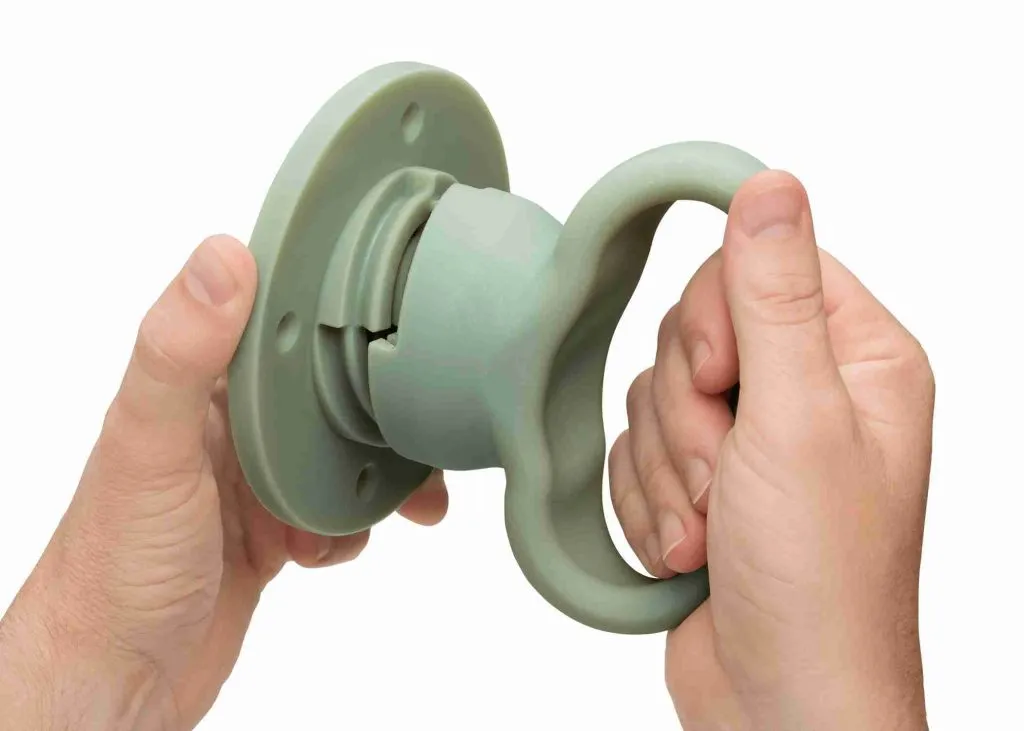

Digital ABS Plus

Digital ABS Plus

Digital ABS Plus is designed to simulate standard ABS plastics by combining high-temperature resistance with toughness, impact resistance and shock absorption.

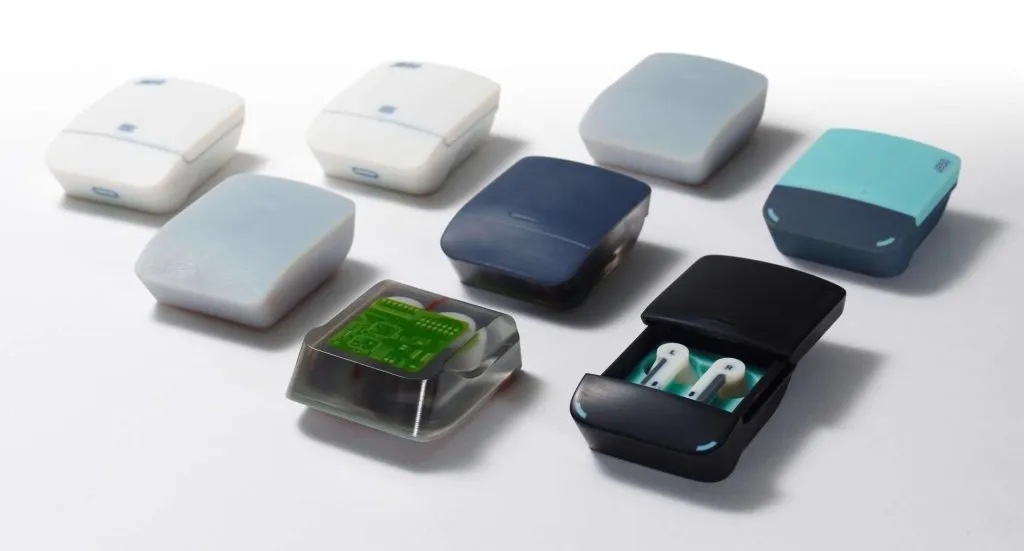

DraftGrey

DraftGrey

%title% is a rigid material used exclusively with Stratasys 3D Printing Super High Speed print mode for concept modeling.

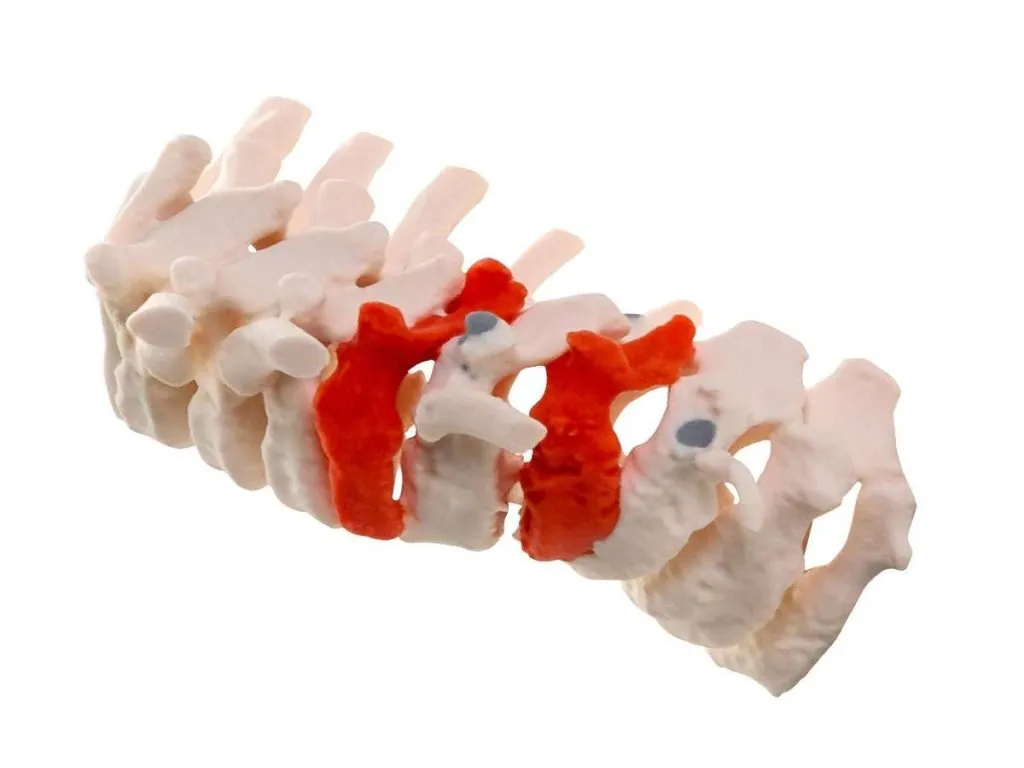

DraftWhite (MED857)

DraftWhite (MED857)

The DraftWhite™ (MED857) is a rigid white material, targeted for single-material medical applications such as orthopedics and craniomaxillofacial.

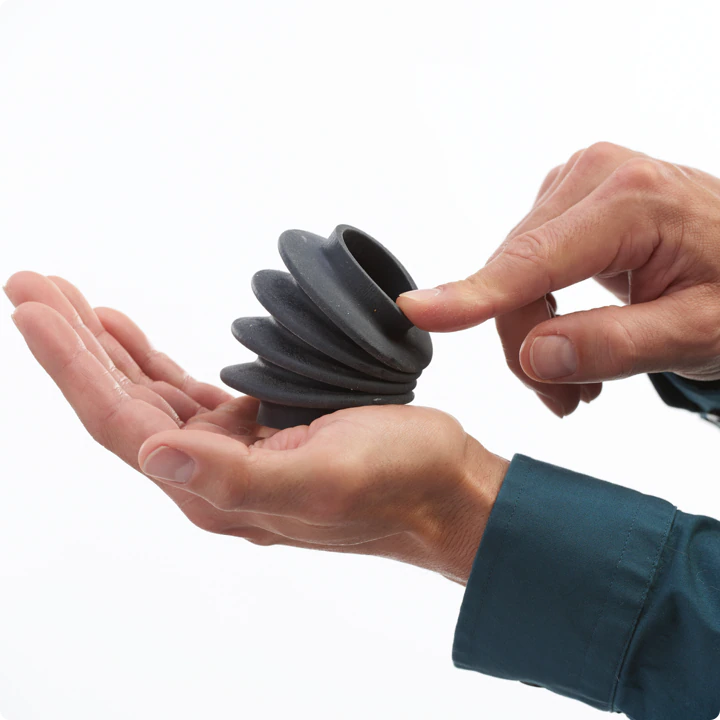

Elastico

Elastico

Elastico™ is a superior rubber-like PolyJet™ photopolymer ideal for advanced design verification and rapid prototyping.

Stratasys J8 Series Specifications

Feature
Model Materials

J826 Prime and J850 Prime:

  • Vero™ family of opaque materials including neutral shades and vibrant VeroVivid™ colors
  • Agilus30™ flexible material
  • Transparent VeroClear™ and VeroUltraClear
  • digital material
  • VeroUltra™ White/Black

J850 Pro:

  • Vero family of opaque materials in neutral
    shades (black, white and gray)
  • Agilus30 flexible material
  • Transparent VeroClear and VeroUltraClear
  • digital material
  • VeroUltra™ White/Black
Digital Model Materials

J826 Prime and J850 Prime:
Unlimited number of composite materials
including:

  • Over 500,000 colors
  • Digital ABS Plus and Digital ABS2 Plus in ivory
  • Rubber-like materials in a variety of Shore A
    values
  • Translucent color tints

J850 Pro Composite materials including:

  • Digital ABS Plus and Digital ABS2 Plus in ivory
  • Rubber-like materials in a variety of Shore A values
  • Translucent color tints
Support MaterialsSUP705 (WaterJet removable)
SUP706B (soluble)
Build SizesJ826 Prime: 255 x 252 x 200 mm (10 x 9.9 x 7.9 in.)
J850 Pro/Prime: 490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)
Layer ThicknessHorizontal build layers down to 14 microns (0.00055 in.) 55 microns (0.002 in.) in Super High Speed mode
Workstation CompatibilityWindows 10
Network ConnectivityLAN – TCP/IP
System Size and WeightJ826 Prime System: 820 x 1310 x 665 mm (32.28 x 51.57 x 26.18 in.); 234 kg (516 lbs.)
J826 Prime Material Cabinet: 1119 x 656 x 637 mm (44 x 25.8 x 25.1 in.); 153 kg (337 lbs.)
J850 Pro/J850 Prime System: 1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)
J850 Pro/J850 Prime Material Cabinet: 1119 x 656 x 637 mm (44 x 25.8 x 25.1 in.); 153 kg (337 lbs.)
Operating ConditionsTemperature 18 – 25 °C (64 – 77 °F); relative humidity 30-70% (non-condensing)
Power Requirements100–120 VAC, 50–60 Hz, 13.5 A, 1 phase 220–240 VAC, 50–60 Hz, 7 A, 1 phase
Regulatory ComplianceCE, FCC, EAC
SoftwareGrabCAD Print
Build SizesHigh Quality: up to 7 base resins, 14-micron (0.00055 in.) resolution
High Mix: up to 7 base resins, 27-micron (0.001 in.) resolution
High Speed: up to 3 base resins, 27-micron (0.001 in.) resolution
Super High Speed: 1 base resin, 55 micron (0.002 in.) resolution
Build ModesHigh Quality: up to 7 base resins, 14-micron (0.00055 in.) resolution
High Mix: up to 7 base resins, 27-micron (0.001 in.) resolution
High Speed: up to 3 base resins, 27-micron (0.001 in.) resolution
Super High Speed: 1 base resin, 55 micron (0.002 in.) resolution
AccuracyFor J826 Prime: Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm – ±100μ; above100 mm – ±200μ.
For J850 Pro/Prime: Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm – ±100μ; above 100 mm – ±200μ or ± 0.06% of part length, whichever is greater.

Industries

Stratasys 3D Printers are used in a wide variety of industry applications

Reverse Engineering

  • Product design
  • Customization
  • 3D documentation

Industrial design and manufacturing

  • Reverse engineering
  • Quality control
  • Rapid prototyping
  • Aerospace

Medical and Life Sciences

  • Orthopedics
  • Prosthetics
  • Plastic surgery
  • Custom wheelchairs

Science and education

  • Research
  • Training
  • Online museums

Art and design

  • Heritage preservation
  • Architecture
  • CGI
  • Fashion

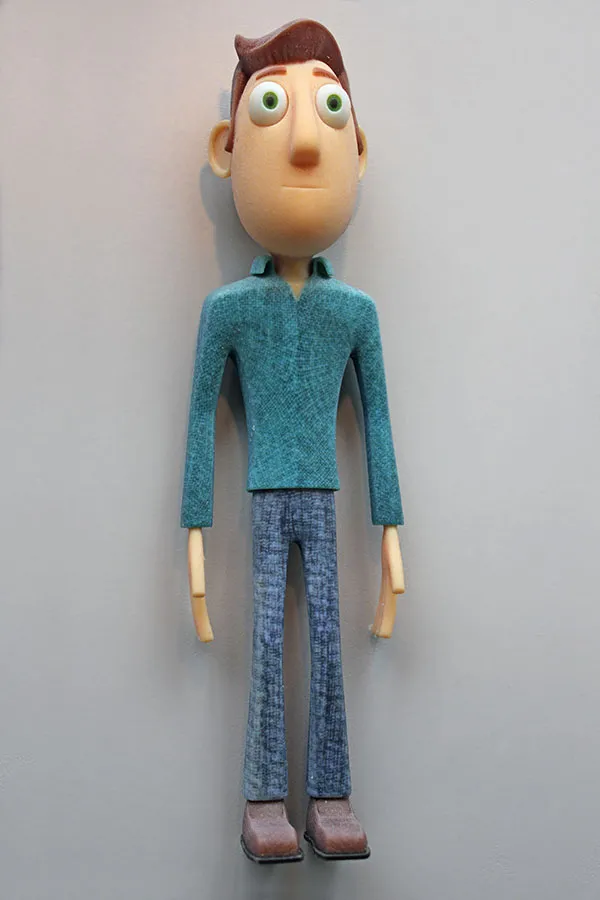

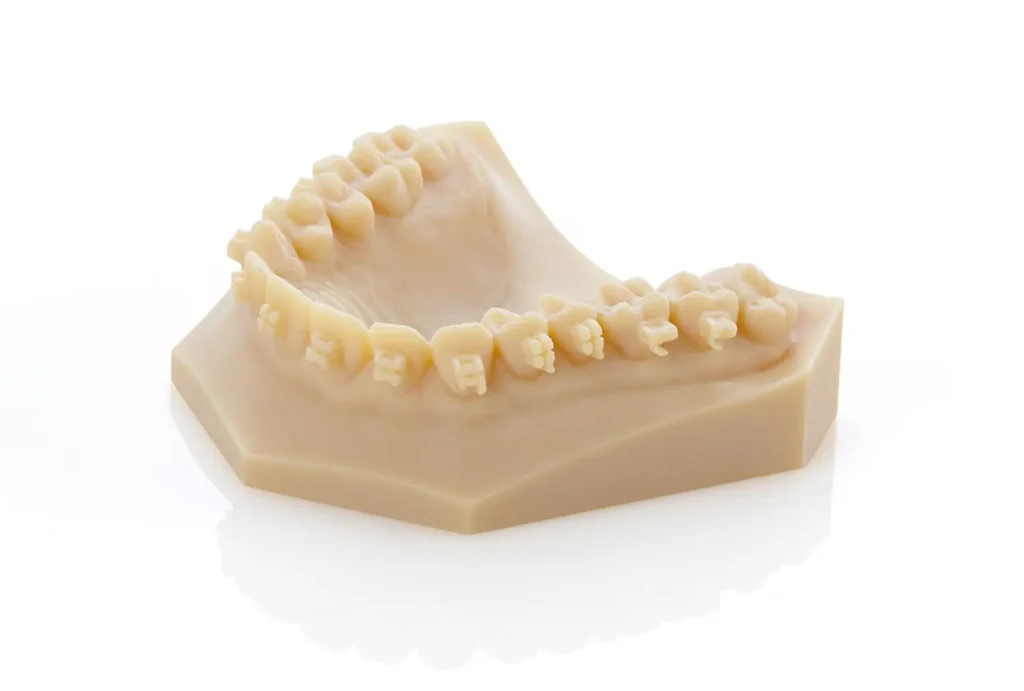

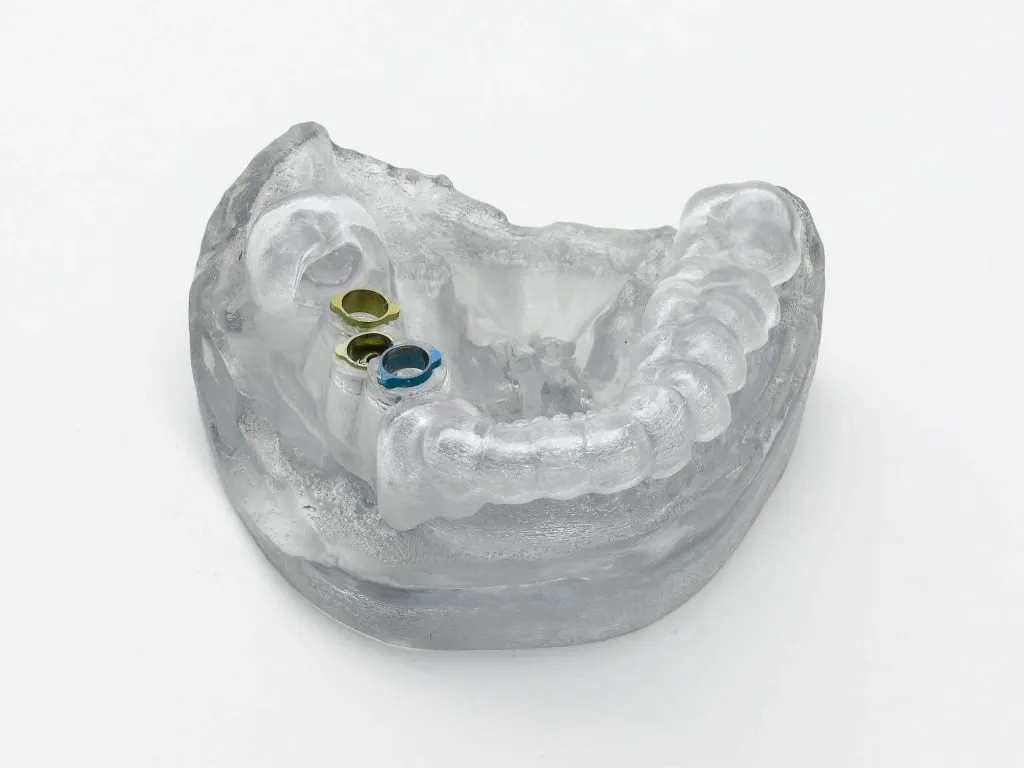

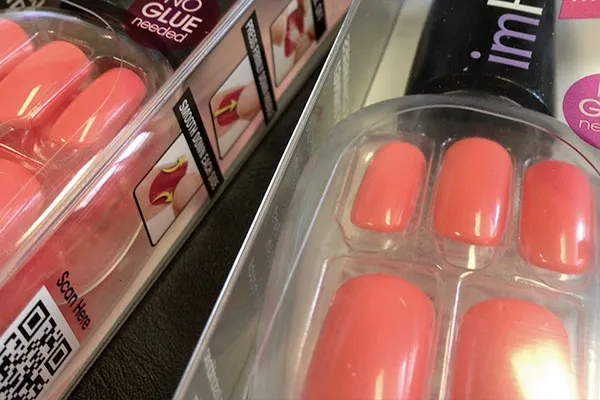

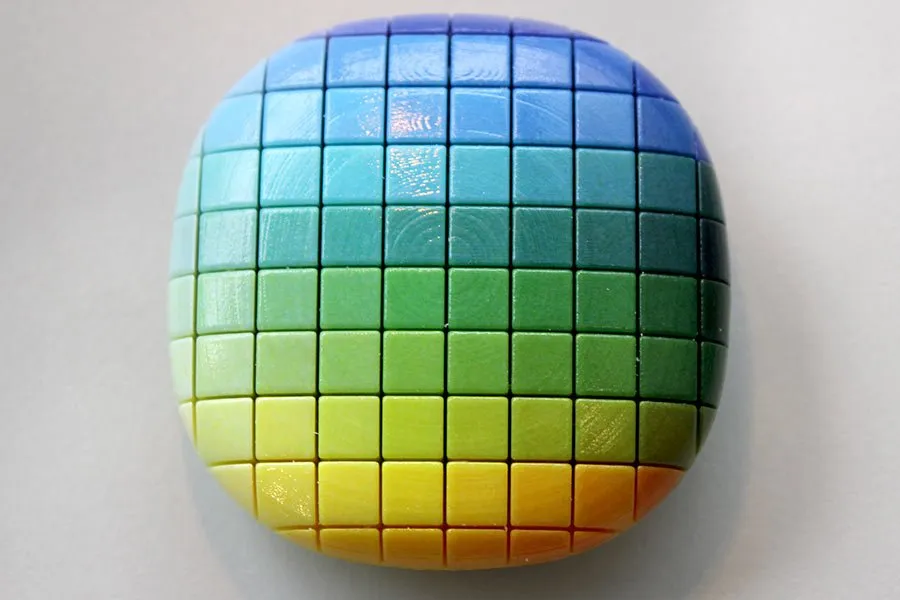

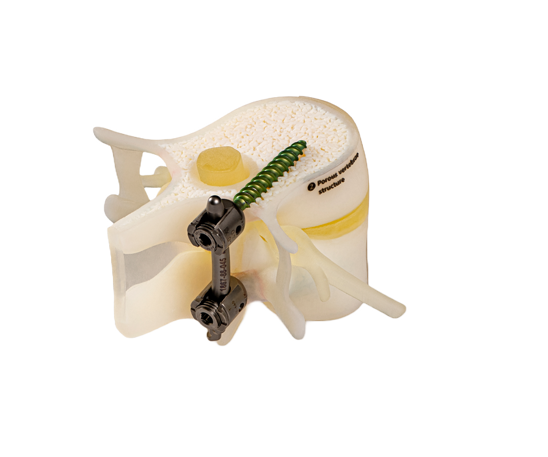

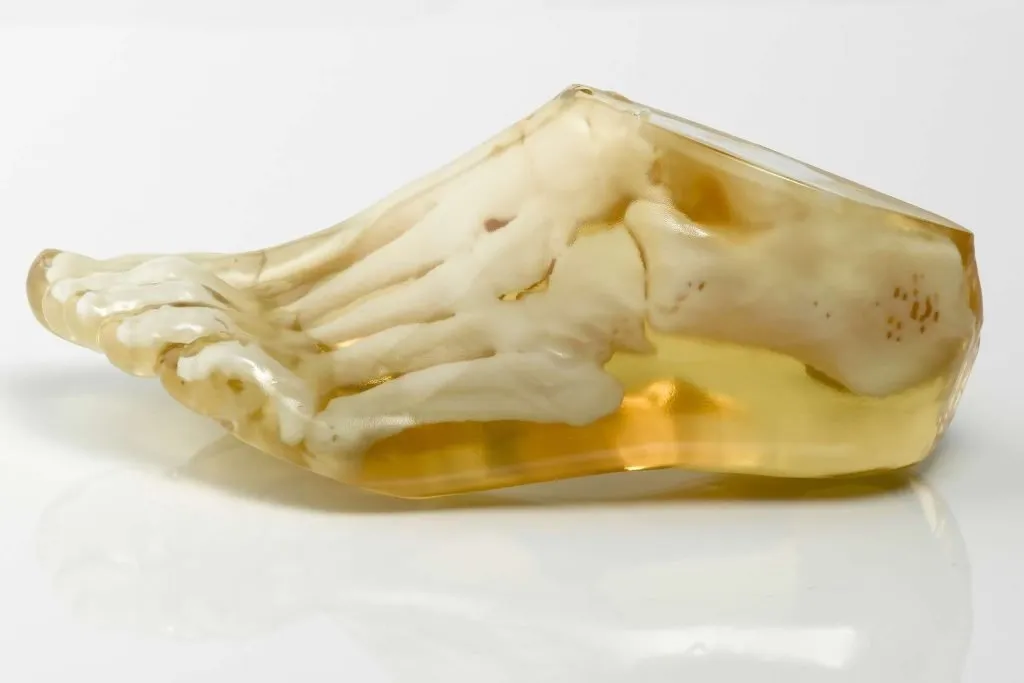

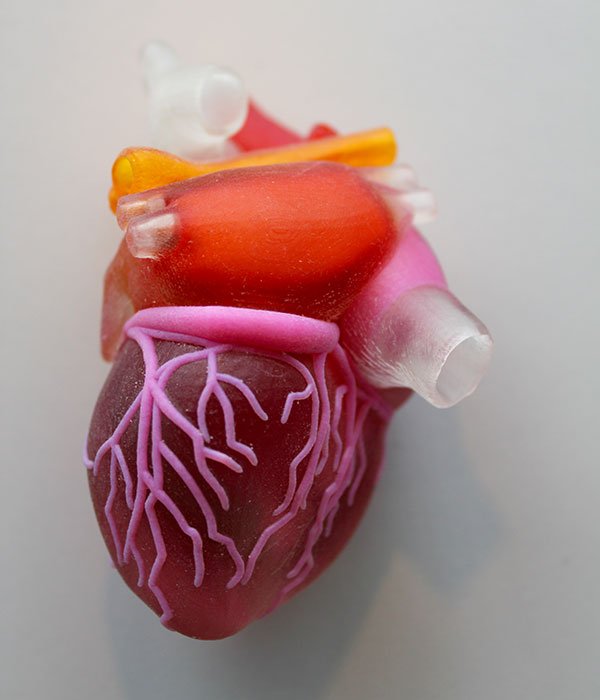

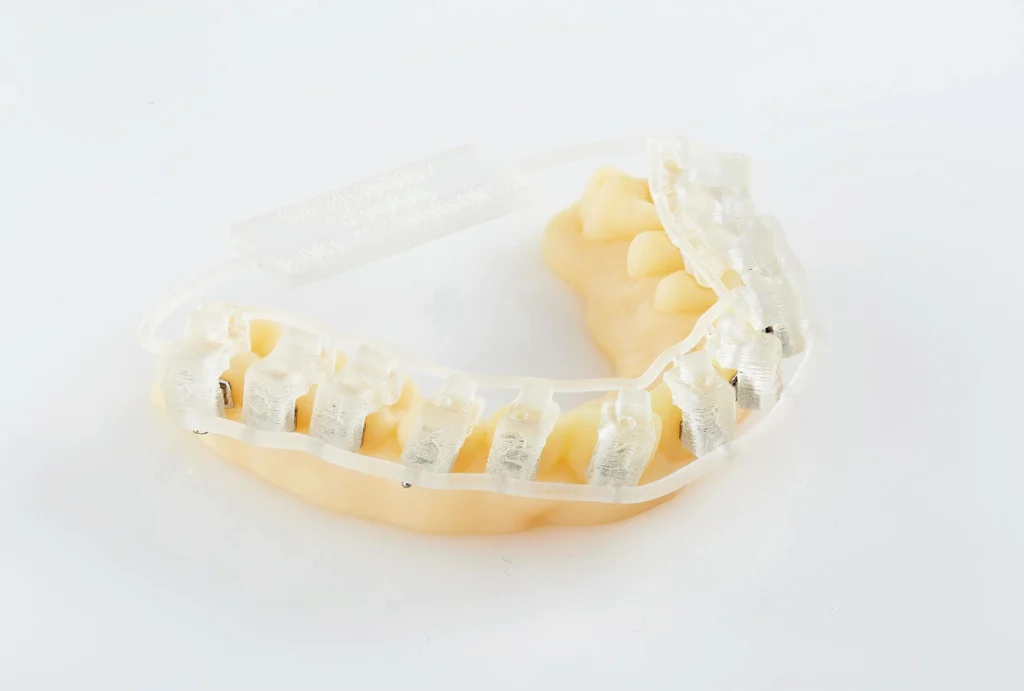

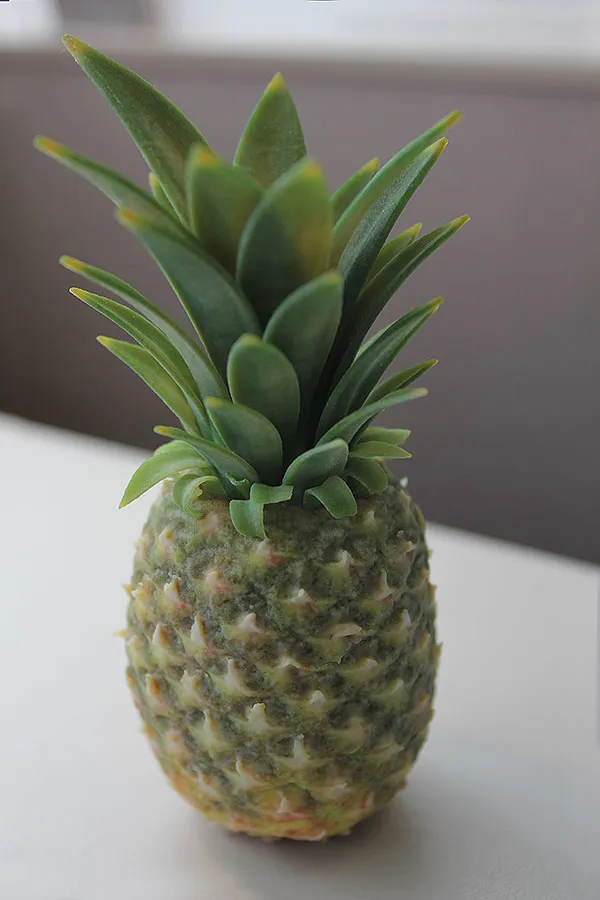

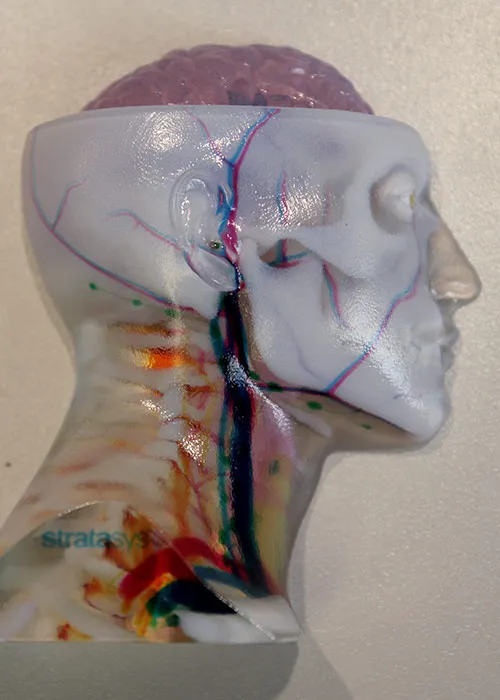

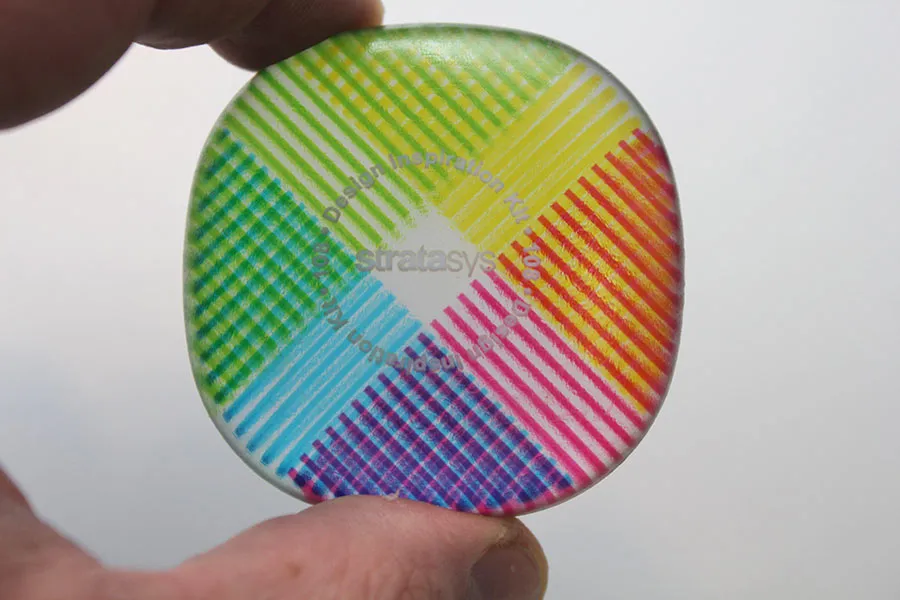

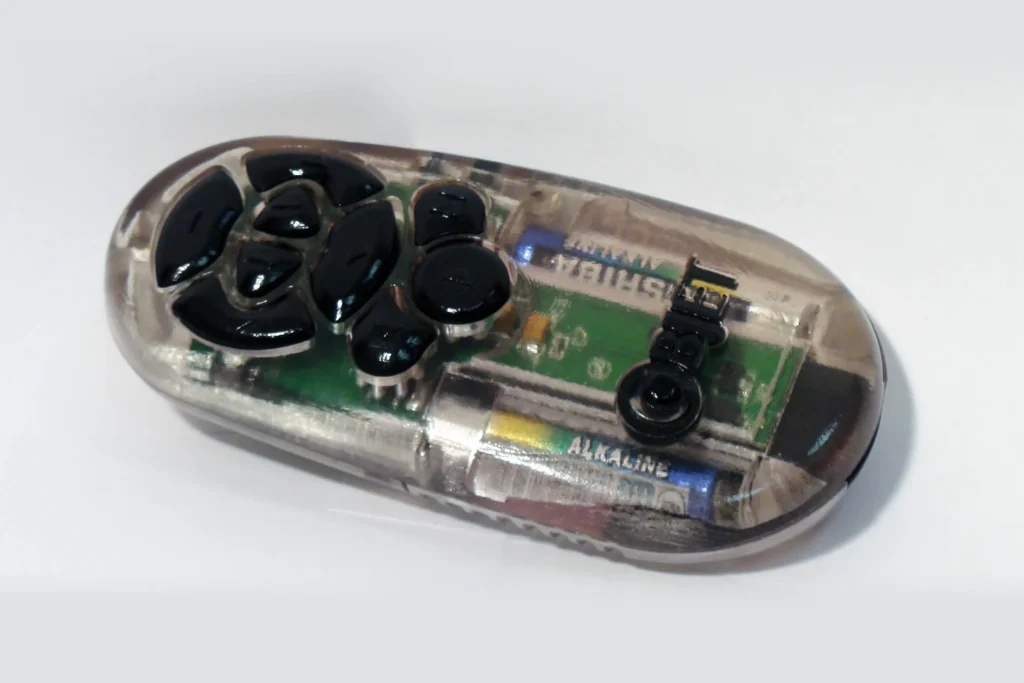

Example Parts

Example PolyJet prototypes and production parts in a wide range of materials, colors and finishes. Pick on the images below to enlarge:

Advantages of PolyJet Technology

Advantages of parts built with a Stratasys PolyJet Machine

Realistic Parts

Stratasys PolyJet 3D Printers are based on proven technology, which creates precise prototypes that set  the standard for finished-product realism.

Their fine resolution makes complex shapes, intricate details  and smooth surfaces possible.

Precise Models

PolyJet 3D Printing works by jetting layers of liquid photopolymer onto a build tray and instantly curing them with UV light.

The fine layers build up to create a precise 3D model or prototype. Models are ready to handle right out of the 3D printer, with no post-curing needed.

Better ideas, easier sell

PolyJet 3D printed models improve communication and collaboration because they produce amazingly  accurate representations of your ideas that you can share with your team and your clients for a faster, more confident buy-in.
