Revolutionizing Automated Resin Cleaning
This large format resin removal solution integrates advanced software, hardware, and proprietary chemistry to achieve optimal resin cleaning, making it a game-changer in high-volume applications.

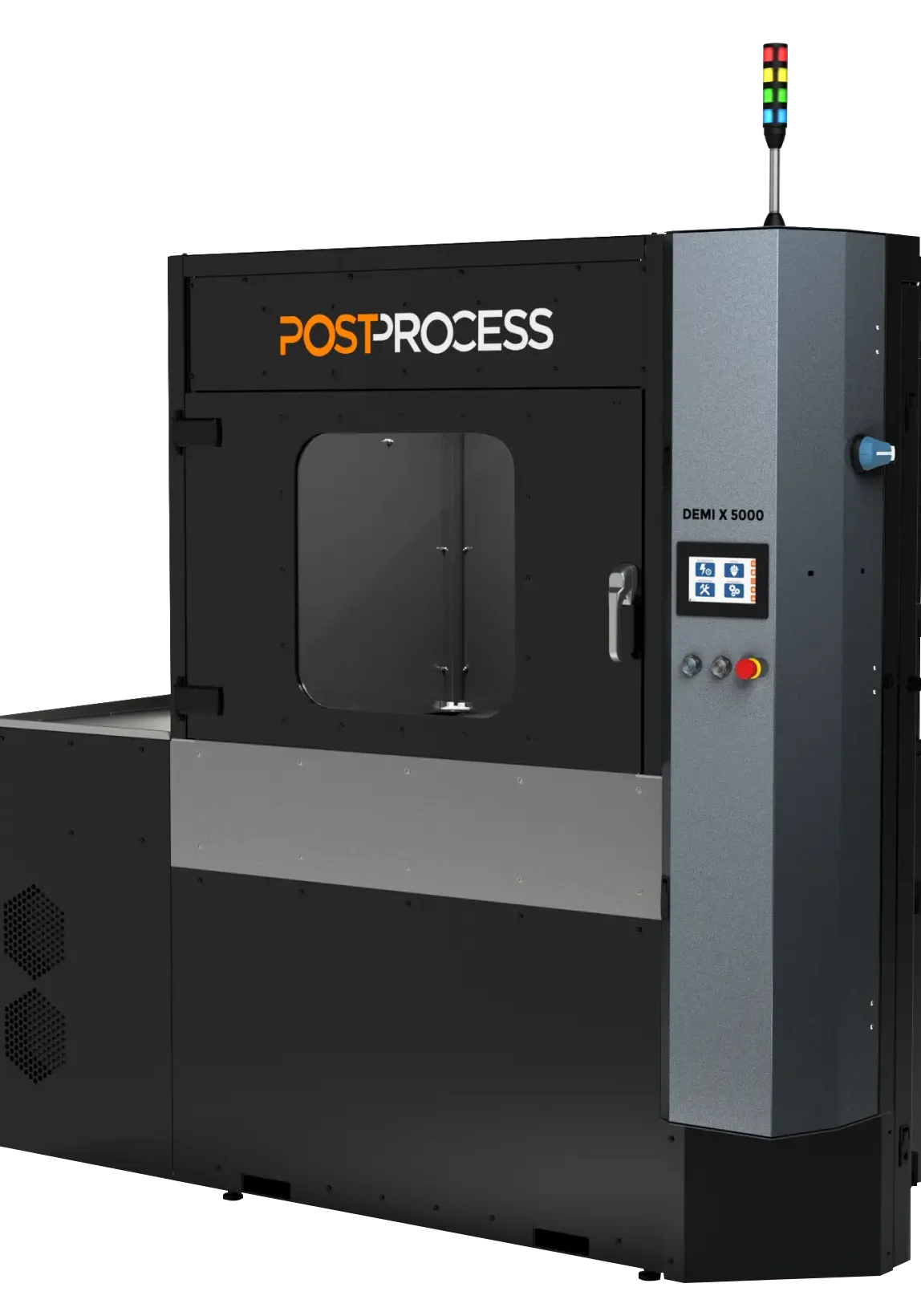

PostProcess DEMI X 5000 Features
Engineered to meet the growing demand of customers 3D printing large-scale SLA parts:
PostProcess DEMI X 5000 Benefits
Increased Productivity
Designed to process large SLA build parts in 10 minutes or less for significant labor time savings.
Increased Throughput
Dual agitation flow delivers both vertical & horizontal vortex for superior resin removal especially with complex parts with hidden & concave surfaces.
Enhanced Safety & Optimal Sustainability
Resin removal chemistry offers an exceedingly safer flashpoint and increased longevity compared to IPA and other solvents. Improves sustainability efforts with 10x reduced waste generation compared to IPA.
Software Driven
The AUTOMAT3D® digital platform allows for one-touch operation with full customization, recipe storage and repeatability for complex parts.
Why you need a Support Removal Solution
3 Advantages of using an automated Support Removal Solution for 3D printed parts
1. Consistent Results
PostProcess ensures that supports on every part are consistently and completely removed — no breakage and no missed supports. Reliability that each part will be identical all the time, every time.
2. Reduced Cleaning Time
Whether production is in the tens, the hundreds or the thousands, throughput is crucial. PostProcess reduces the cycle time for removing supports and eliminates the manual post-printing ‘bottleneck’.
3. Greater Productivity
The PostProcess DEMI X 5000 can work on numerous printed parts simultaneously. Enabling companies to focus on higher-value activities.
PostProcess Technologies Resources
PostProcess DEMI X 5000 Specifications
| Category | Specifications |
|---|---|
| Electrical Requirements | US: 240 Volt, 30 Amp, 3‑Phase EU: 230 Volt, 30 Amp, 3‑Phase |
| Envelope Capacity | 35″ L × 35″ W × 25″ H (89 × 89 × 63.5 cm) |
| Lift Capacity | 200 lbs (90 kg) |
| Consumables Used | PLM‑403‑SUB IPA‑free resin removal workflow with AUX‑400‑RINSE as final rinse step Note: Rinse step must be performed in a separate container, not in PostProcess hardware |
| Consumables Capacity | 275 gallons (1,041 liters) |
| Machine Dimensions | Doors Closed: 94″ L × 42.6″ W × 84.5″ H (239 × 108 × 215 cm) Doors Open w/ light: 132″ L × 92″ W × 99.5″ H (336 × 233 × 253 cm) |
| System Weight | Empty: Approx. 2,073 lbs (940 kg) Full: Approx. 4,370 lbs (1,982 kg) |
| System Warranty | 12 months on‑site service and support (per PostProcess Technologies conditions of sale) |
| Environmental Requirements | Temperature Range: 5–40°C (41–104°F) |
| Software | AUTOMAT3D, Windows 10 |
| Regulatory Conformity | CE, SGS |
| Features & Options | Dual agitation flow for superior resin removal Adjustable tilt mechanism Customizable settings with recipe storage Detergent up to 10× longevity over IPA |
| Safety Features | Emergency stop Auto power down Safety‑interlocked door |
| Connectivity | USB Port: USB 3.1 Ethernet: Fully compliant with IEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Material Compatibility | All Vat Photopolymerization resins (rigid, elastomeric, high‑temperature, composite‑filled) |
| Printer Compatibility | Compatible with all large‑format printers including Stratasys, 3D Systems, UnionTech, and others |
